Tiny's LEDs Unity Mini F7 Flight Controller v1.1

NEW UPDATES!!

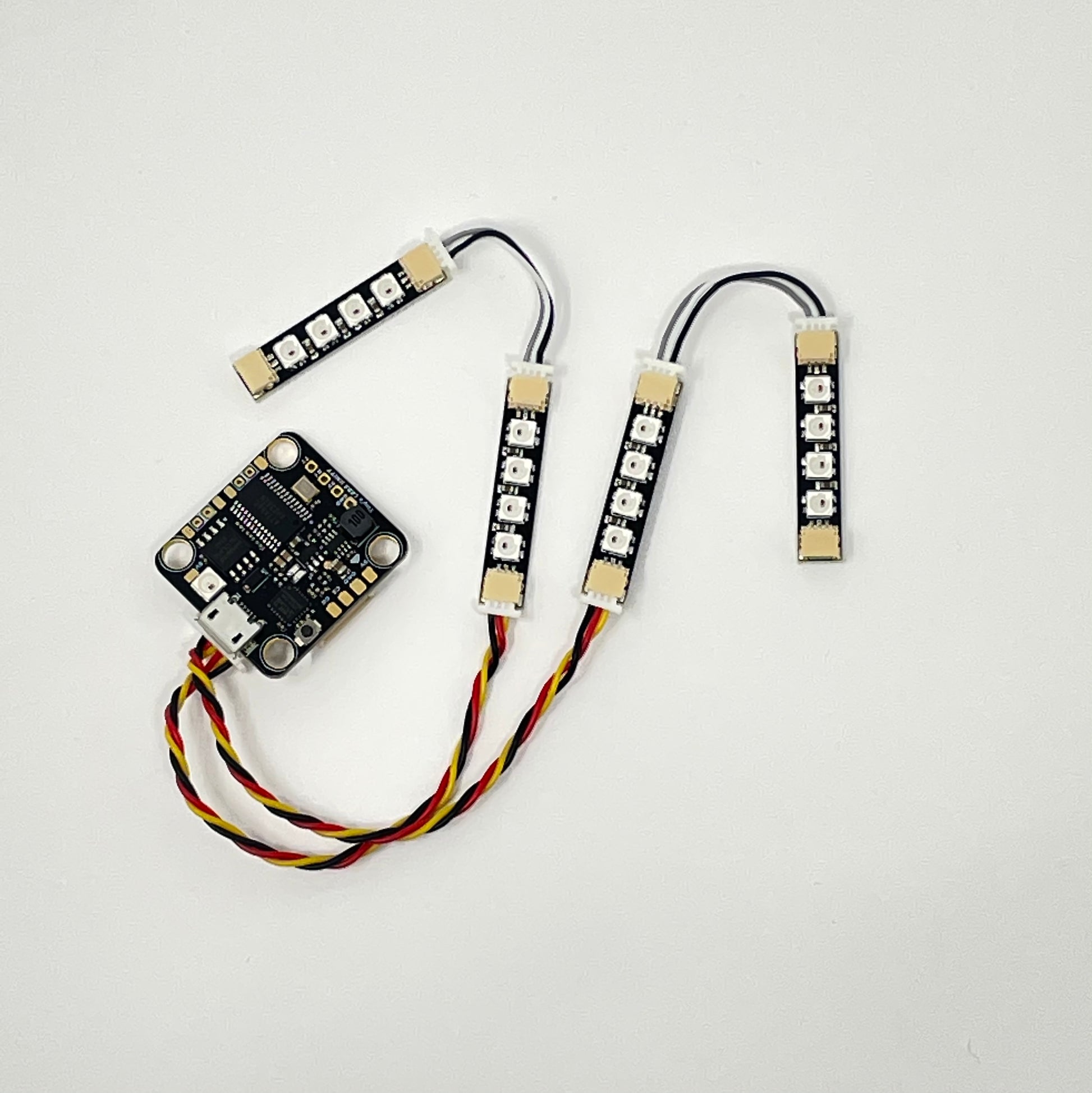

LED connector: Add 2 leds to your build easy with built in LED connector and cables. Fits all Tiny's LEDs Rainbow series (With or without connectors)   LED CONNECTOR IS UNDER USB port. DO NOT PLUG ESC INTO THIS CONNECTOR.

Buzzer pads moved to end of main LED connector. Wires included to easily wire up buzzer. Just plug in the buzzer wires included.

Easy Placement reminders on which side components go. mount Pin headers to cover the White blocks for VTX and Receiver.

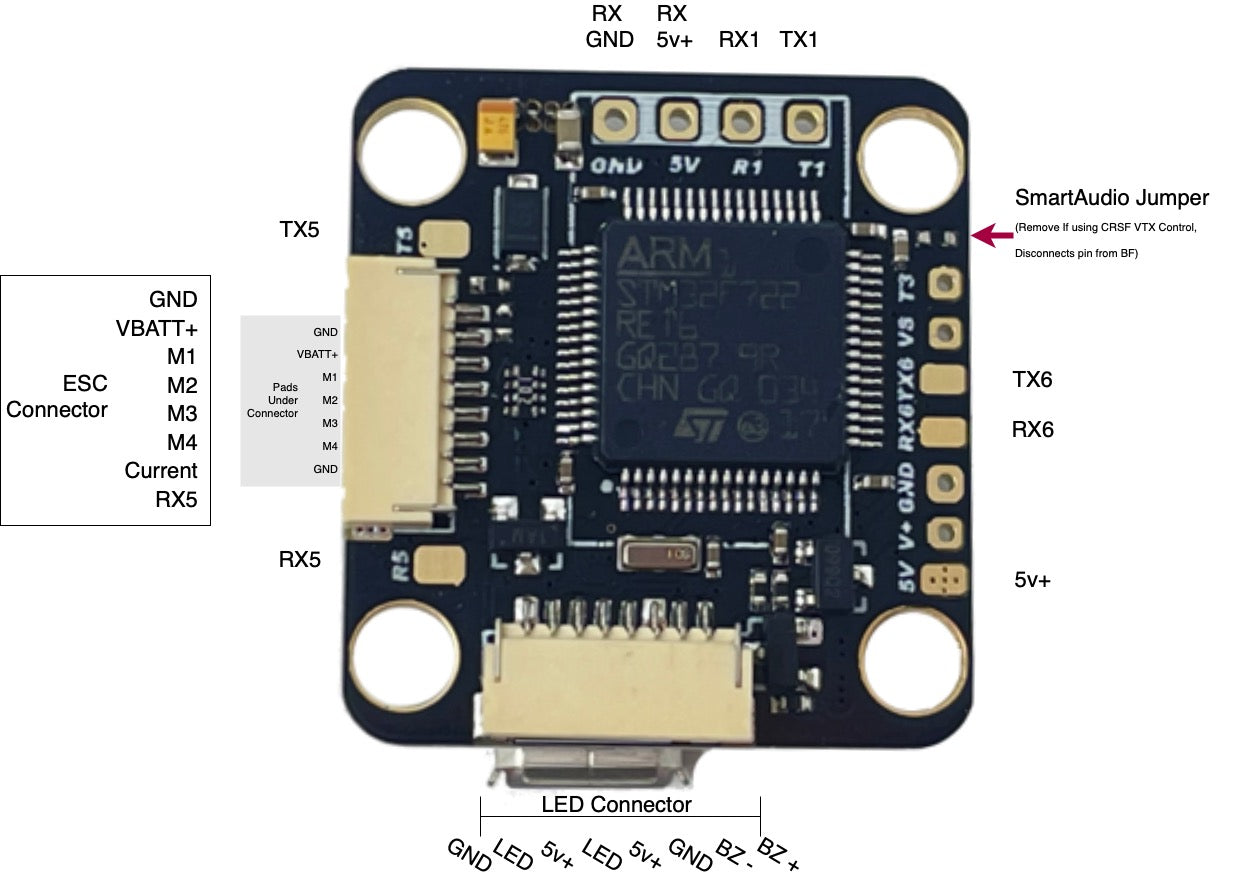

Smart Audio Solder bridge to remove FC connection to SmartAudio pin. (this is utilized if you want to control vtx with CRSF protocol. Featured only on Crossfire and Tracer Nano RXs. Remove bridge to disconnected from FC TX3 pin.

LED Bundle Option Will Add option to include pack of LEDs  in bundles. You will get 1x pack of 4 Tiny Rainbow V2 with wires.

Best Options: Tiny Rainbow 4x pack  or Femto 8

Highlights:

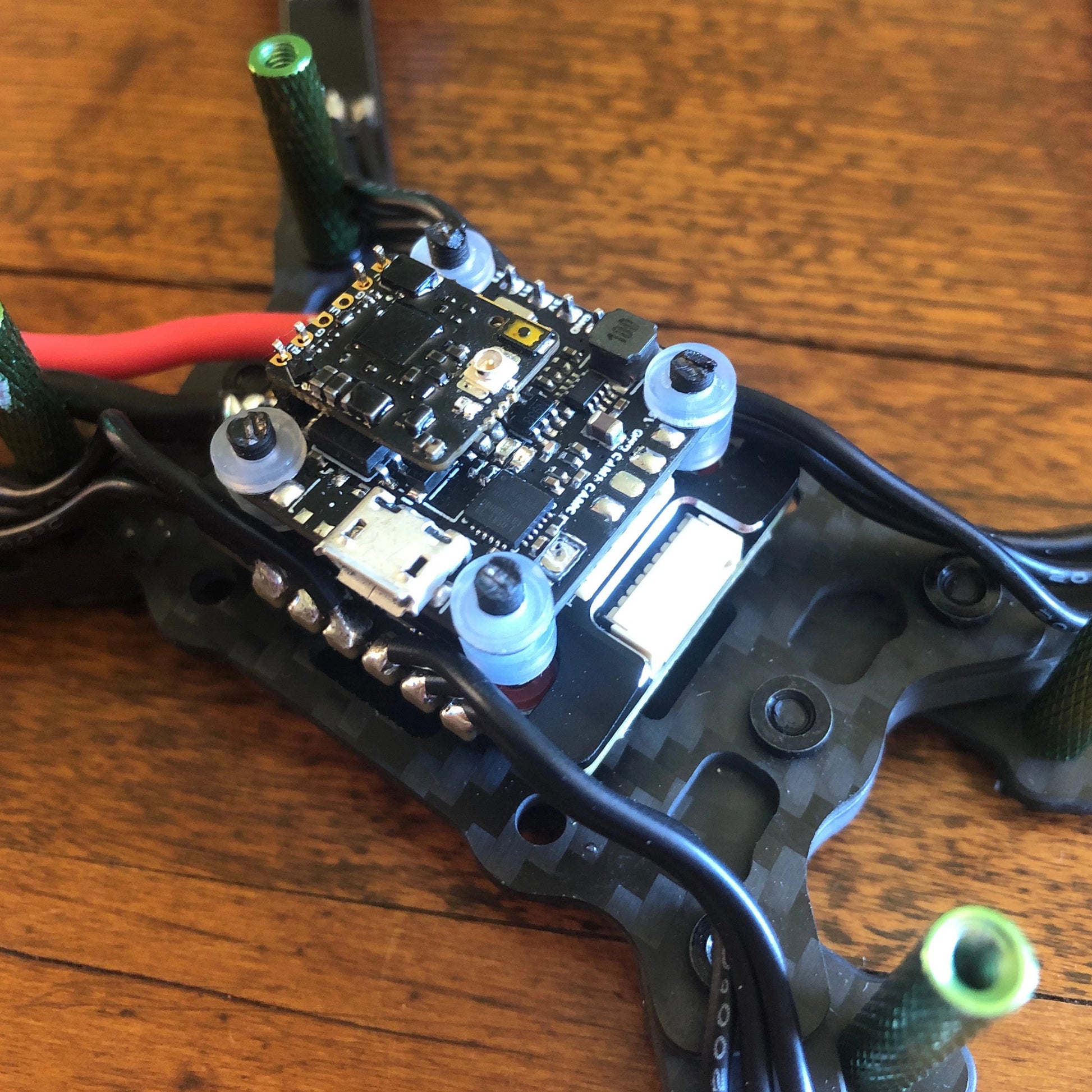

Taking everything I like from the Whitenoise Synergy board and cramming it into a 20x20 FC.

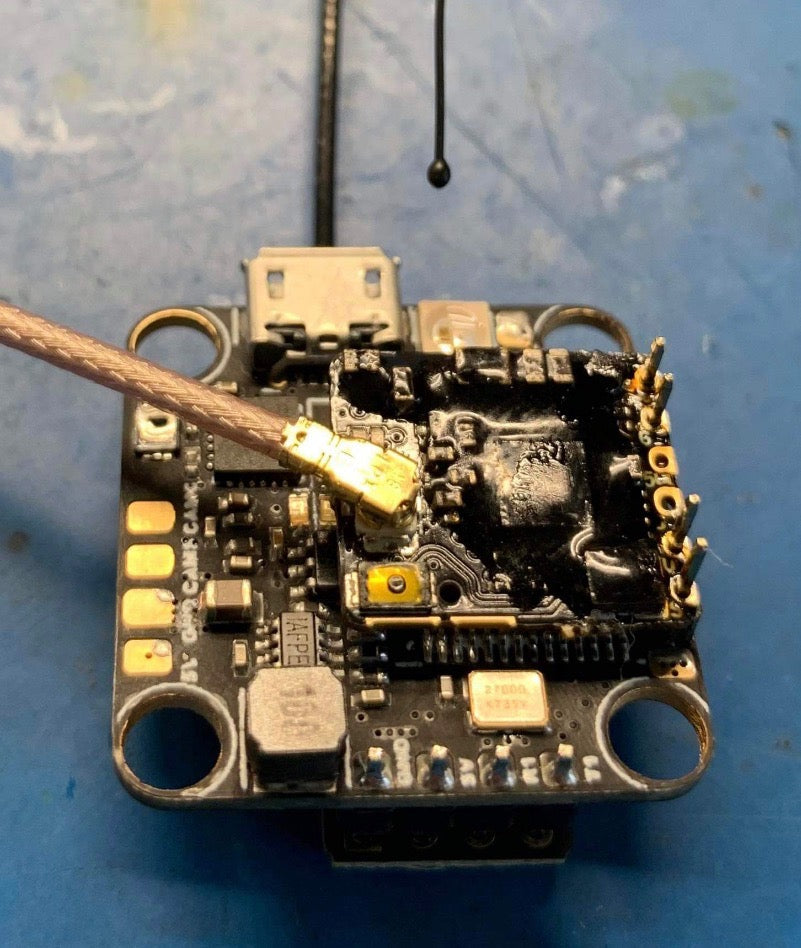

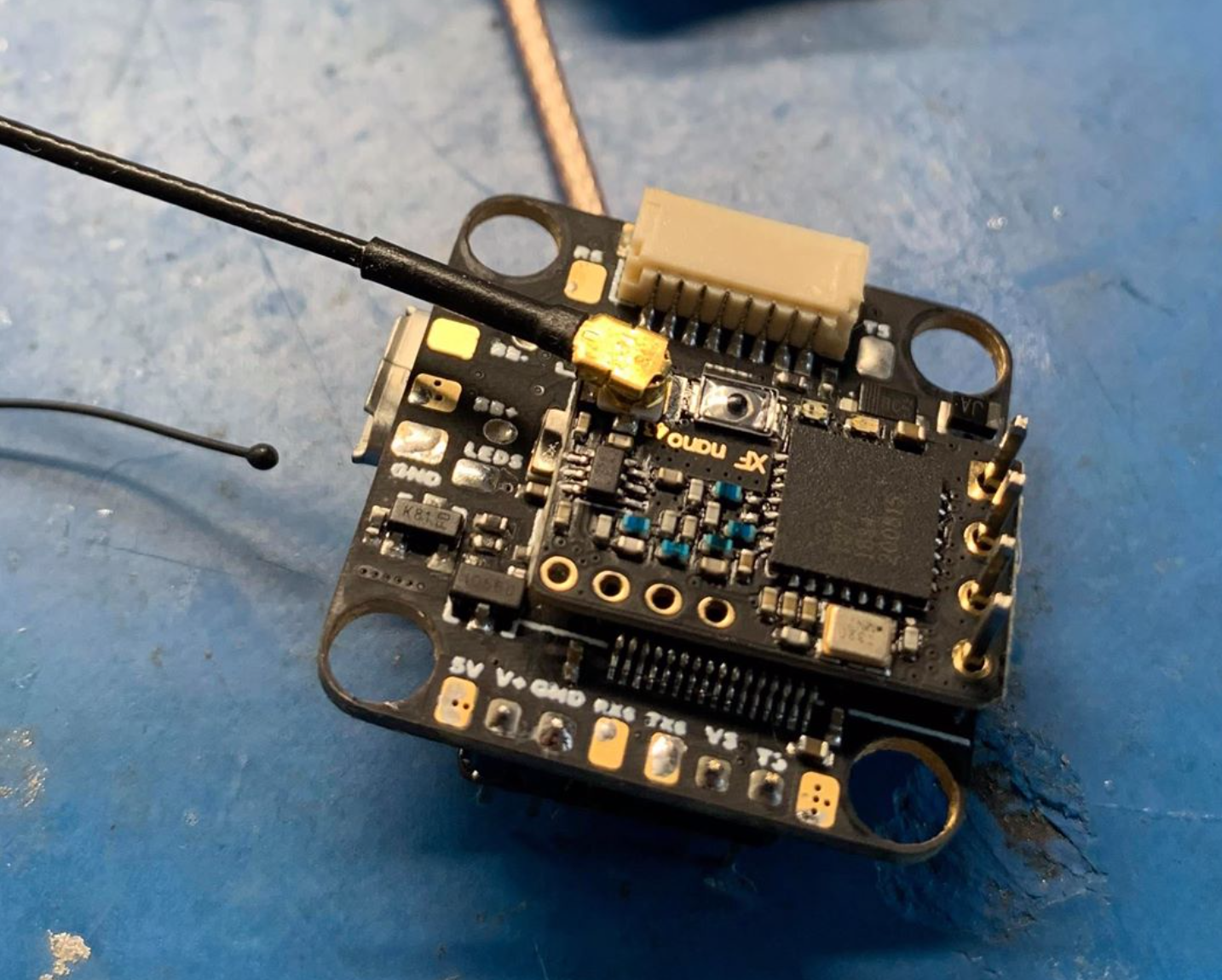

Direct Mounting for TBS Nano Pro32/Pro VTX and XM+/XF Nano RXs

You must setup VTX pit mode in Betaflight before the VTX will power on. Please see instructions below.

LED on board for lighting up pods or displaying status info.

Don't forget to get a U.FL pigtail if you get a Unify Nano! https://tinysleds.com/products/tbs-unify-pro-5g8-sma-pigtail-u-fl

Please follow setup directions for TBS Unify PRO32. You will need to flash Betaflight 4.1.x+  for the new Smartaudio 2.1 compatibility.

https://github.com/betaflight/betaflight/blob/master/docs/VTX.md

TBS Nano 25/50mW NOTE:

If you are running a TBS Unify Nano please flash the  Synergy 3.5.7 AKK patch for the software patch to use Smart Audio 2.0 Lite. If you do not have a 10k ohm Resistor on your Nano mounting board adapter have Smart Audio issues.

For a little bit faster boot time Enter these commands in CLI:

resource i2c_sda 2 none
resource i2c_scl 2 none
Set gyro_2_bustype = NONE

Until Official BF target of UNITYF7 is released use CLRACINGF7(CLRA) with the following commands below.

use these CLI Commands for setting VTX Switch:

RESOURCE PINIO 1 C15

set pinio_box = 40,41,42,43

save

 Go to your Modes tab and setup " USER 1" to an aux channel to setup the pit switch.

If you would like it to always be on. then set up " USER 1" to your arm channel and increase the bar to the entire span of the channel range.

 **If you want to have ALWAYS ON vtx power Setup Up your mode switches like this:

Features:

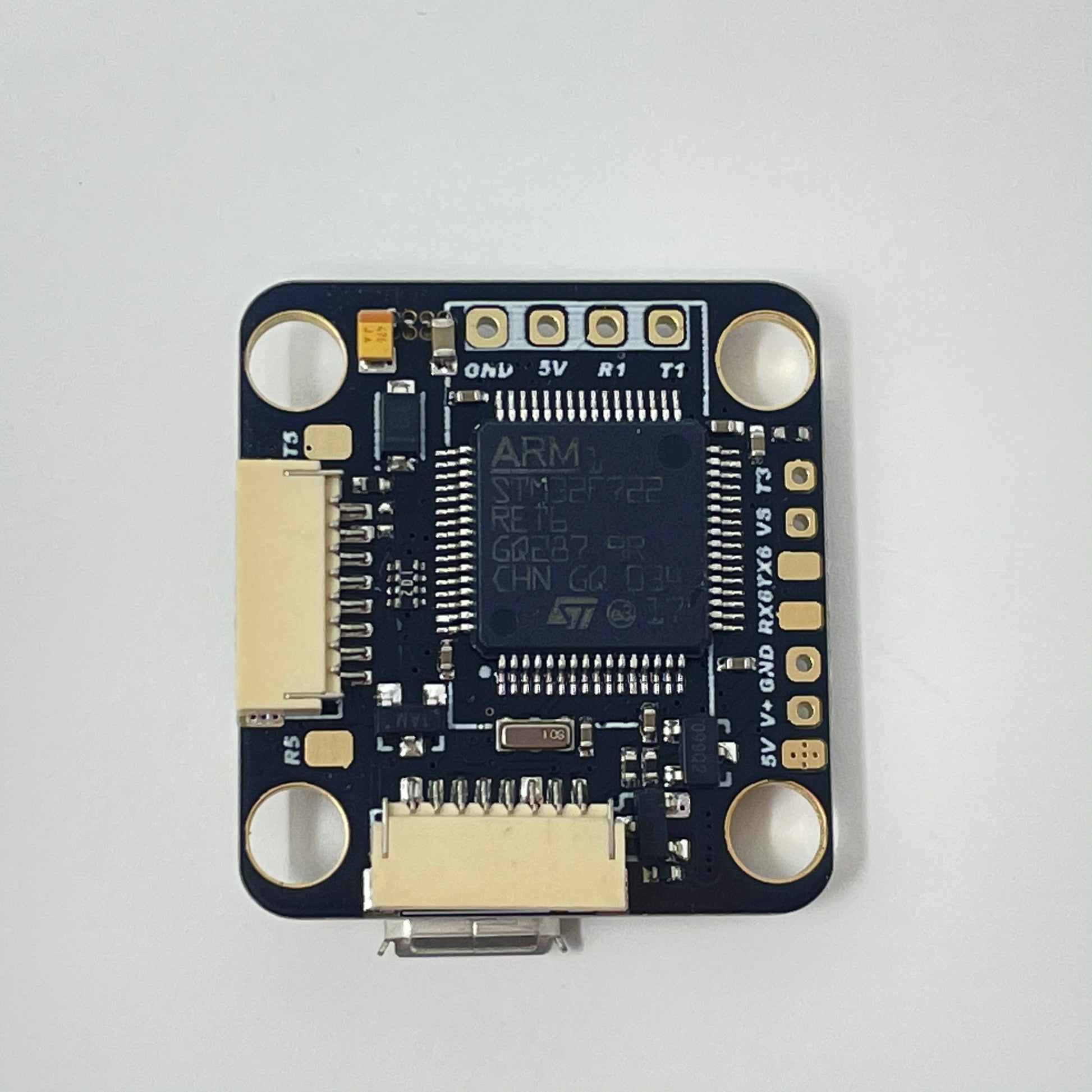

• MCU: STM32F722RET6 216MHz
• Gyro: MPU6000
• Betaflight OSD
• Up to 6S (28V) direct battery power
• Buzzer pads for external buzzer
• Built in voltage monitoring resistor
• 5V 2A BEC
• Led strip shares 5V with 5V/2A BEC
• 6 UARTS
• UART 3 TX: VTX Smart Audio
• UART 1 RX/TX Receiver pins

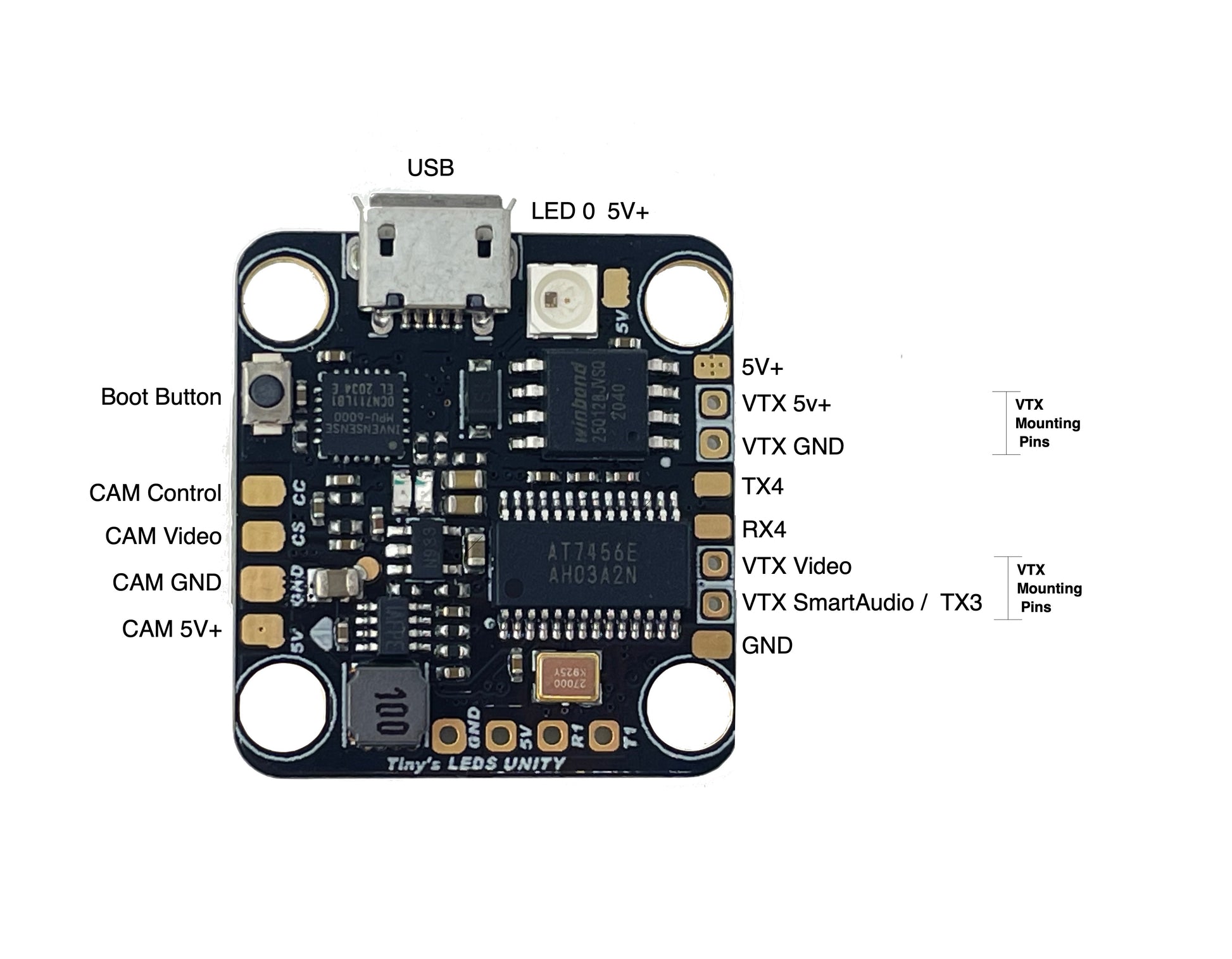

• Built in camera control pin with resistor and capacitor
• 5 Full UARTS with RX AND TX pins
• TX3,RX3 can be used for I2C for external compass
• 5V VTX & CAM power
• 16MB Blackbox flash chip
• RealPit VTX pit mode switch
• ESC Connector pads below connector
• M4 Can be selected either led_strip signal or M4 signal for RPM filtering
• LED on board for Status or other functions
• 20x20 Mounting 25x25mm Board Size

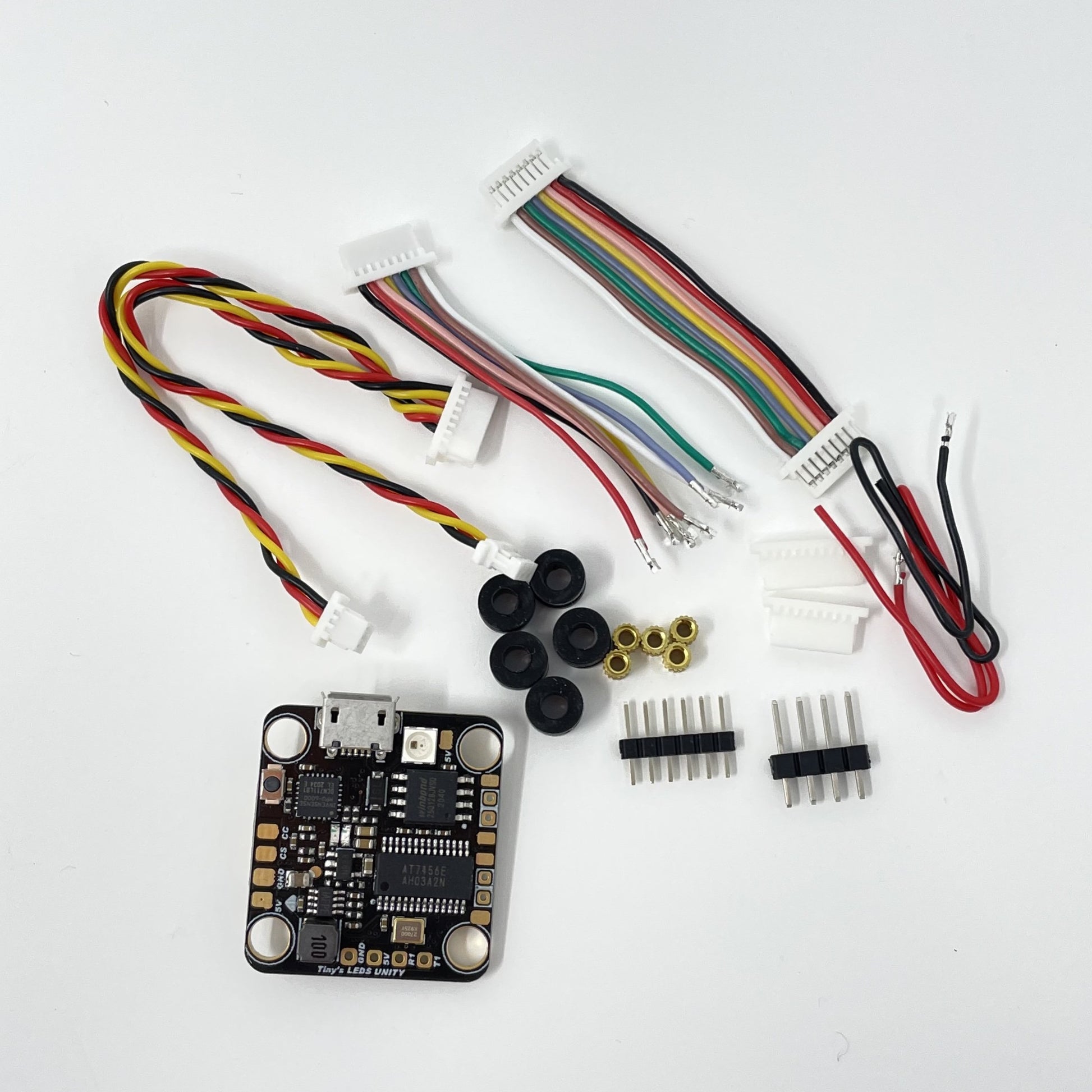

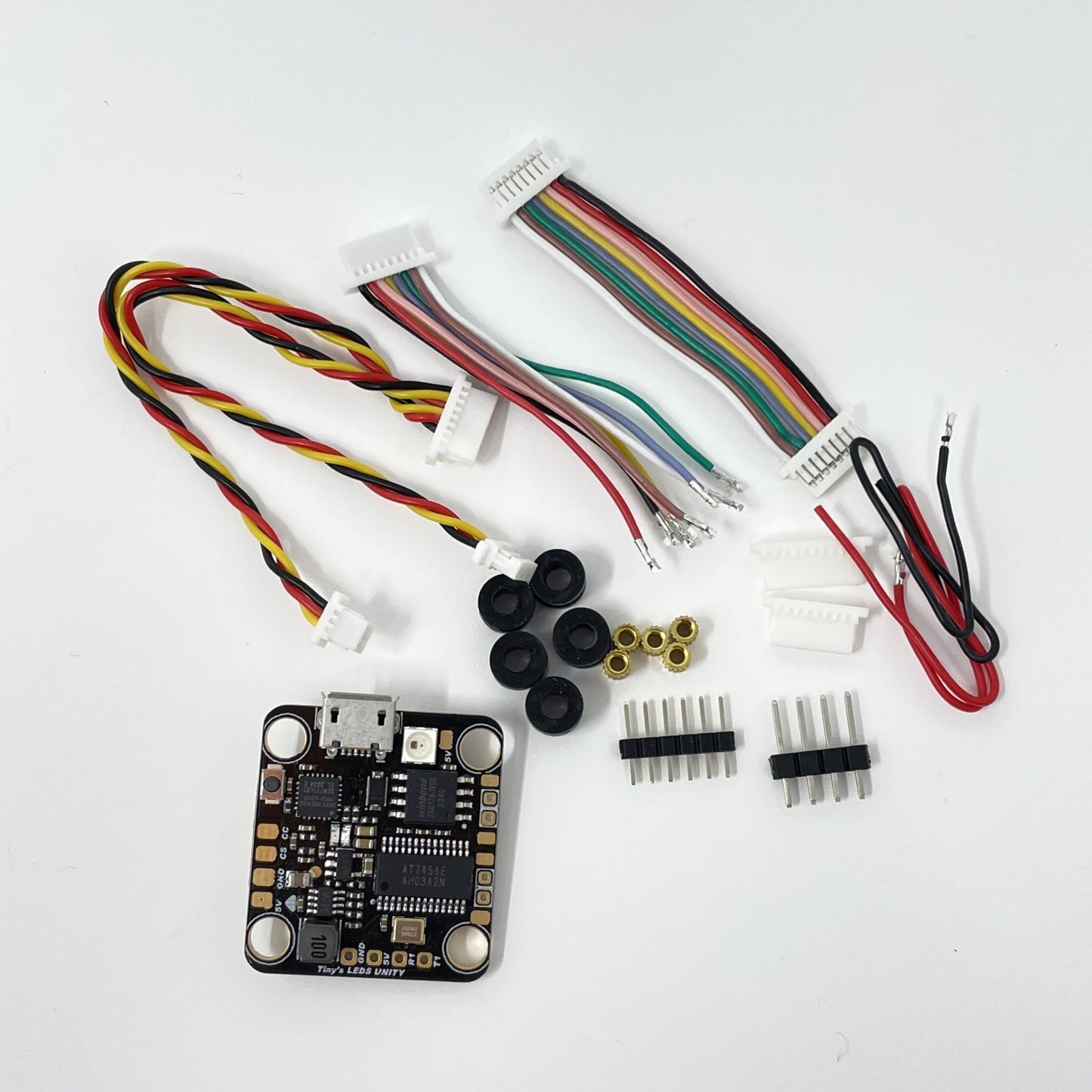

Contents:

1x Tiny's LEDs Unity 20x20 FC

1x Wiring harness for Aikon PIN32 ESC

1x Wiring harness with un-pinned connector. (Build your own easily)

1x 8 pin ESC connector

1x 10 pin ESC connector

5x Mounting Gummies

5x M2 Reducer mount.(Slide Gummies over)

1x Set of 2.54mm pins (RX)

1x Set of 2.0mm Pins (VTX)

1x Tiny's LEDs Sticker :)
