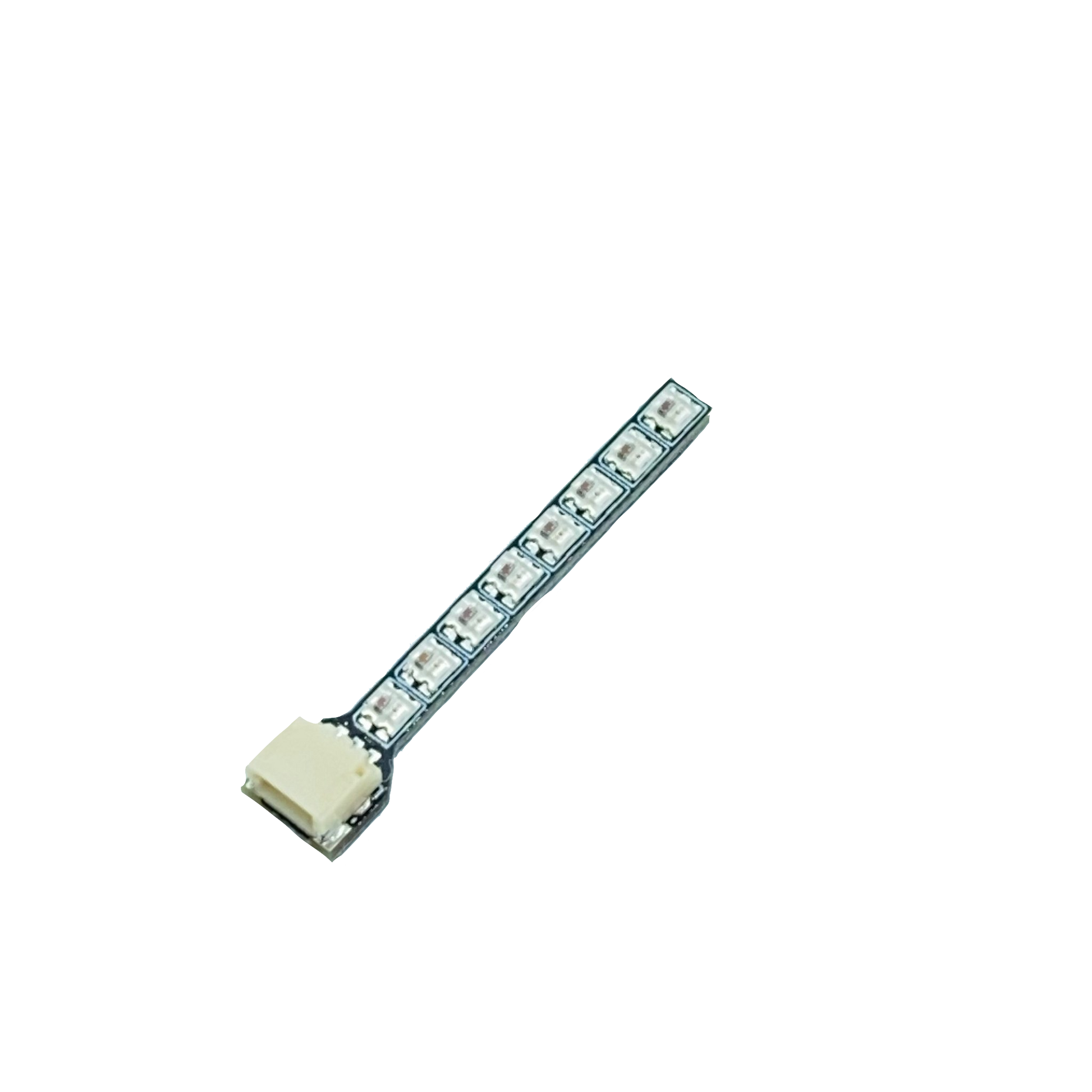

Zeez Designs built the 10x LED board. I needed a shorted board for some micros.
8x 5 volt addressable LEDs.
Differences:
Pro line is built for bigger quads that have space for larger 5v Regulators.
Lite line is built for micros and will have no issues running off the onboard 5v regulators.
Setup in betaflight or Flight controller as 8 LEDs.
Dimensions: 2.9 x 31.5 mm
Weight: 0.6 gram
Current:
PRO: 8x 48mA LEDs on White Color ( 384mA on White )
LITE: 8x 15mA LEDs on White Color ( 120mA on White )
