FAI LED Kit with RaceLiteWires
Don't need RaceLiteWire?
- Tiny Rainbow LED Power PDB v2
- 4x Tiny Rainbow v2 LEDs,
- 1x 35/75mm Silicone cable kit
- 4x Racelite Mini 5v Racewire LEDs

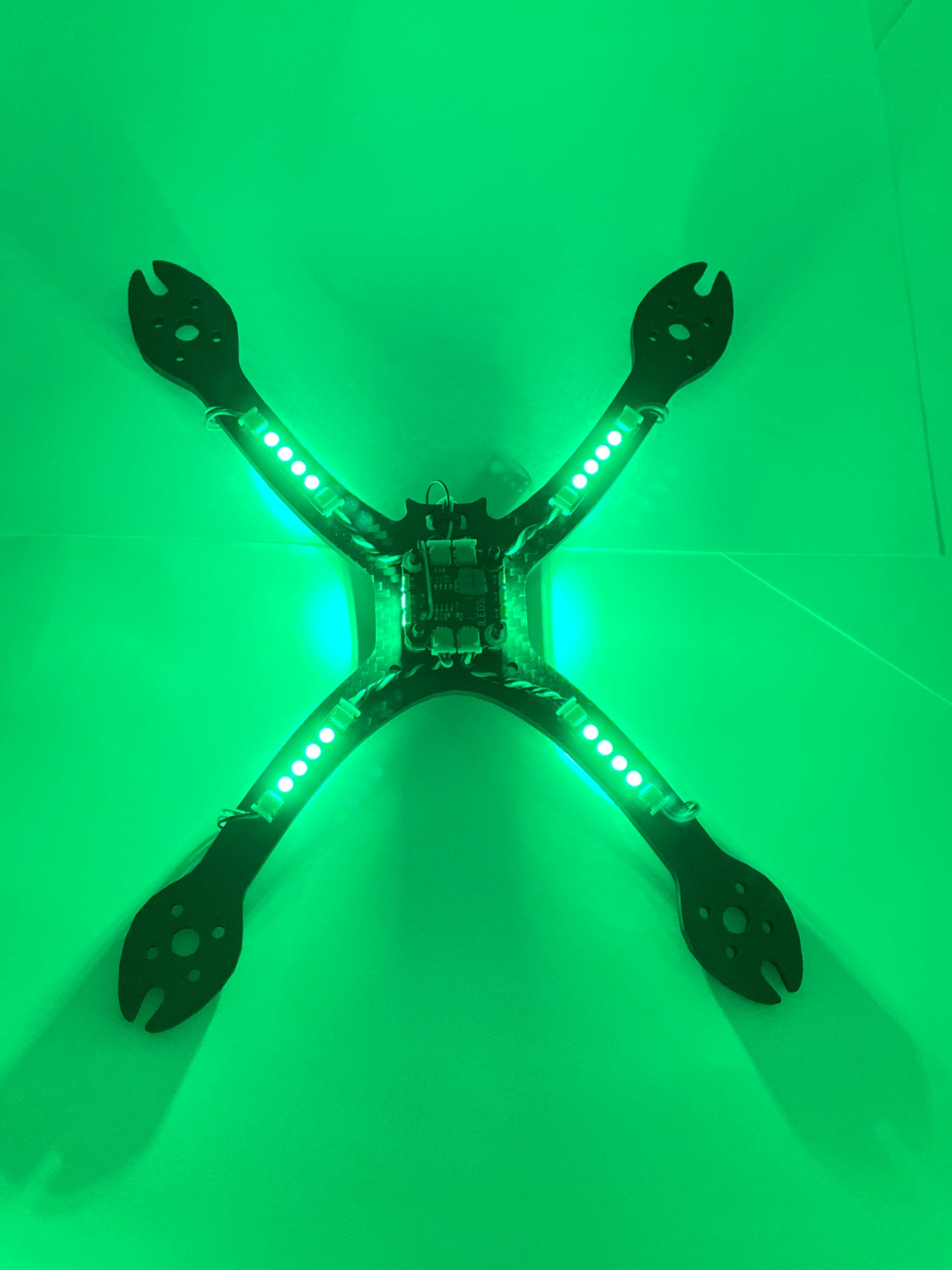

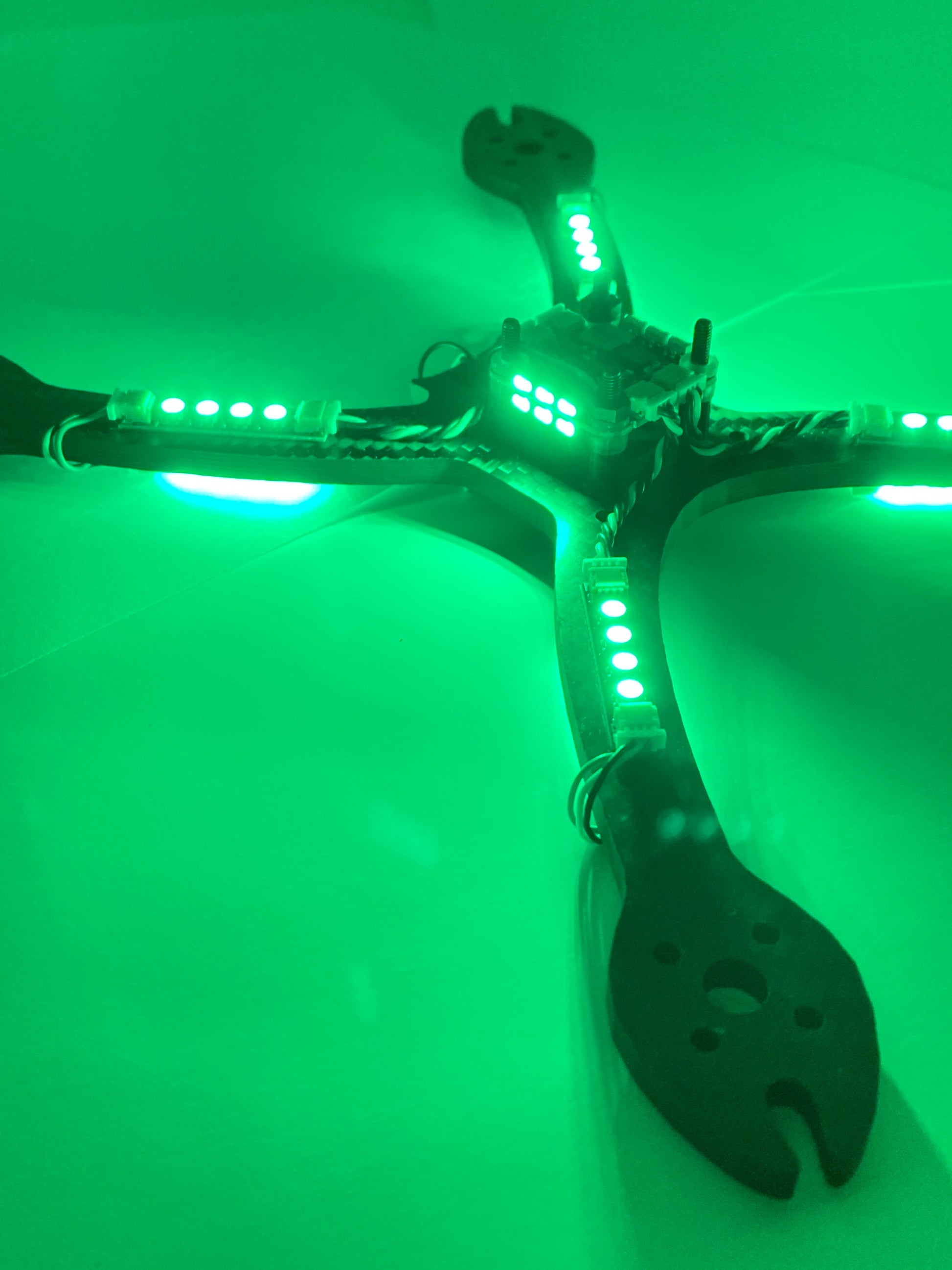

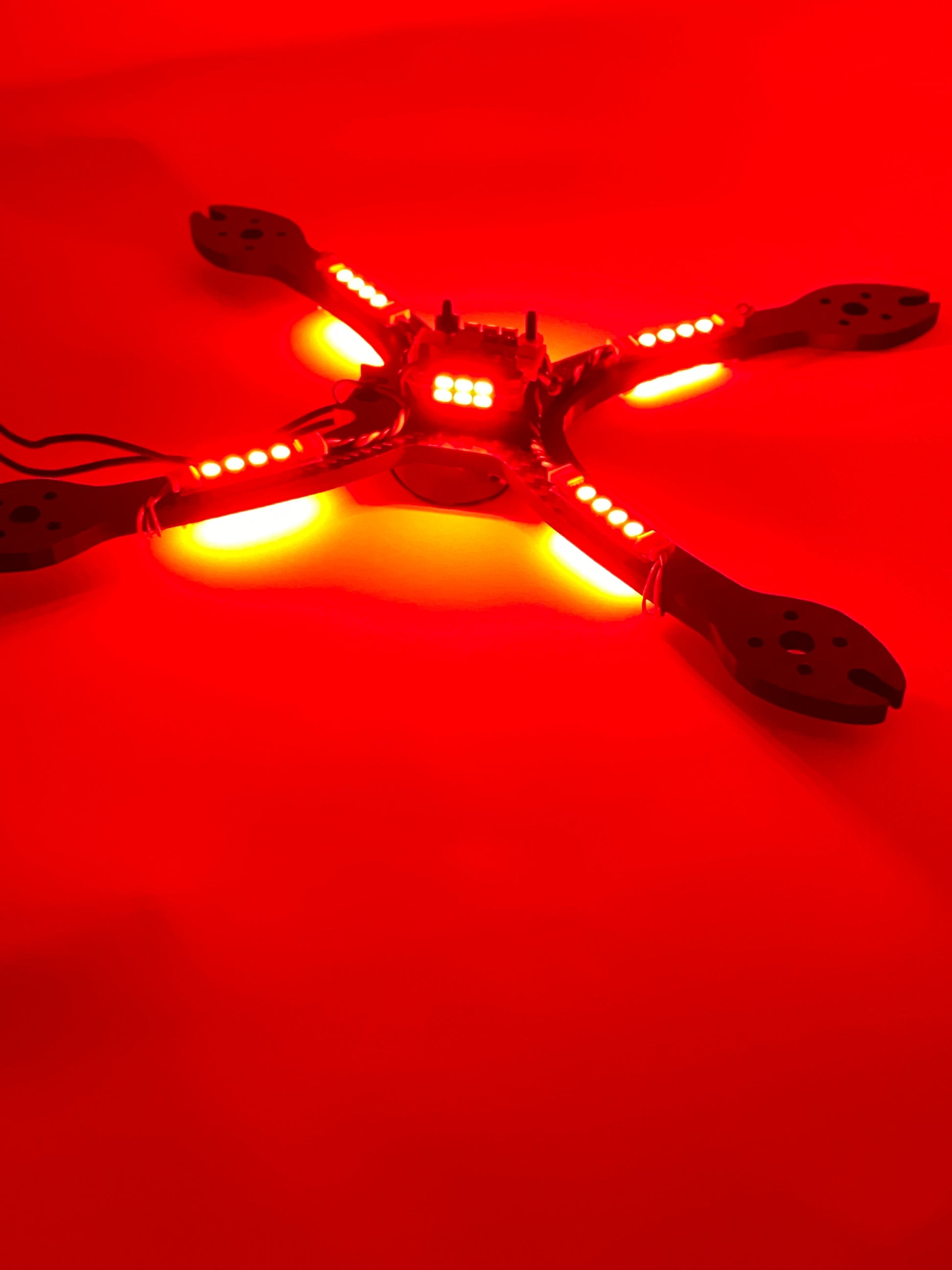

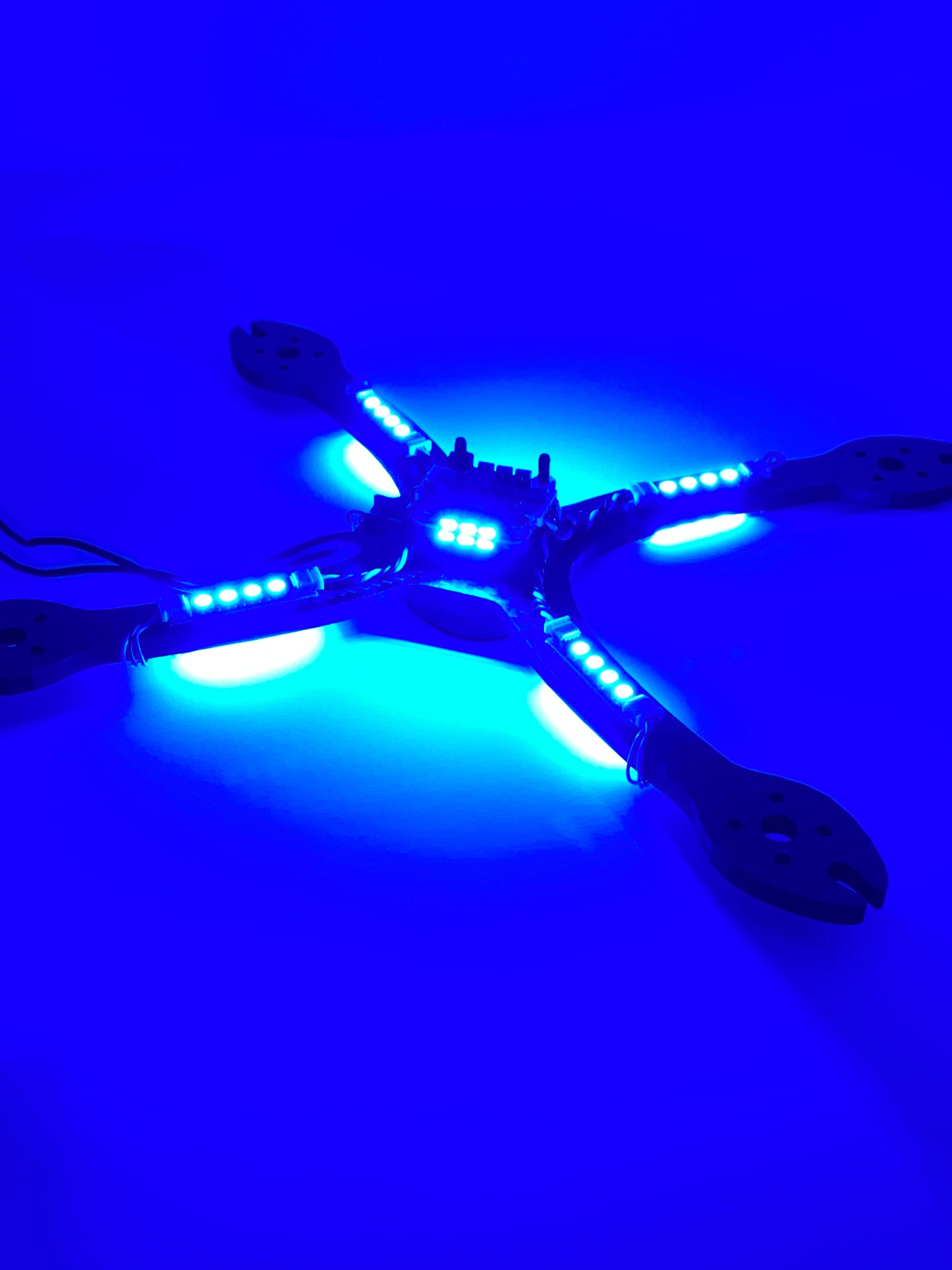

48 LEDs and only soldering 3 wires? LEDs are even easier to add to your quad. 6x leds per side of quad and 8 per arm. Perfect for international races where LEDs are required.
Quick Setup Guide:

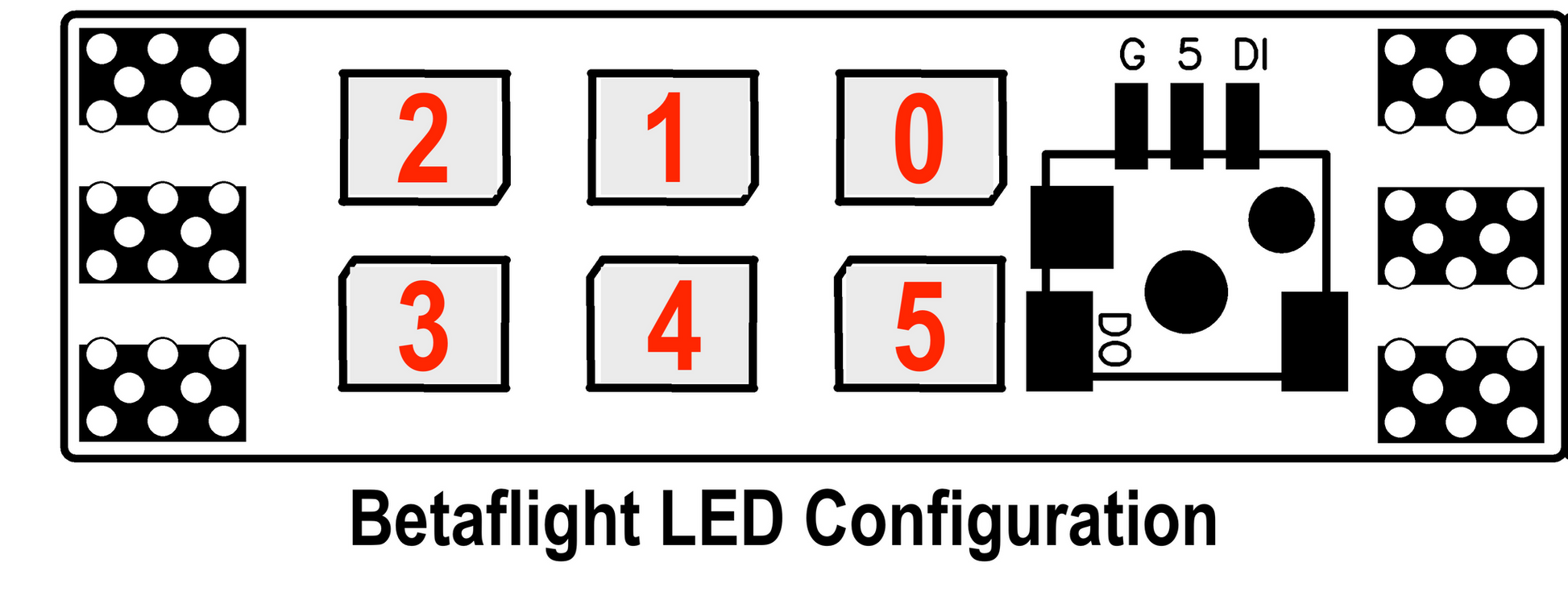

Copy and paste the below text into the CLI of Betaflight. This will turn on your LEDs. You can further adjust in the Betaflight LED Strip tab.
feature LED_STRIP
led 0 2,2::C:2
led 1 3,3::C:2
led 2 4,4::C:2
led 3 5,5::C:2
led 4 11,4::C:2
led 5 10,4::C:2
led 6 9,4::C:2
led 7 9,5::C:2
led 8 10,5::C:2
led 9 11,5::C:2
save
Features:
- 5 volt 3 Amp Regulator 2-6s Input
- 8x Side Fire LEDs, ( 4 each side)
- Soft Mounting for 20x20
- JST-SH Connectors for Outputs to each arm.
- Solder pads on bottom of board for extra leds. and backup if connector breaks during crash.
- Supports up to 48 LEDs
Instructions:

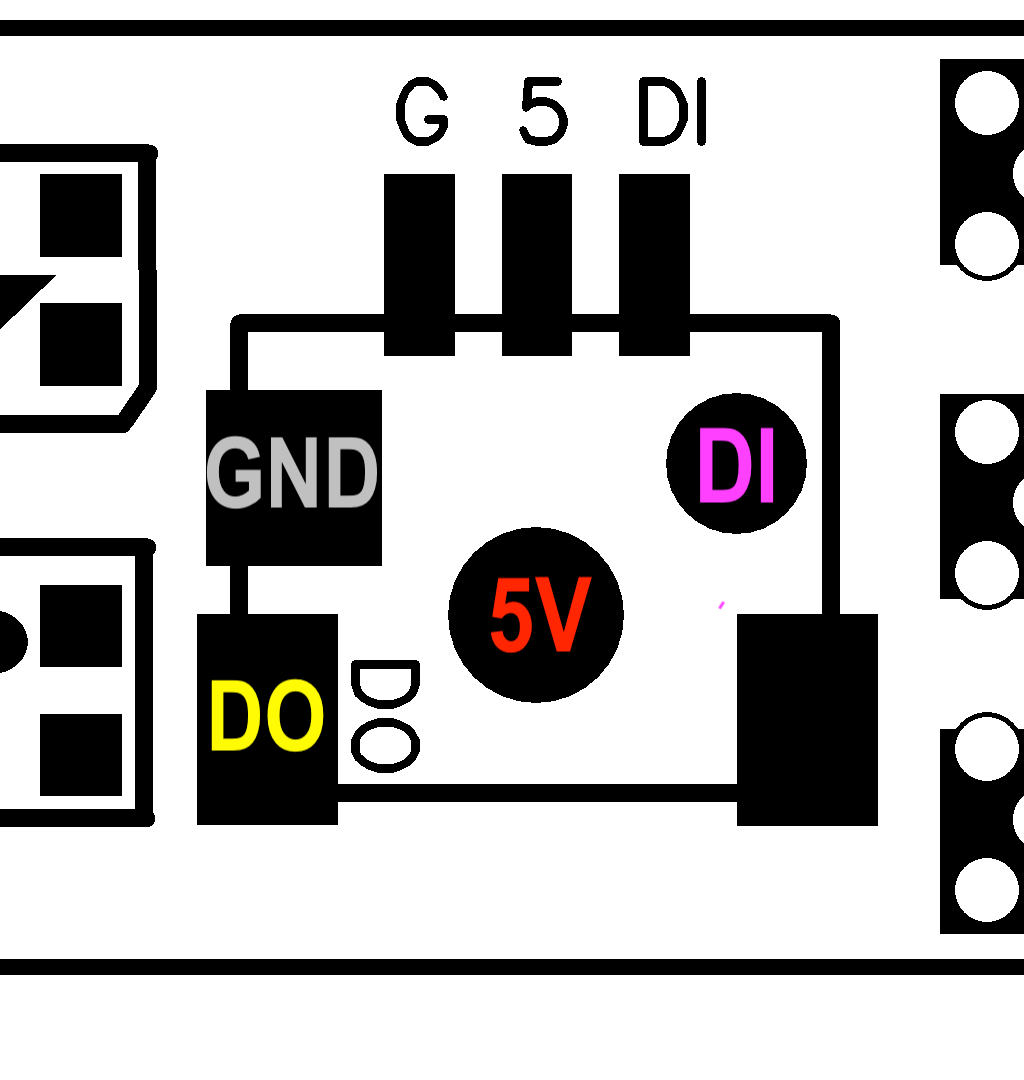

Wire 2-6s Input to B+ pad, Wire GND and LED DI to the Flight Controller. Setup betaflight as 1 LED ( All 8 on board act as 1 led in parallel, This is better for racing)
Weight:
Dimensions:

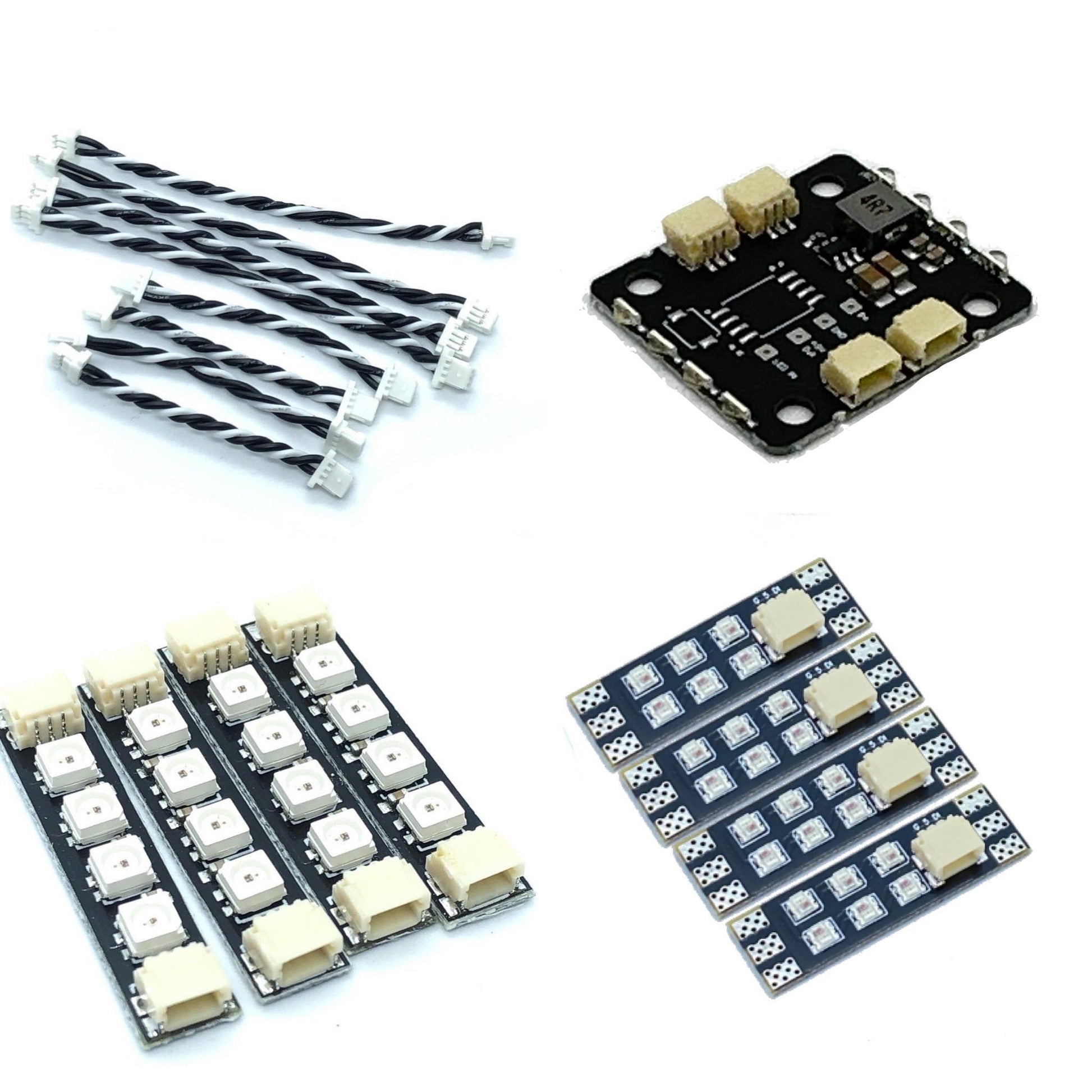

Contains:
1x Tiny Rainbow LED Power PDB v2
4x Tiny Rainbow LEDs with connectors
4x RaceLiteWire Mini 5v with connectors
4x long silicone led wires
4x short silicone led wires
