Brand:Tiny's LEDs

Tiny Rainbow LED Quad Kit (40 LEDs & Wires)

Tiny Rainbow LED Quad Kit (40 LEDs & Wires)

$34.99 USD
$40.00 USD $34.99 USD
Sale Sold out
Shipping calculated at checkout.
FAI LED Kit
  • 1x Tiny Rainbow LED Power PDB v2
  • 8x Tiny Rainbow v2 LEDs,
  • 1x 35/75mm Silicone cable kit
40 LEDs and only soldering 3 wires? LEDs are even easier to add to your quad.  4x leds per side of quad and 8 per arm. Perfect for international races where LEDs are required.

Quick Setup Guide:

Copy and paste the below text into the CLI of Betaflight. This will turn on your LEDs. You can further adjust in the Betaflight LED Strip tab.

feature LED_STRIP
led 0 2,5::C:2
led 1 3,5::C:3
led 2 4,5::C:5
led 3 5,5::C:7
led 4 7,5::C:8
led 5 8,5::C:10
led 6 9,5::C:11
led 7 10,5::C:12
save



Features:

  • 5 volt 2 Amp Regulator 2-6s Input
  • 8x Side Fire LEDs, (4 each side)
  • Soft Mounting for 20x20
  • JST-SH Connectors for Outputs to each arm.
  • Solder pads on bottom of board for extra leds. and backup if connector breaks during crash.
  • Supports up to 40 LEDs
  • Connect up 8 of the Tiny Rainbow V2 with the LED Wire kit and add 44 leds to your quad.

Instructions:

Wire 2-6s Input to B+ pad, Wire GND and LED DI to the Flight Controller. Setup betaflight as 1 LED ( All8 on board act as 1 led in parallel, This is better for racing)

Weight:

Dimensions:

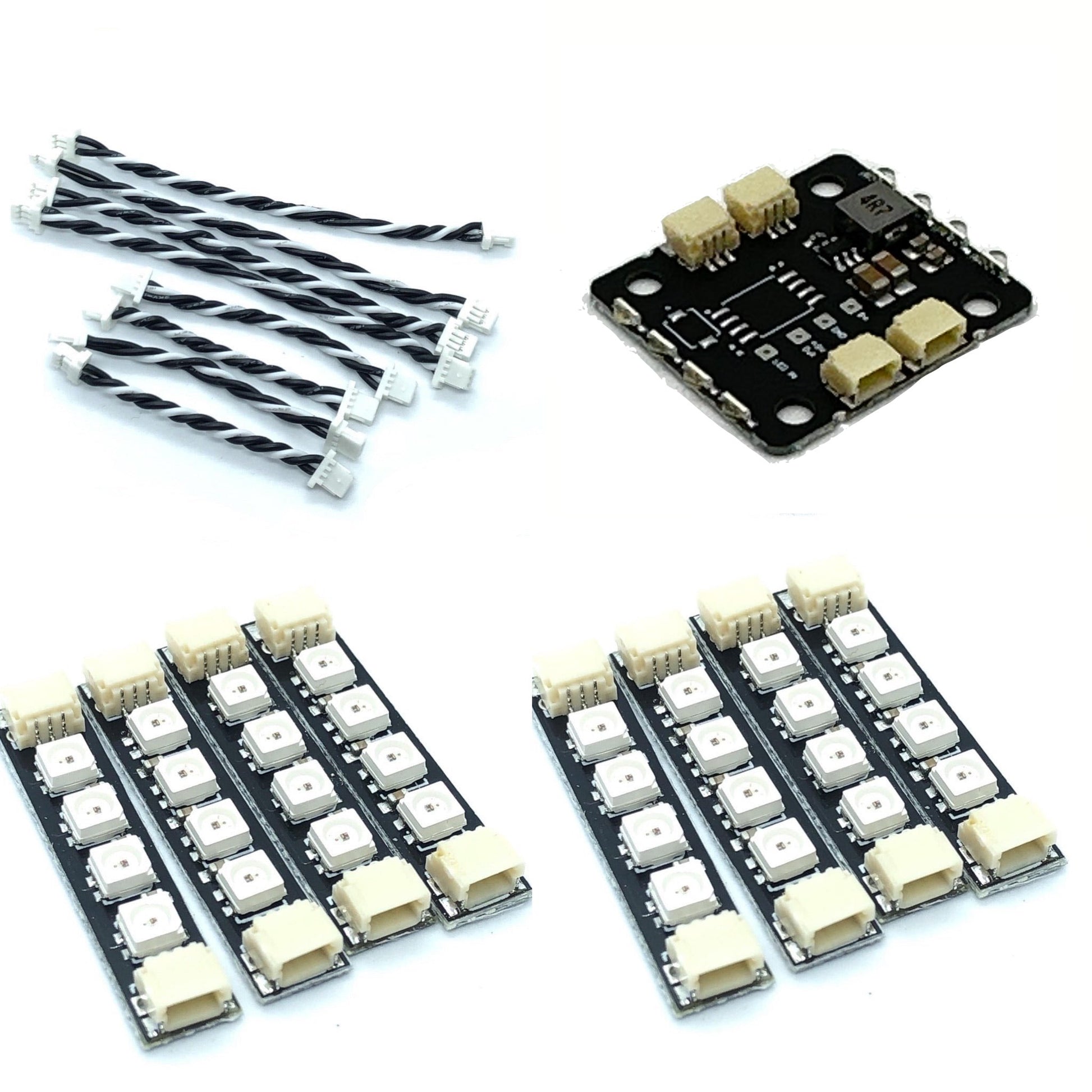

Contains:

1x Tiny Rainbow LED Power PDB v2
8x Tiny Rainbow LEDs with connectors
4x long silicone led wires
4x short silicone led wires
