Blinky Board

New for 2024: The Blinky Board,  4 Channel 2-6s LED Power Controller.

1.5amp for each channel.

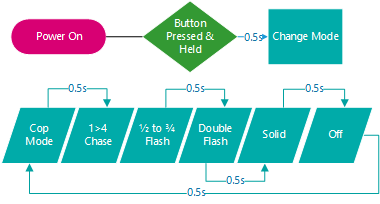

Multiple Blinking modes selectable via button or PINIO signal from flight controller or other digital 3-5v input.

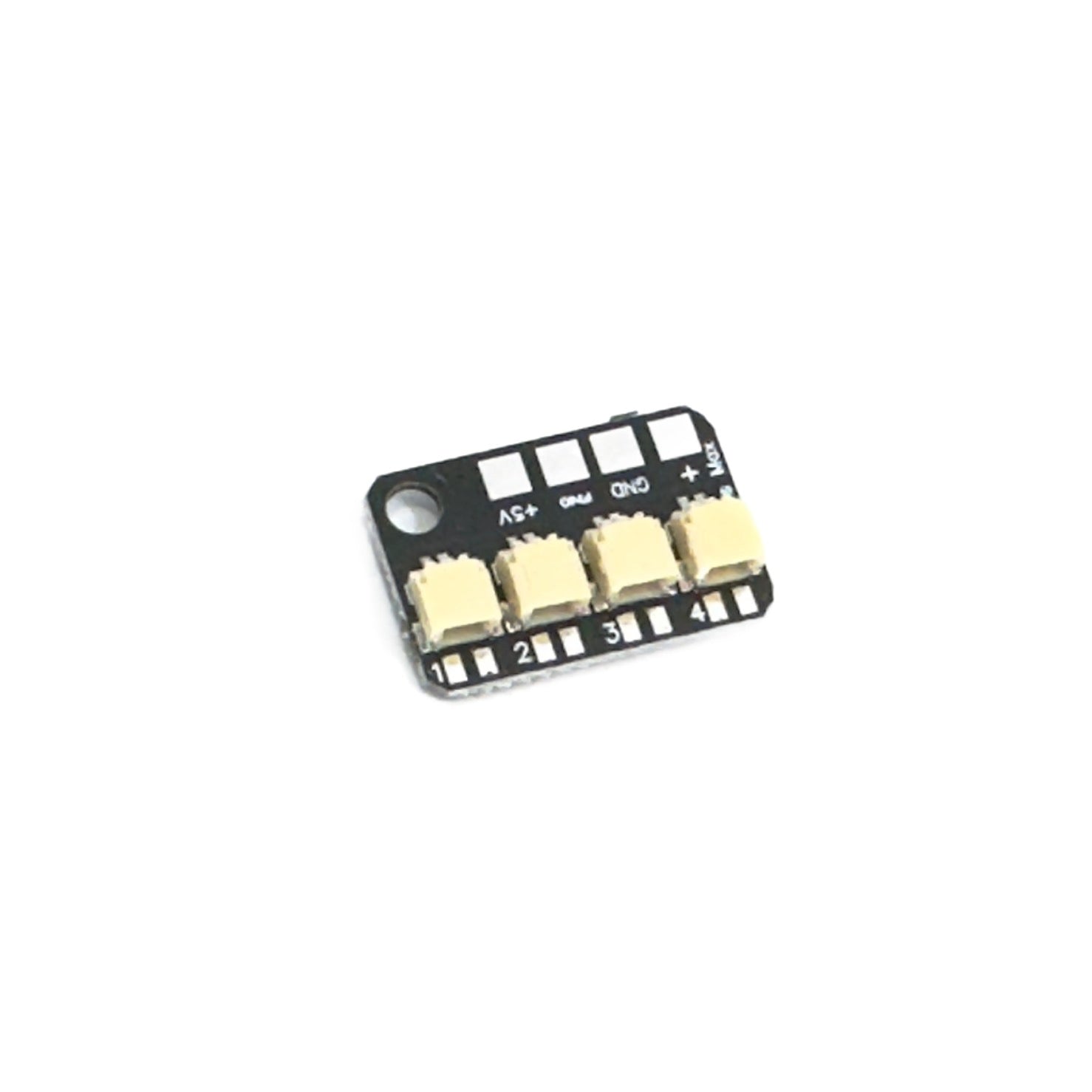

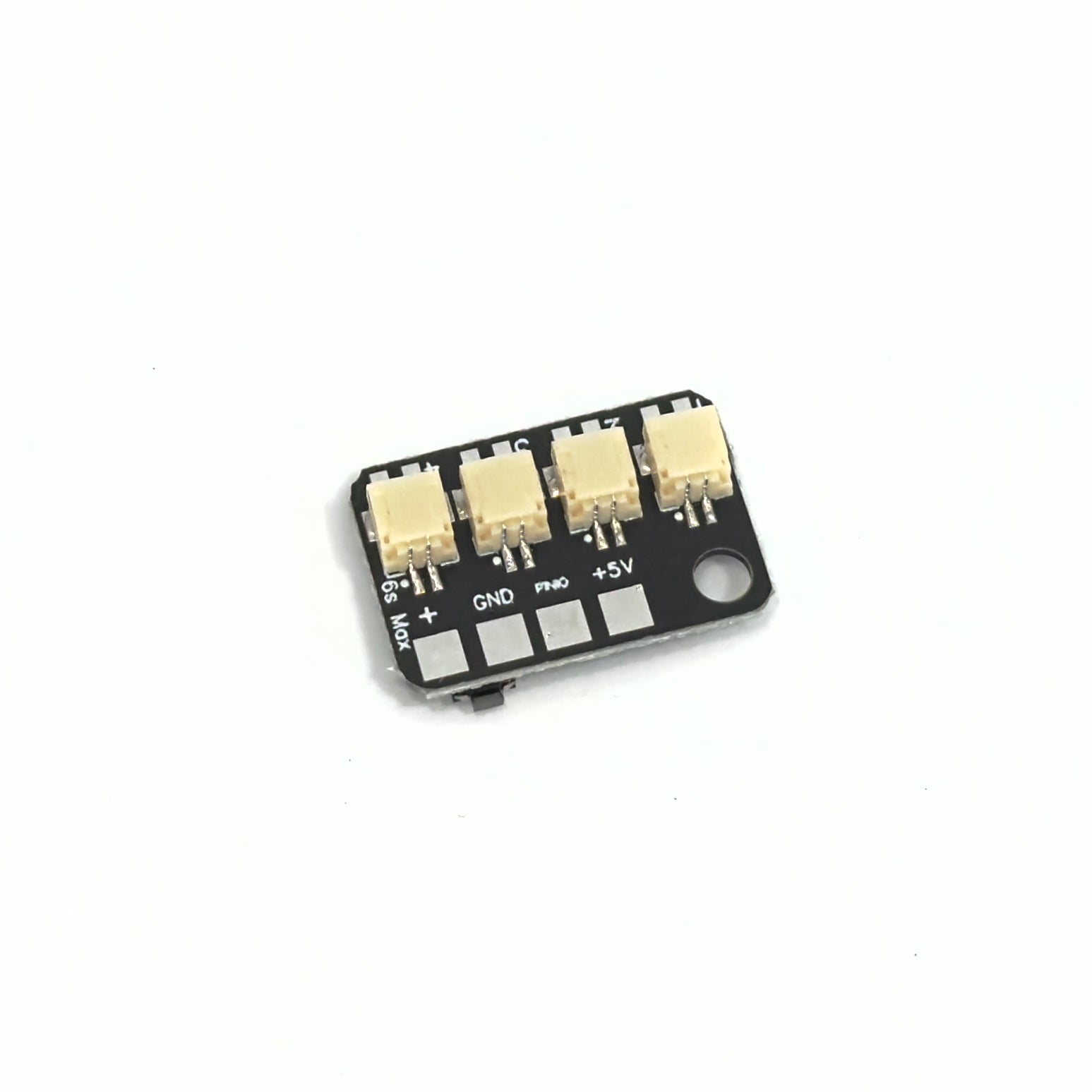

Features JST-SH 2 pin connectors for easy use of the EASY LED series of leds and cable sets.

https://tinysleds.com/products/easyled-silicone-cable-kit-5x-200mm  Use these with Easy LEDs, plug and play, or clip the wire and solder to your leds.

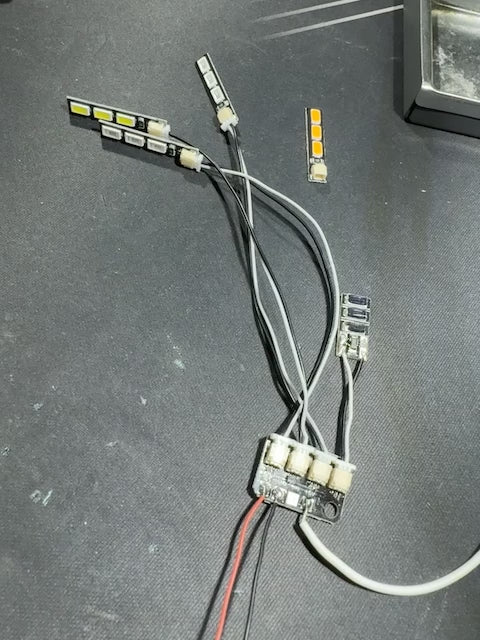

Cop Mode, Chase mode, Left -Right Flash (Shown in video), Double Flash. Solid On, Off.

The BlinkyBoard provides multiple LED animation modes:

1. All LEDs On - Set all LEDs on
2. All LEDs Off - Set all LEDs off
3. Police/Ambulance Flash - Flashes LEDs in pairs (1,2 and 3,4) with a delay
4. Double-Blink - Turns all LEDs on and off with delays for a double-blink effect
5. Alternating 1,3 and 2,4 - Alternates between lighting LED1 & LED3, then LED2 & LED4
6. Chasing LEDs - Lights up LEDs sequentially with a delay between each
7. Airplane Blink - Flashes the first two LEDs together, then the last two together
8. Alternating 1,2 and 3,4 - Toggles LEDs in pairs (1,2 and 3,4) with a delay
9. Random LEDs - Randomly turns on/off LEDs with varying delays

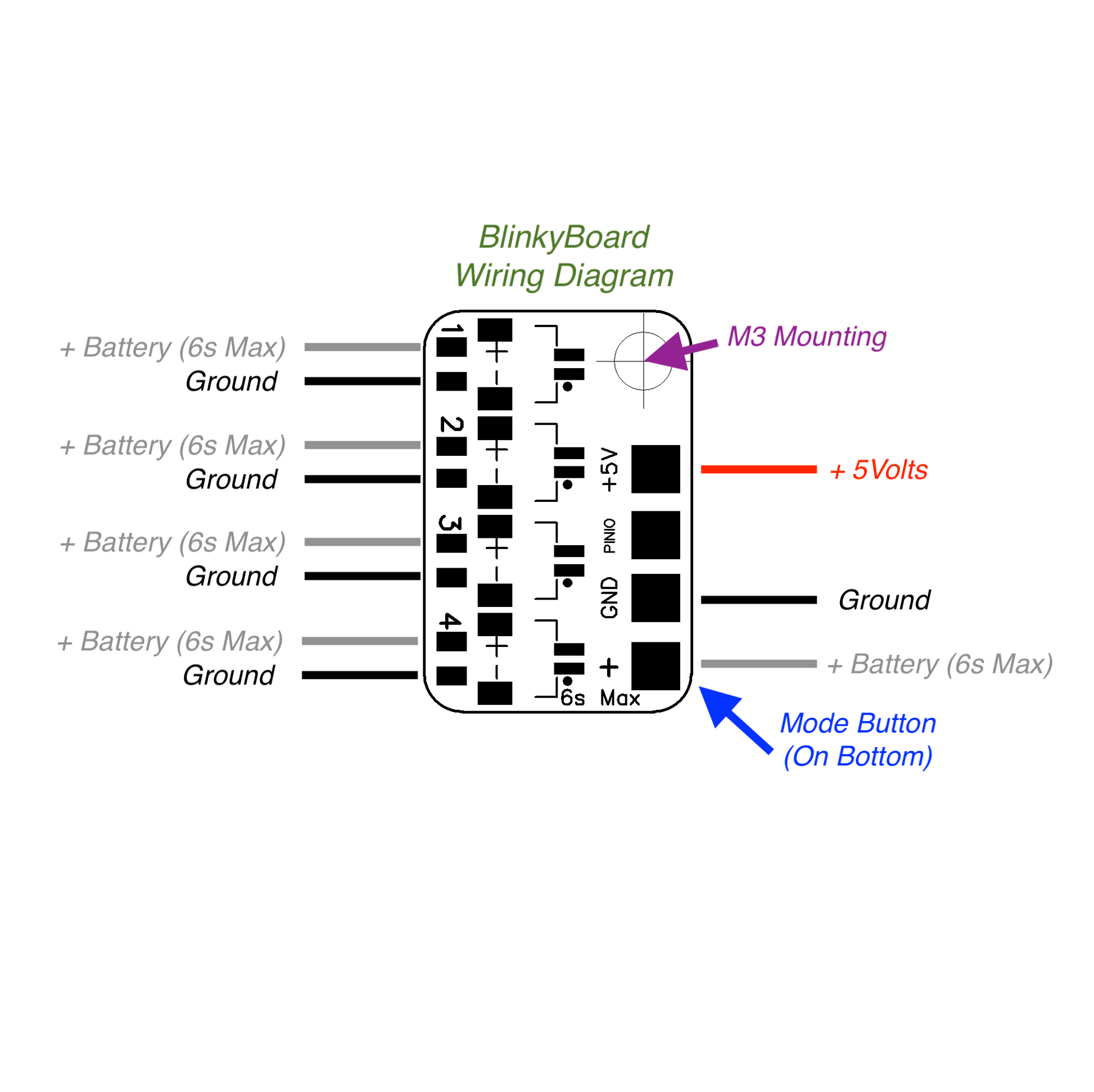

Requires 5 volt to power circuit. Can be pulled off of FC to power. It is very small amount of power.
