Tiny Trainer V2 Ultimate DRL LED Kit
Tiny Trainer V2 Ultimate DRL LED Kit
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
This product is coming soon. Please subscribe to the back in stock notification to be notified when it becomes available.
Picked up a Five33 Tiny Trainer v2 from FlyFive33.com ? If not get one here: https://flyfive33.com/product/tinytrainer-v2-frame-kit/

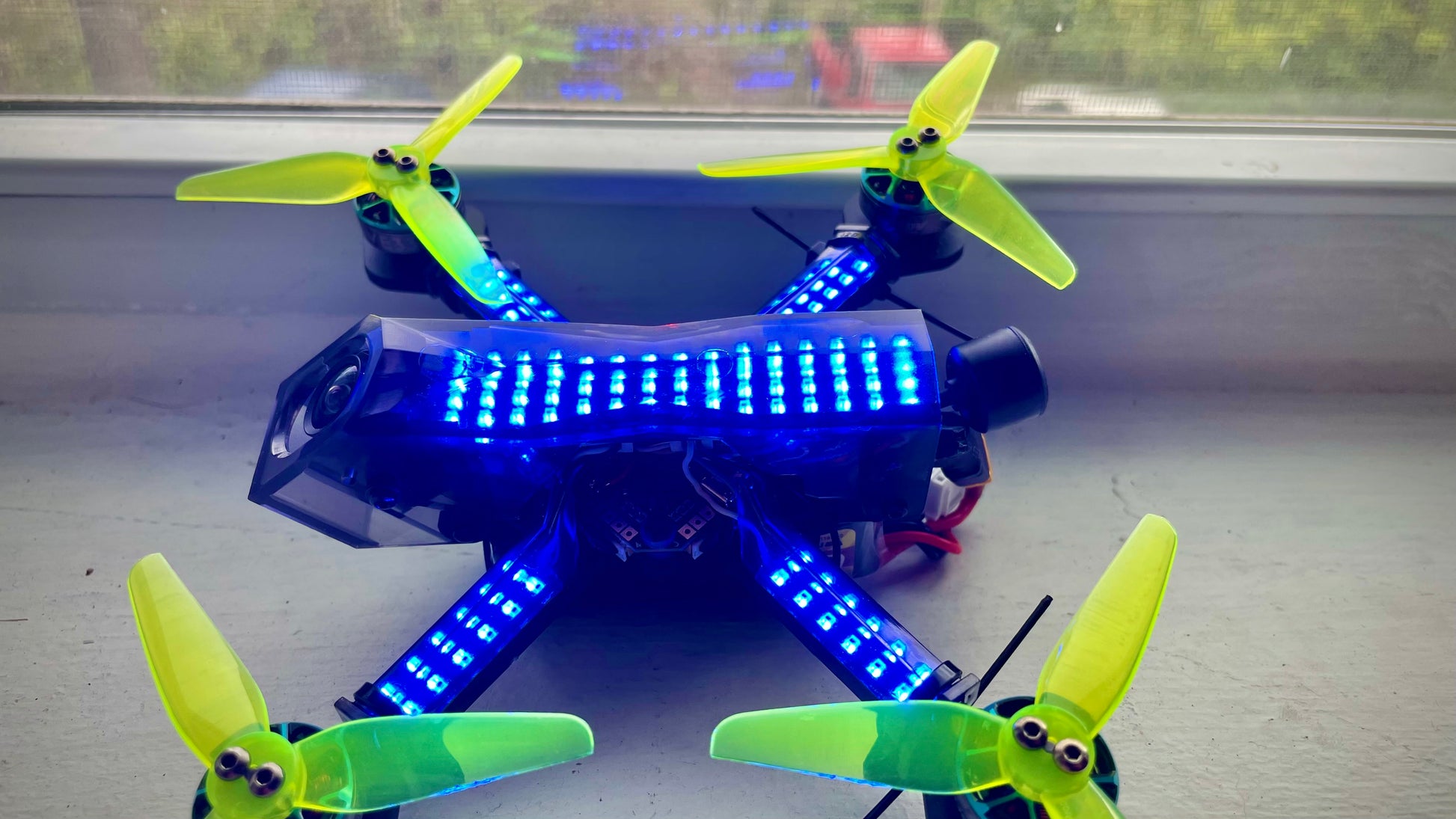

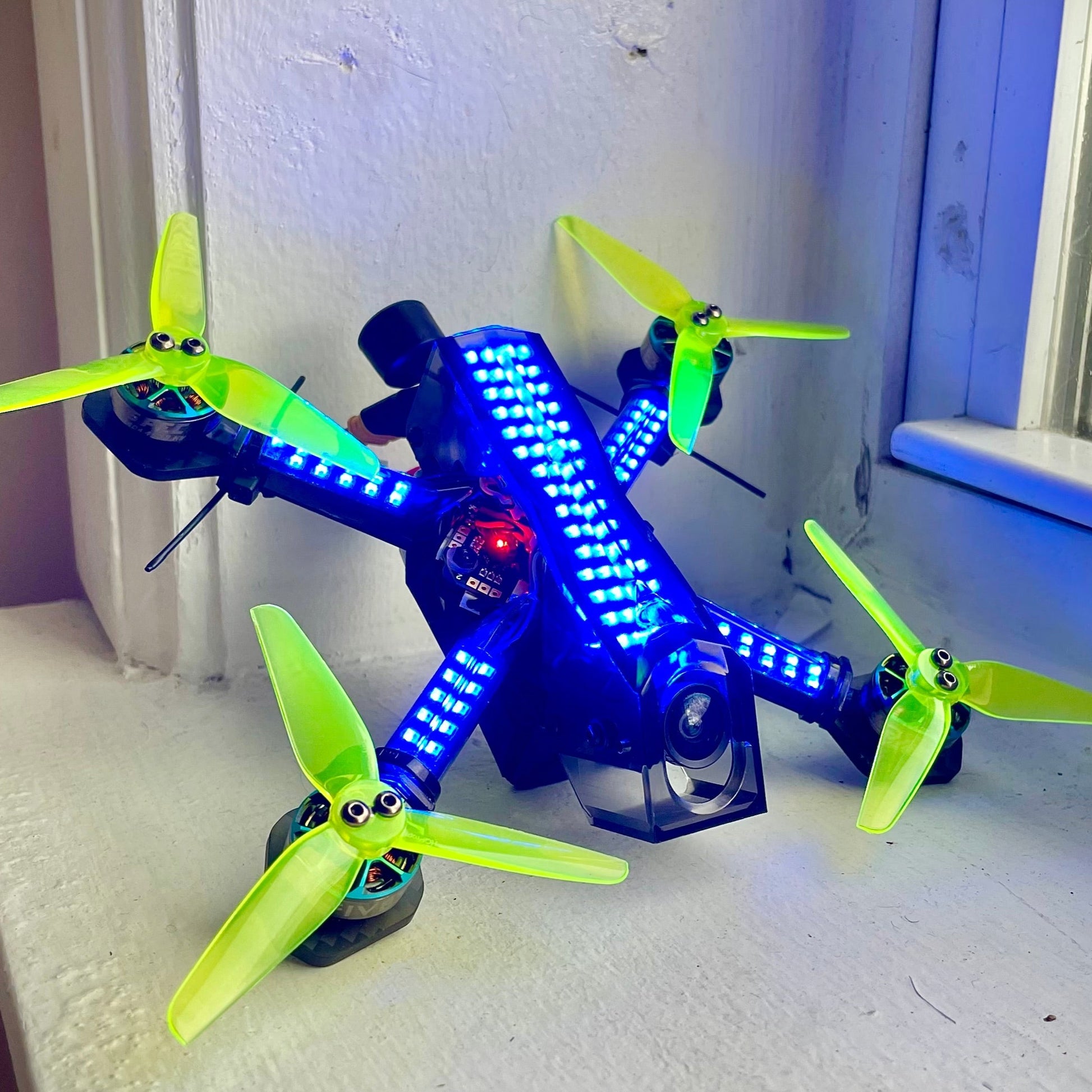

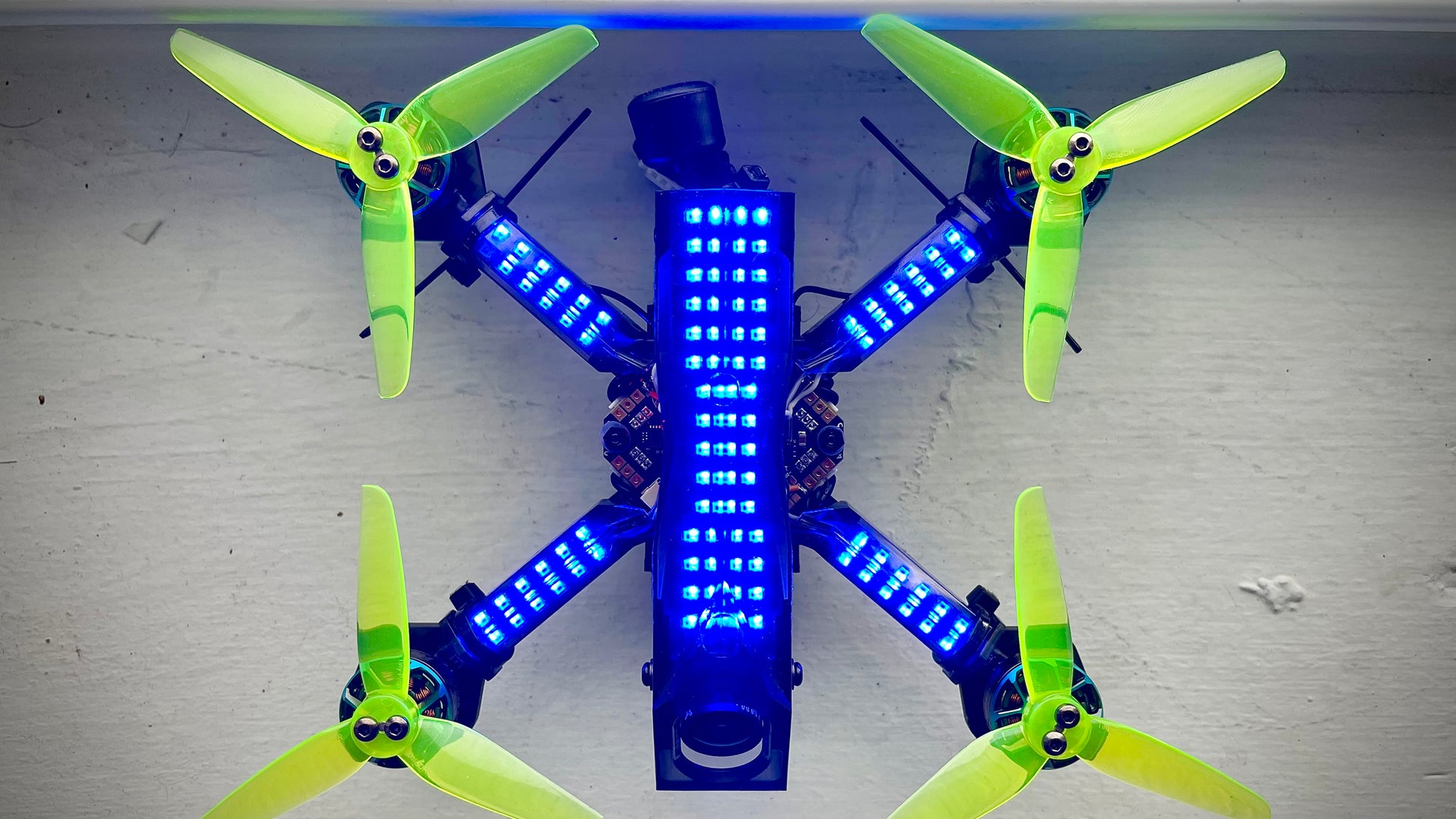

Then pick up this kit to make it easy to light up like the big quads.

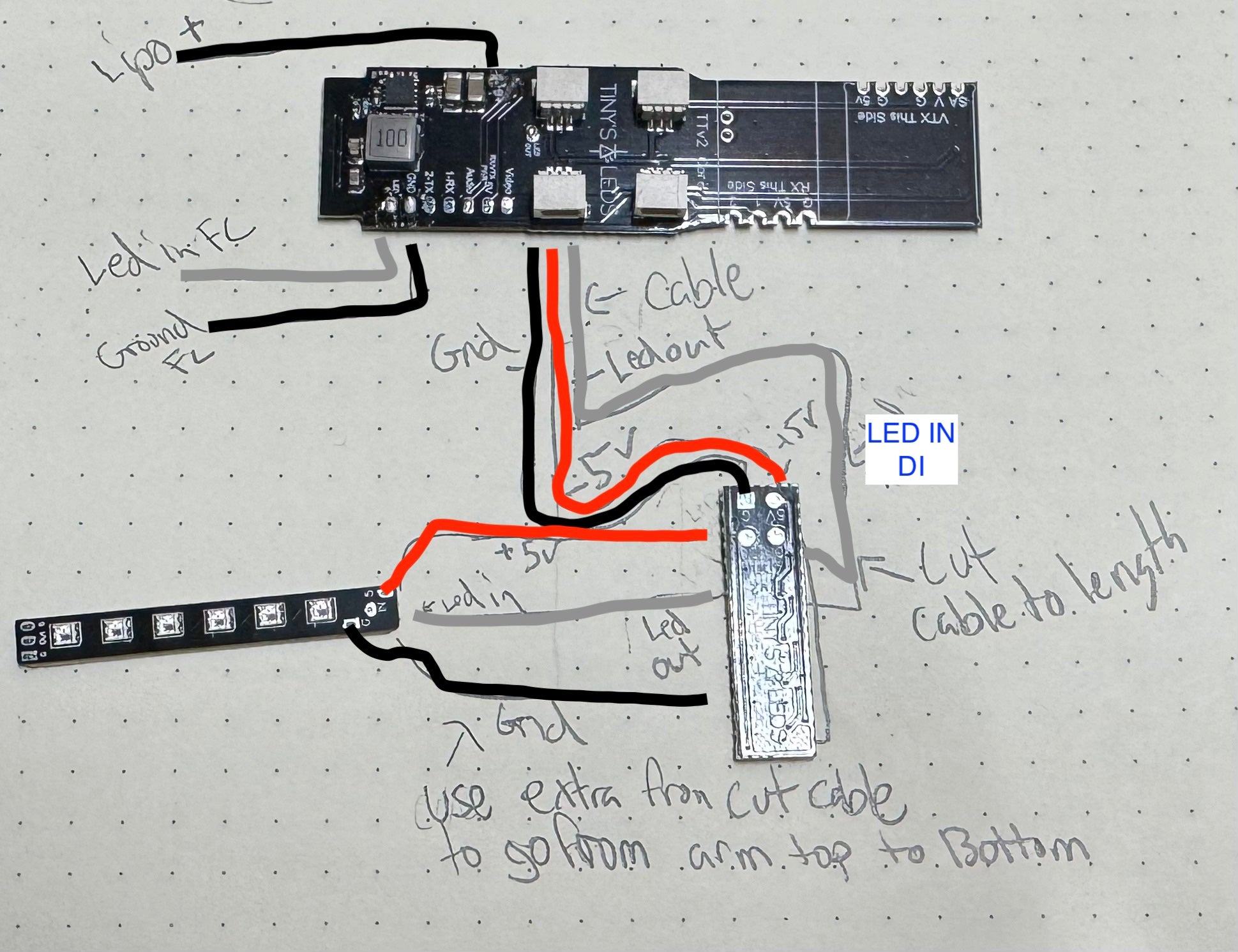

Notes. The LEDs for the arms are a tight fit and are mean to press fit in to the plastic notched area. They will not rest on your motor wires. If they do not fit you may need to shave off the edge of the PCB with a file or razor blade.
Contains:
Standard Kit:

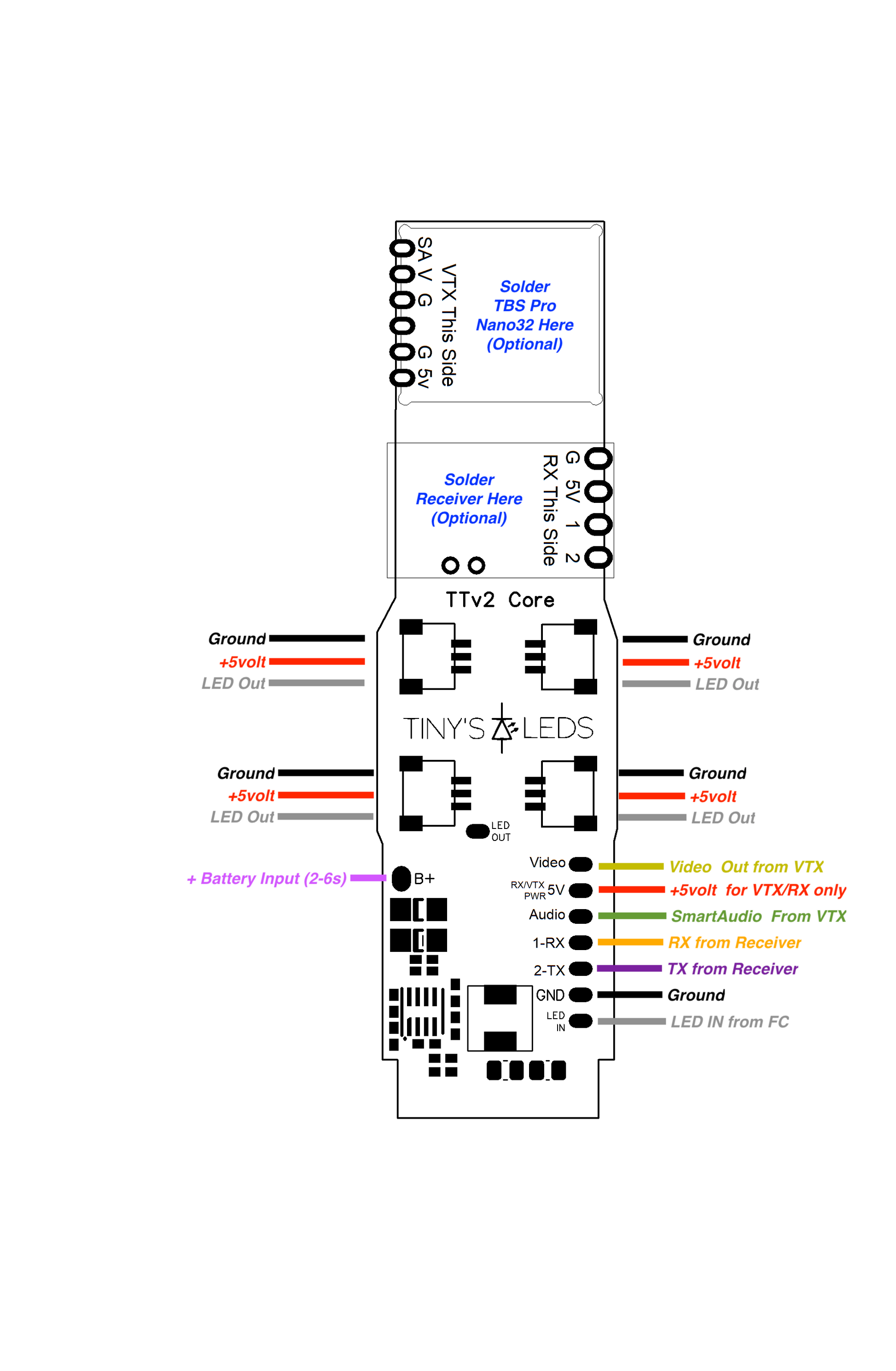

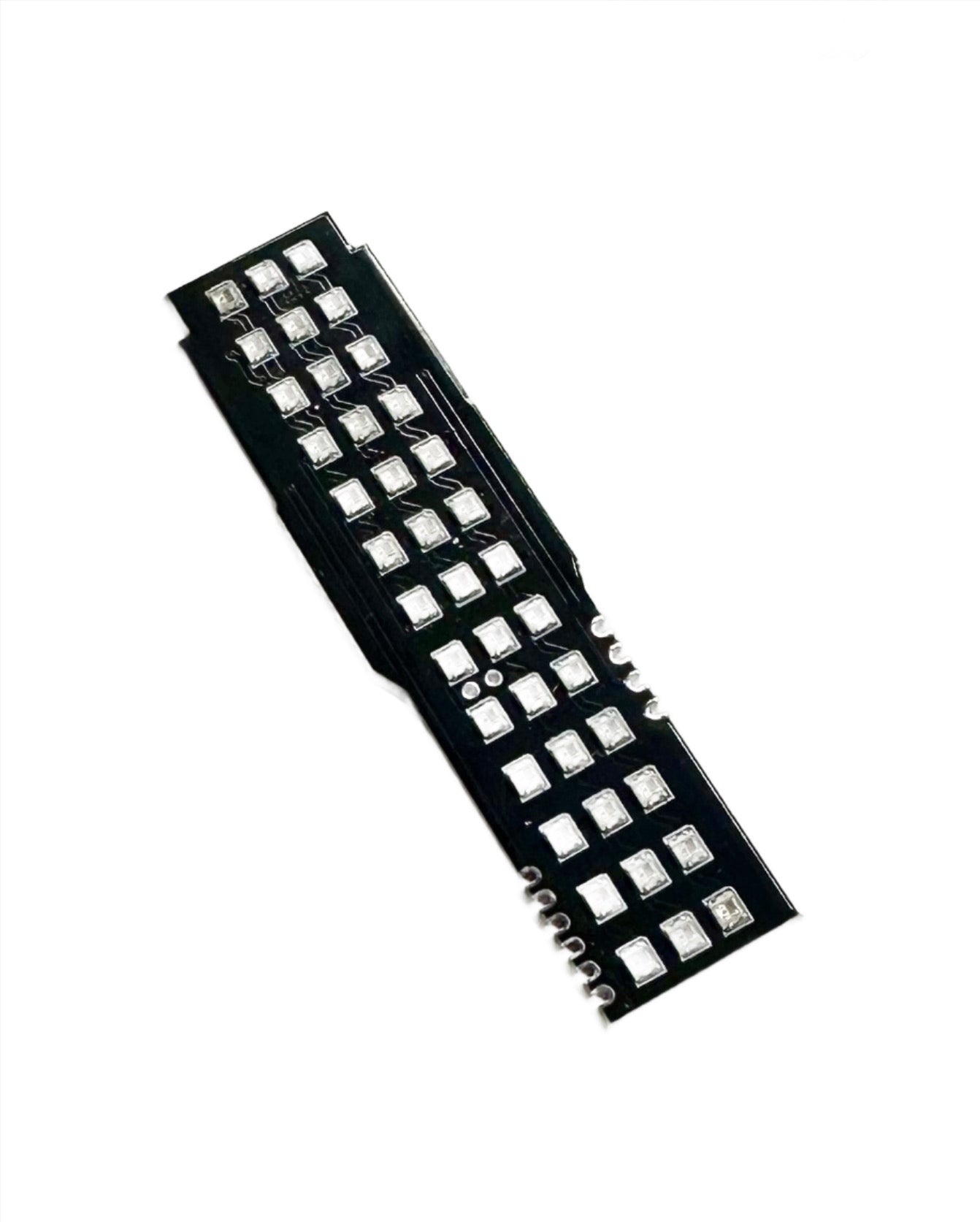

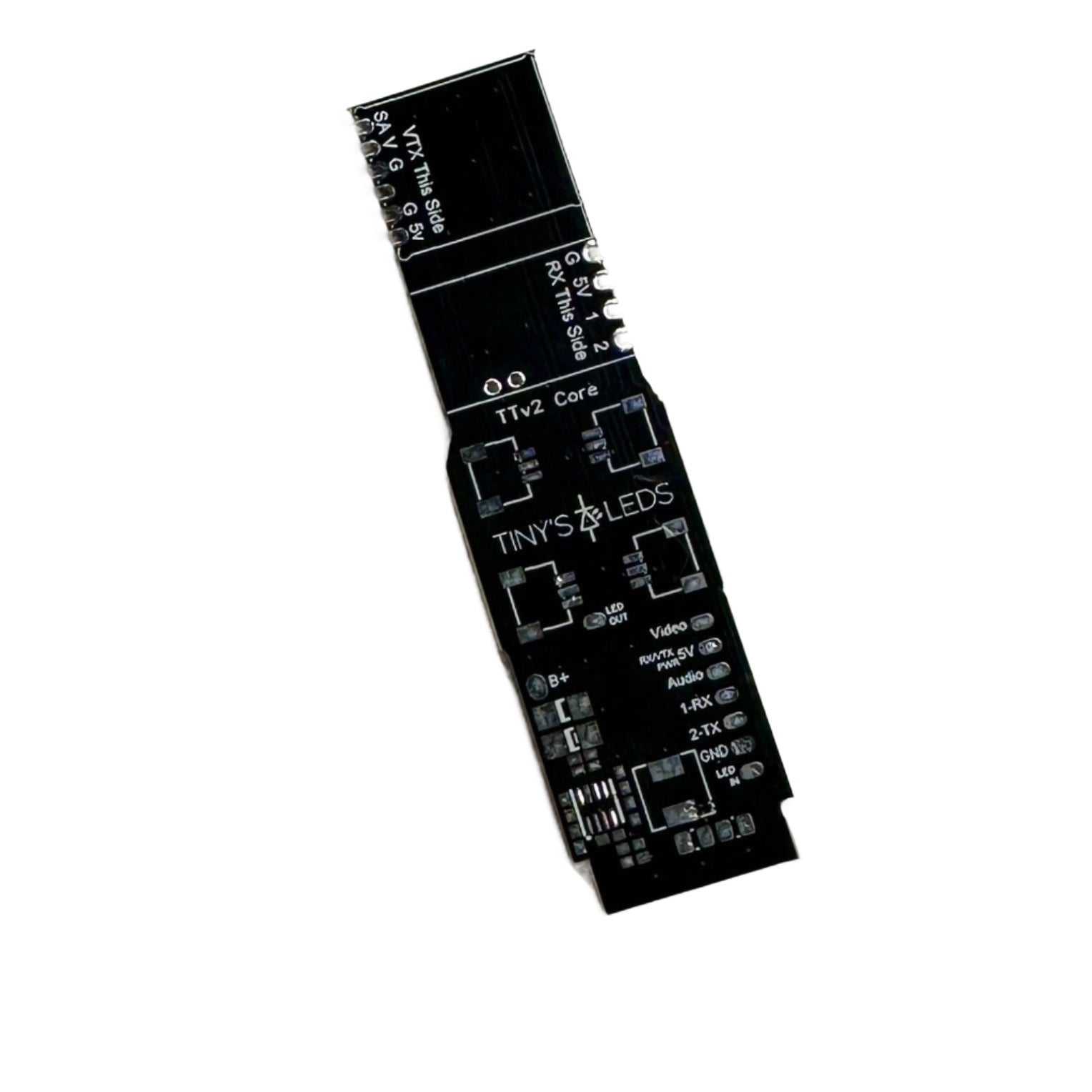

1x TTv2 Core LED + mounting Board
4x TTv2 Arm LEDS
Pro Kit: (add LEDs to bottom of arms.)
Standard Kit Plus:
4x TTv2 Under arm LEDs
Betaflight Setup.
Here is a quick CLI command config for LEDS
# feature
feature LED_STRIP
# led
led 0 2,3::C:1
led 1 3,3::C:1
led 2 4,3::C:1
led 3 5,3::C:1
led 4 6,3::C:1
led 5 7,3::C:1
led 6 8,3::C:1
led 7 7,5::C:10
led 8 8,6::C:10
led 9 9,7::C:10
led 10 10,8::C:10
led 11 11,9::C:10
led 12 12,10::C:10
led 13 13,11::C:10
led 14 14,12::C:10
feature LED_STRIP
# led
led 0 2,3::C:1
led 1 3,3::C:1
led 2 4,3::C:1
led 3 5,3::C:1
led 4 6,3::C:1
led 5 7,3::C:1
led 6 8,3::C:1
led 7 7,5::C:10
led 8 8,6::C:10
led 9 9,7::C:10
led 10 10,8::C:10
led 11 11,9::C:10
led 12 12,10::C:10
led 13 13,11::C:10
led 14 14,12::C:10
Save
