Brand:Tiny's LEDs

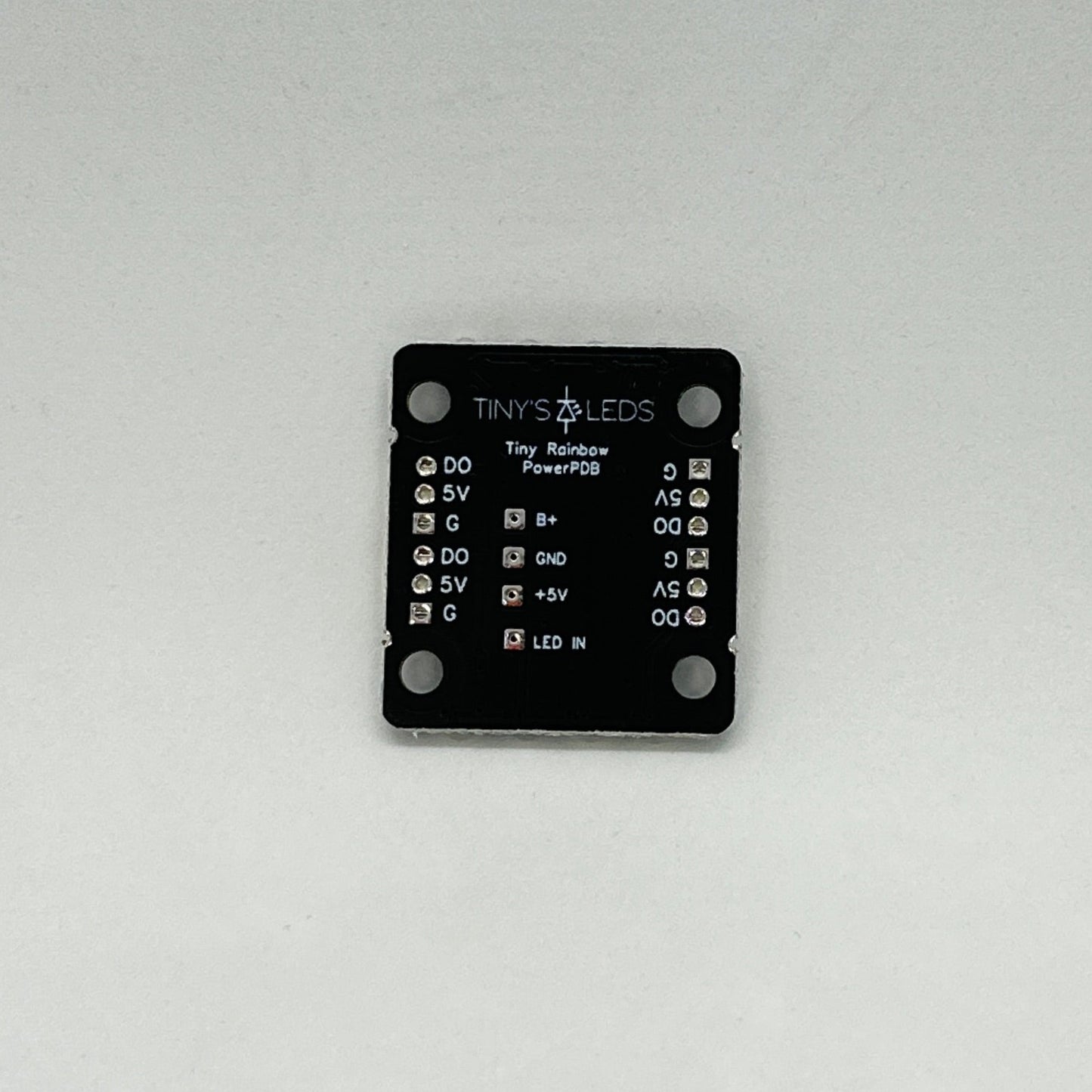

Tiny Rainbow LED Power PDB v2
Tiny Rainbow LED Power PDB v2
Regular price
$14.99 USD
Regular price
Sale price
$14.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
New V2 board, Thinner and lighter than before.
Tiny Rainbow LED Power Board PDB v2
Quick Setup Guide:
Copy and paste the below text into the CLI of Betaflight. This will turn on your LEDs. You can further adjust under the Betaflight LED Strip tab.
feature LED_STRIP
led 0 2,5::C:2
led 1 3,5::C:3
led 2 4,5::C:5
led 3 5,5::C:7
led 4 7,5::C:8
led 5 8,5::C:10
led 6 9,5::C:11
led 7 10,5::C:12
led 0 2,5::C:2
led 1 3,5::C:3
led 2 4,5::C:5
led 3 5,5::C:7
led 4 7,5::C:8
led 5 8,5::C:10
led 6 9,5::C:11
led 7 10,5::C:12
save
Features:
- 5 volt 2 Amp Regulator
- 8 Side Fire LEDs, ( 4 each side)
- Current: xxx mA per board on white.
- Mounting for 20x20 / M3 holes

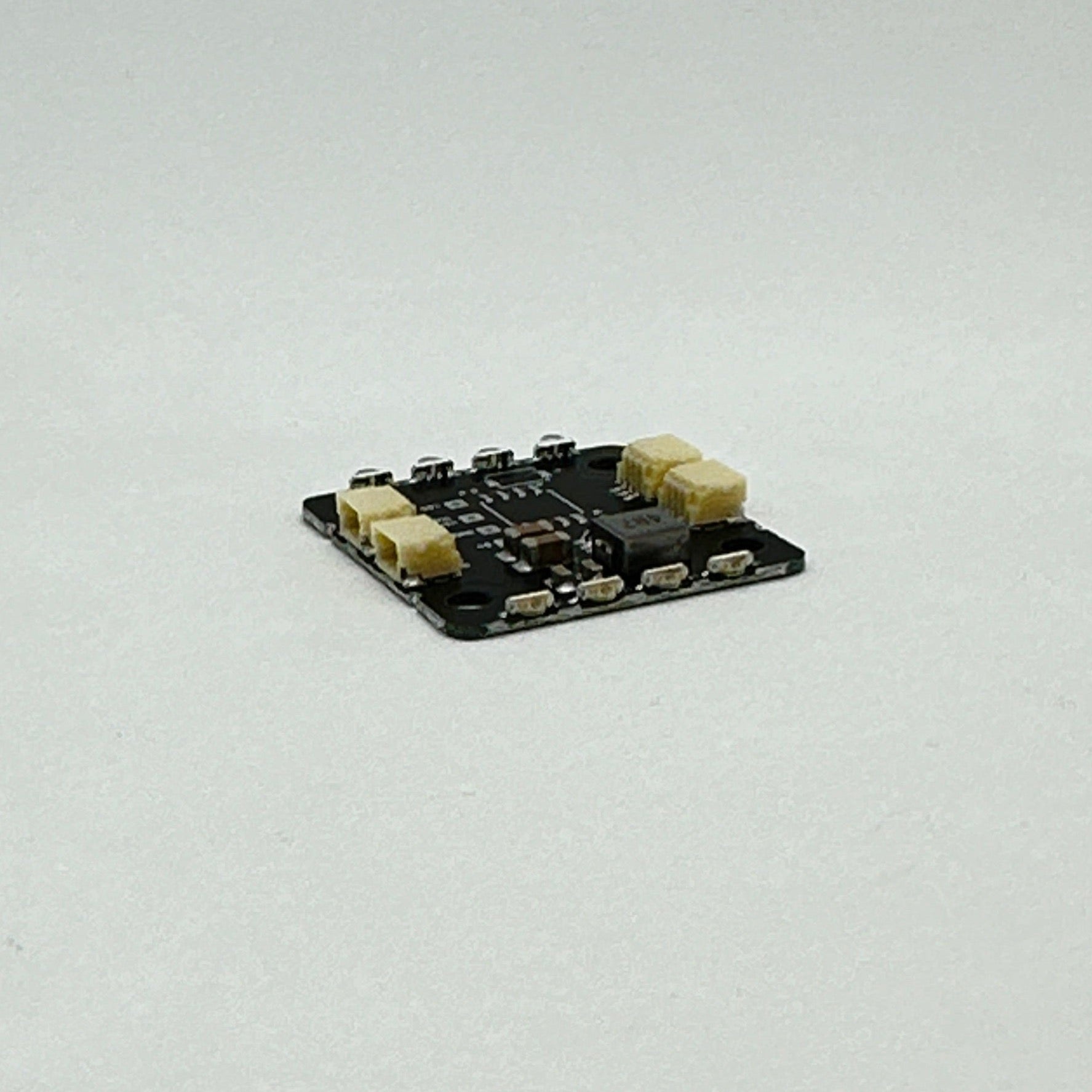

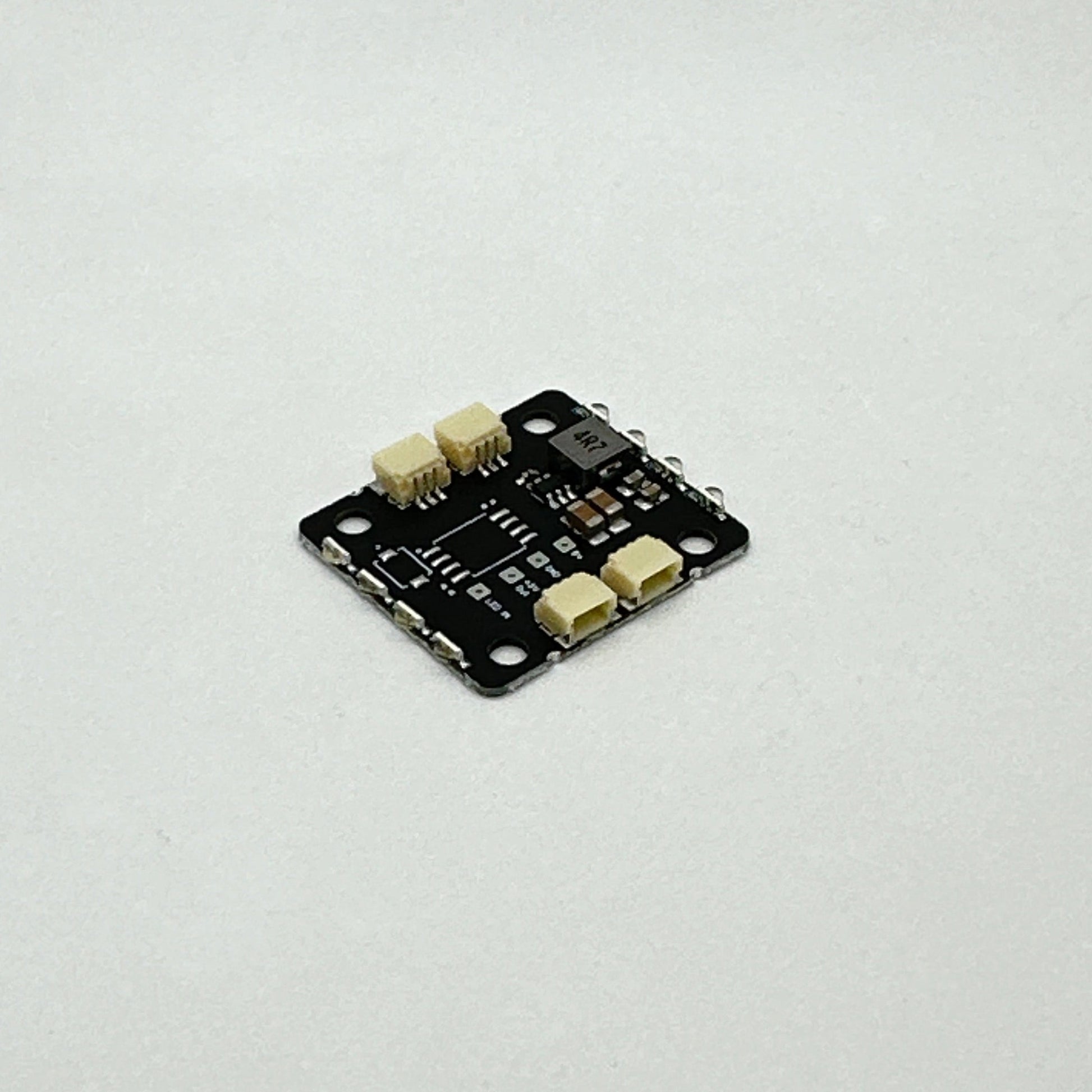

- JST-SH Connectors for Outputs to each arm.

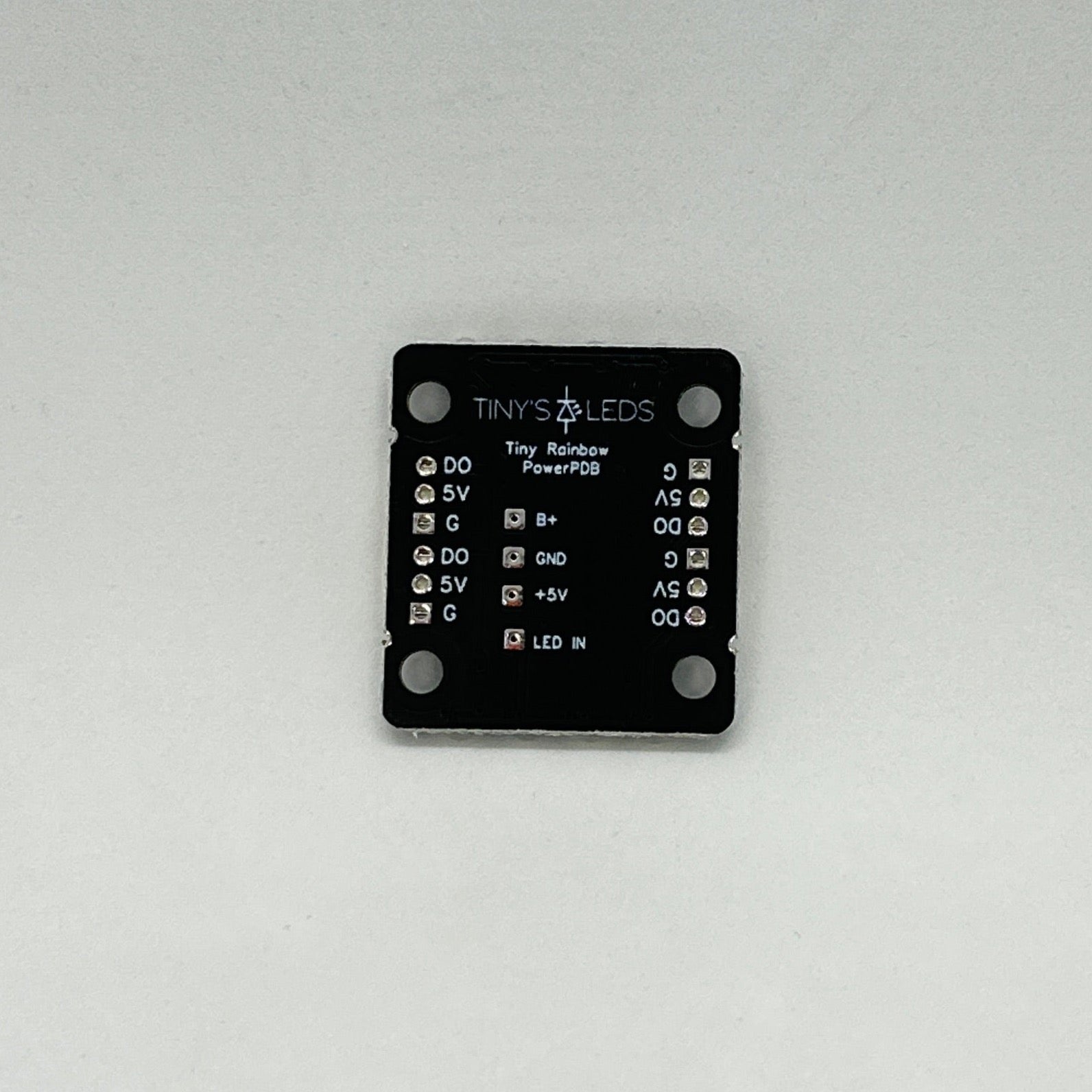

- Solder pads on bottom of board for extra leds. and backup if connector breaks during crash.
- Supports up to 44 LEDs
- Connect up 8 of the Tiny Rainbow V2 with the LED Wire kit and add 40 leds to your quad.
Instructions:
Wire 2-6s Input to B+ pad, Wire GND and LED DI to the Flight Controller. Setup betaflight as 1 LED ( All 8 on board act as 1 led in parallel, This is better for racing)
More Product details coming soon
Weight: grams
Dimensions:
Contains:
1x LED Power Board v2
