Brand:Tiny's LEDs

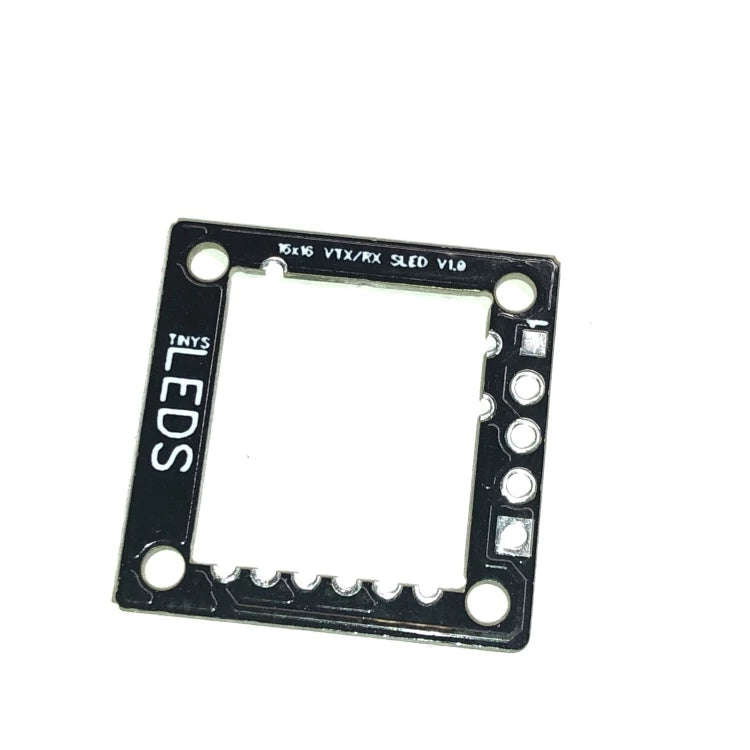

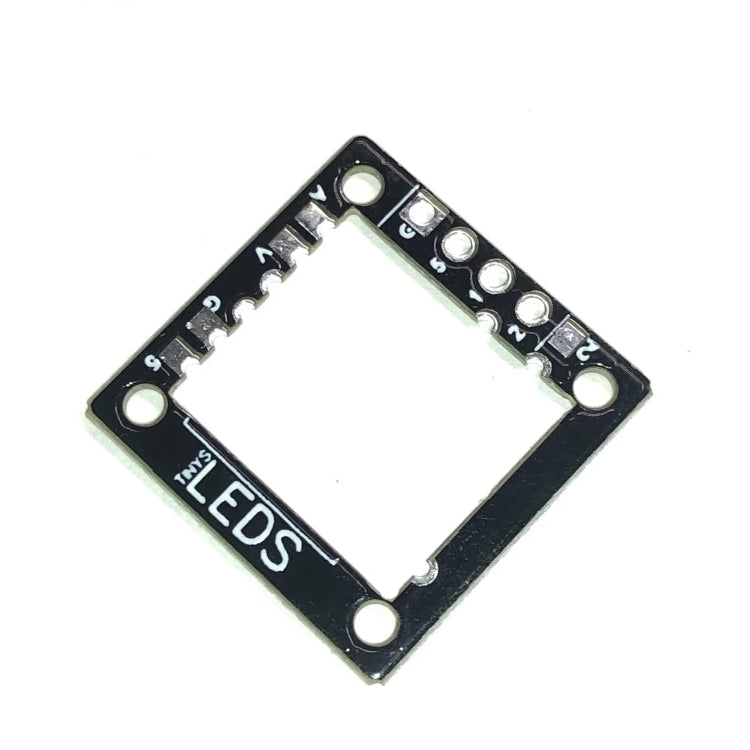

TBS Nano/Nano32 16x16 Nano VTX Sled

TBS Nano/Nano32 16x16 Nano VTX Sled

Regular price $3.00 USD
Regular price Sale price $3.00 USD
Sale Sold out
Shipping calculated at checkout.

16x16mm Mounting board TBS Nano VTXs and Crossfire Nano or FrSky XM/+ RXs  Or ELRS, IRC Ghost

Built for 16x16 M2 micro stacks

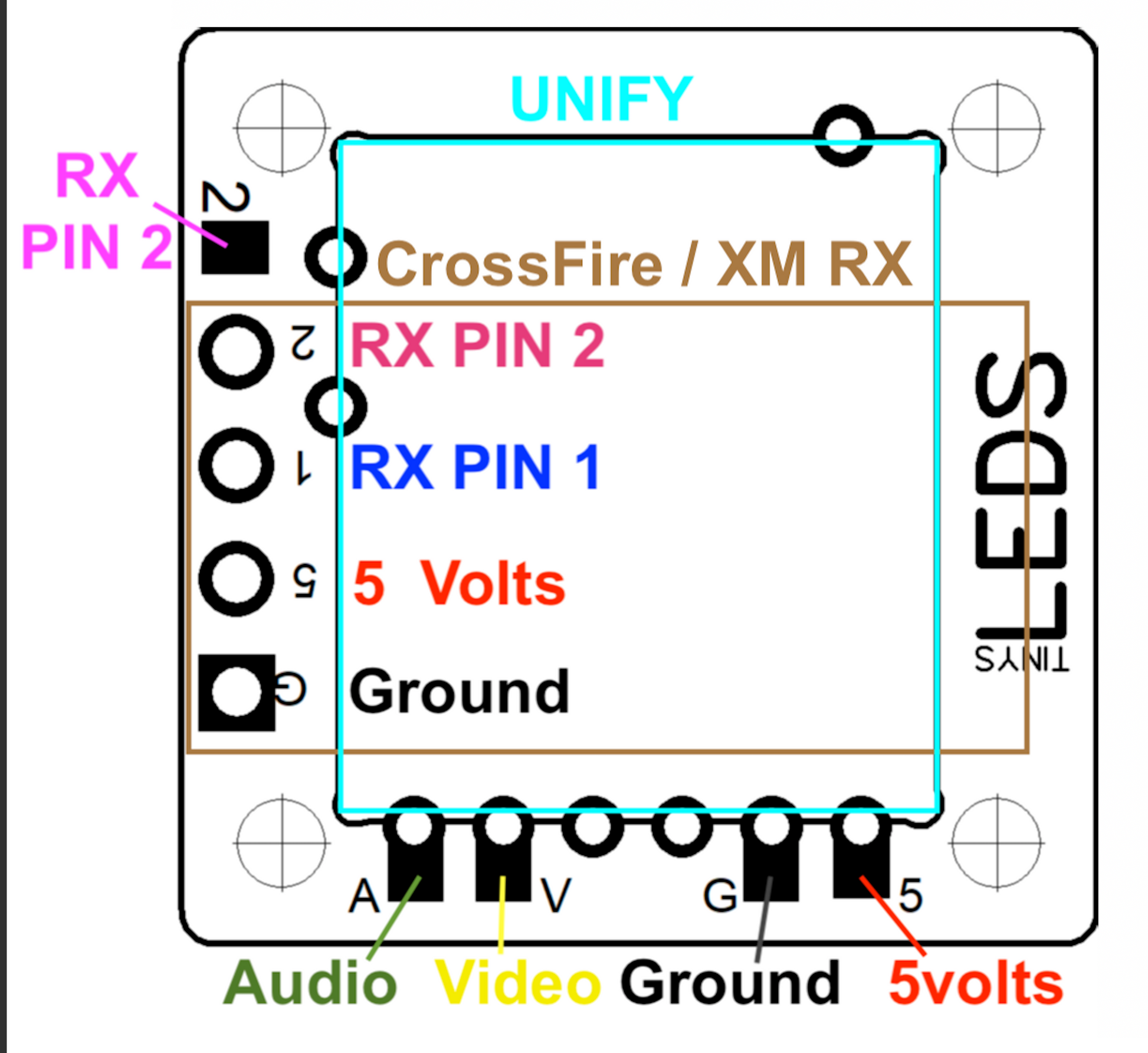

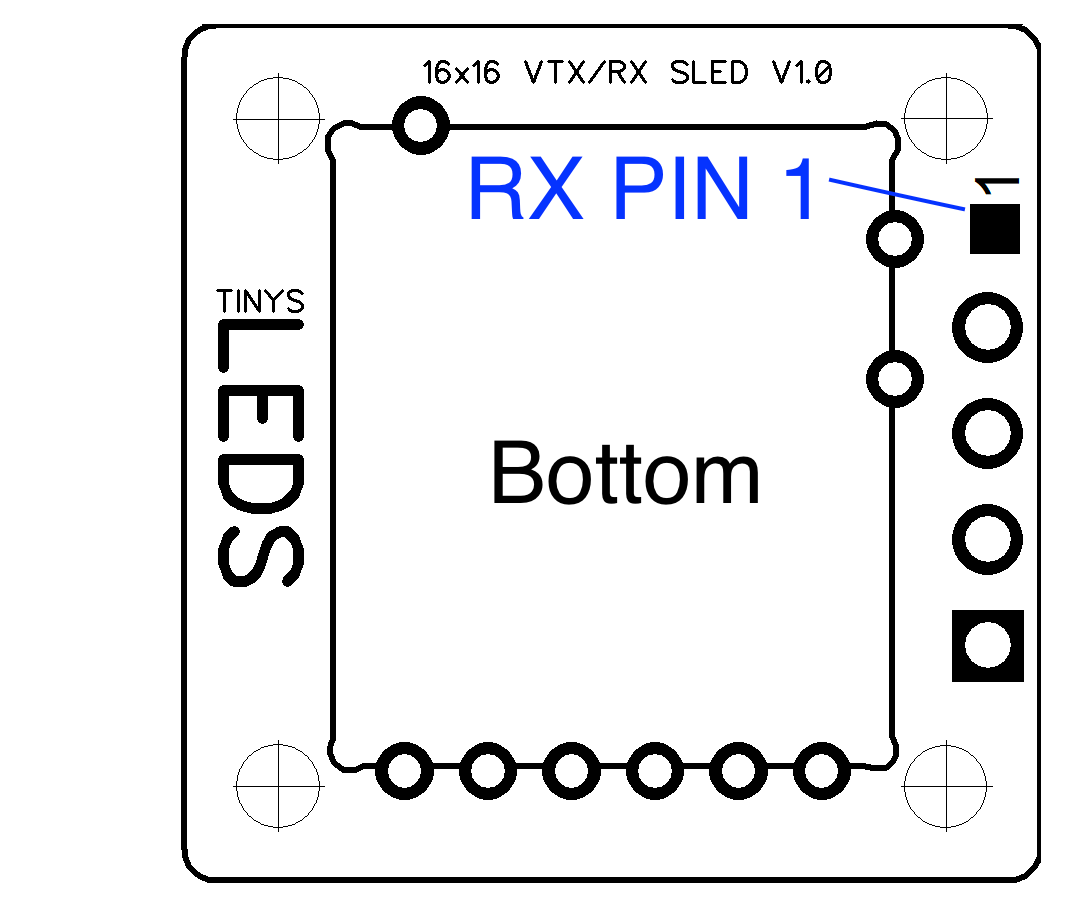

Receiver compatibility: This fits any RX that has a pin spacing of 2.54mm. All TBS and ImmersionRC Ghost RXs are 2.54mm as well as most Frsky RXs.  Express LRS Receiver ELRS receiver have some smaller receivers that will match up if you solder to the pads with pins. If you need pins for an ELRS rx please leave a note on your order or email back from your order confirmation. If nothing else small wires will work to clean up the traces to your RX.

Weight: .5 grams

Board Dimensions: 20x20

Mounting Holes: 16 x 16 mm M2 hole size
