TBS Diversity Nano RX Mounting Board

Tiny's LEDs

Regular price $2.99

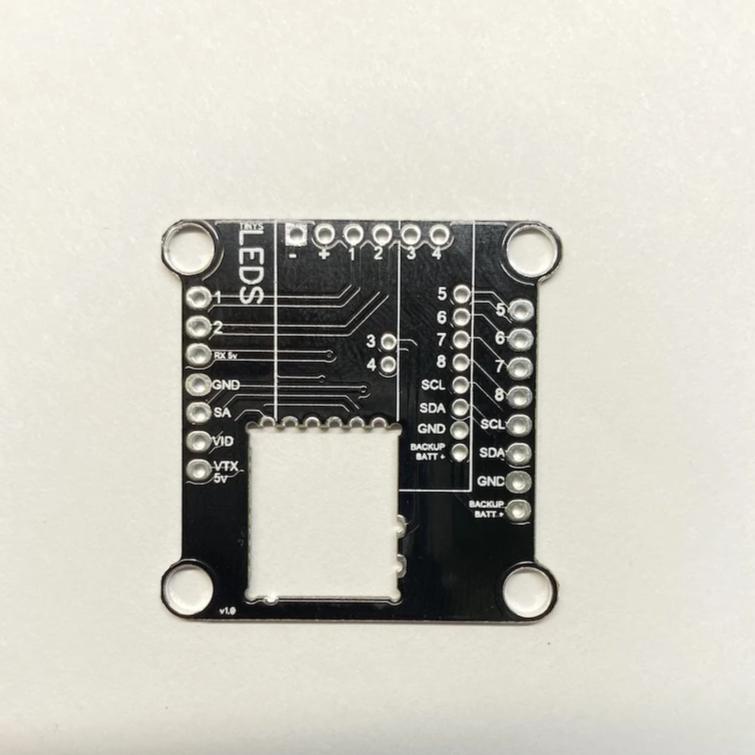

Mounting for TBS Diversity Nano RX and Unify Pro32 on 30x30mm stacks.

It will also work with Regular Nano RX  as well.

 Notes:

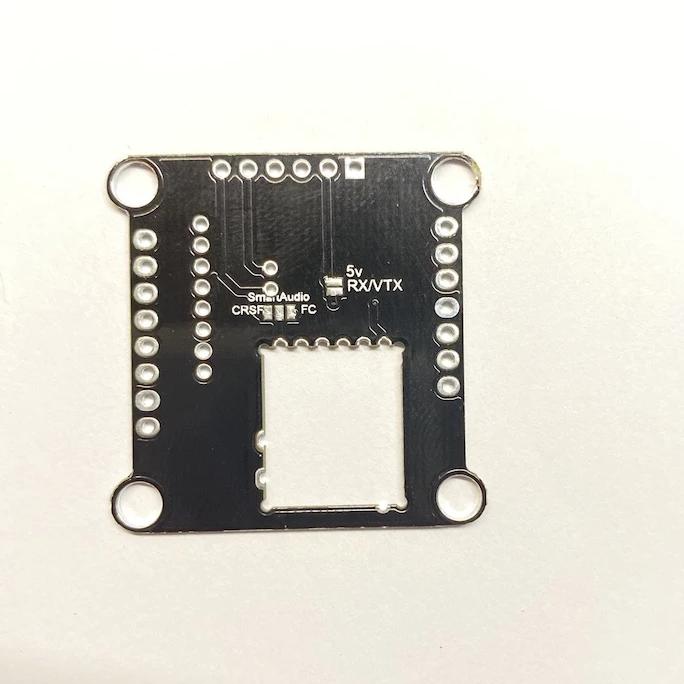

  • You must bridge solder selector on bottom of board for Crossfire RX or FC smart audio connection.
  • If you are not using a Pit switch for VTX connection, solder the 5v RX/VTX pad to pull 5v from the RX 5v pad to to power VTX. Do not connect both 5v RX and VTX 5v if this is bridged.
  • Will require 6x pins 2.54mm pitch and 8x pins 2mm pitch to mount RX on board.

Contents: 1 Mounting board

Weight: 2 grams
