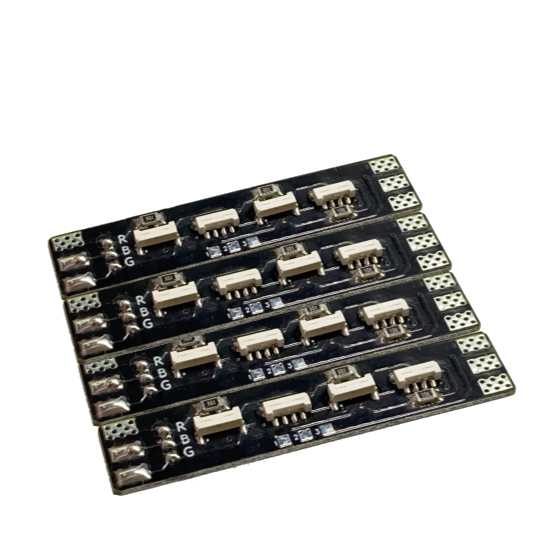

RGB SideFire RaceLiteWire LEDs Full Size

• 4x Side Firing RGB LEDs integrated into Racewire.
• Perfect for Vertical Arm frames
• Racelites brightness changes with throttle input. These are not constant on full brightness.  They illuminate only when motors are spinning.
• These are integrated Racewire and Racelites.
• These can be installed in any direction.
• There are pads to Allow you to wire up additional Racelites to the bottom of your Arms. Use the pads labeled "1,2,3" and wire them to the same pads on the under arm LED.
• You must insulate the bottom of the boards.

Color Breakout:

Not Soldered=  -

Soldered=  |

Blue / Red / Green

1. Yellow   - | |
2. White     | | |
3. Cyan.    | - |
4. Green    - - |
5. Blue     | - -
6. Red.      - | -
7. Pink/Purple  | | -

Specifications:

• Dimensions:8 x 40 mm
• Voltage: 4-6s
• Contents: 4x RGB RaceLiteWire Full Size Side Fire
