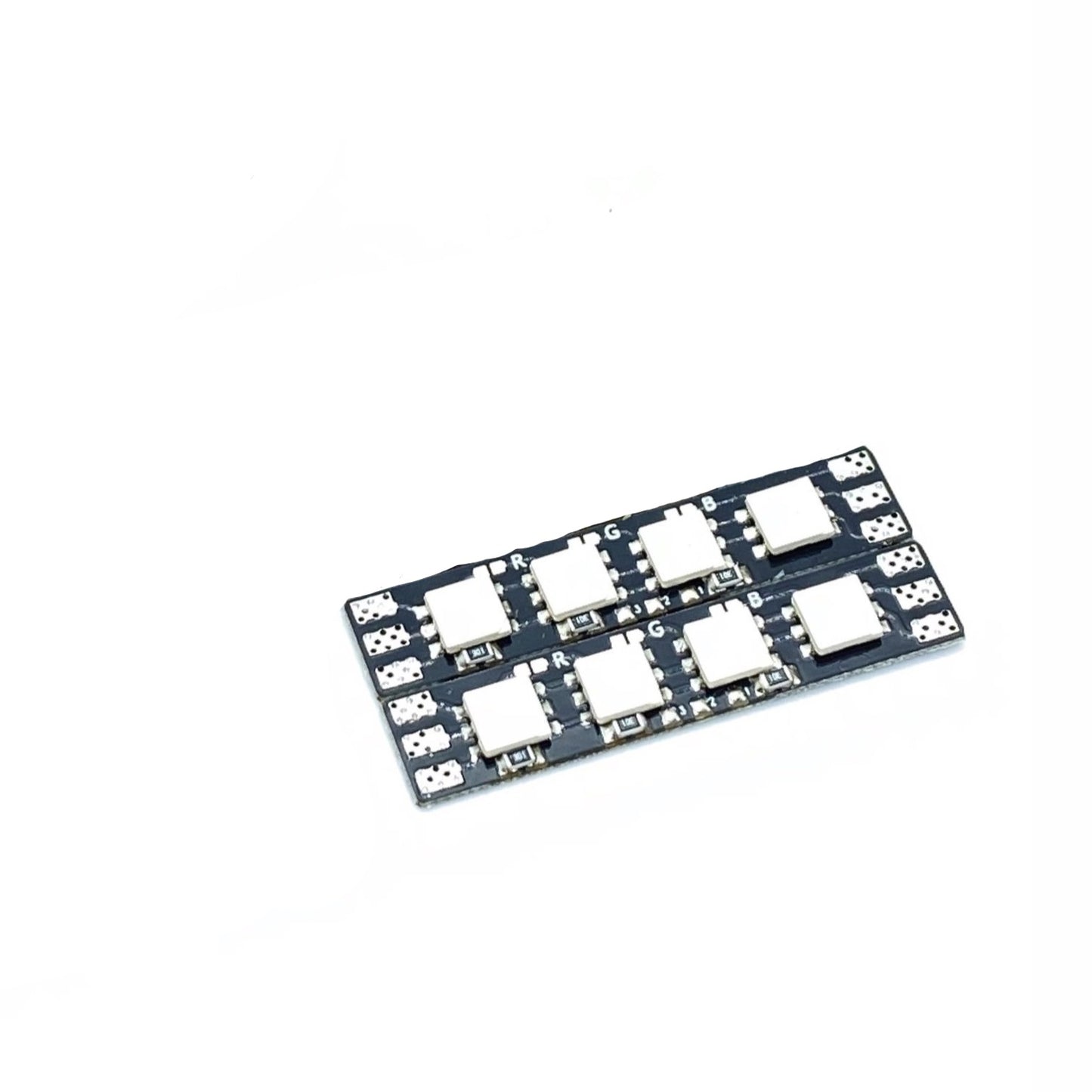

RGB RaceLiteWire LEDs (2-Pack)

Tiny's LEDs

Regular price $5.99

RGB RaceLiteWire LEDs (2-Pack)

  • ***Note*** This batch has a silk screen that reversed the R and the G. It is being corrected. Until then please swap the colors in the color chart. It does not affected usability or performance. It is purely cosmetic. Sorry for the inconvenience.



  • 4x 5050 RGB LEDs integrated into Racewire.
  • This is a 2 pack of RGB RaceLiteWires Full Size
  • These are integrated Racewire and Racelites.
  • These can be installed in any direction.
  • There are pads to Allow you to wire up additional Racelites to the bottom of your Arms. Use the pads labeled "1,2,3" and wire them to the same pads on the second Racelite. You must insulate the bottom of the boards.

Color Breakout:



Not Soldered=  -

Soldered=  |

Blue / Red / Green

  1. Yellow   - | |
  2. White     | | |
  3. Cyan.    | - |
  4. Green    - - |
  5. Blue     | - -
  6. Red.      - | -
  7. Pink/Purple  | | -

Specifications:

  • Dimensions:8 x 40 mm
  • Voltage: 3-6s
  • Contents: 2x RaceLiteWire

Check out how to use them HERE

View a video of the product in action.
