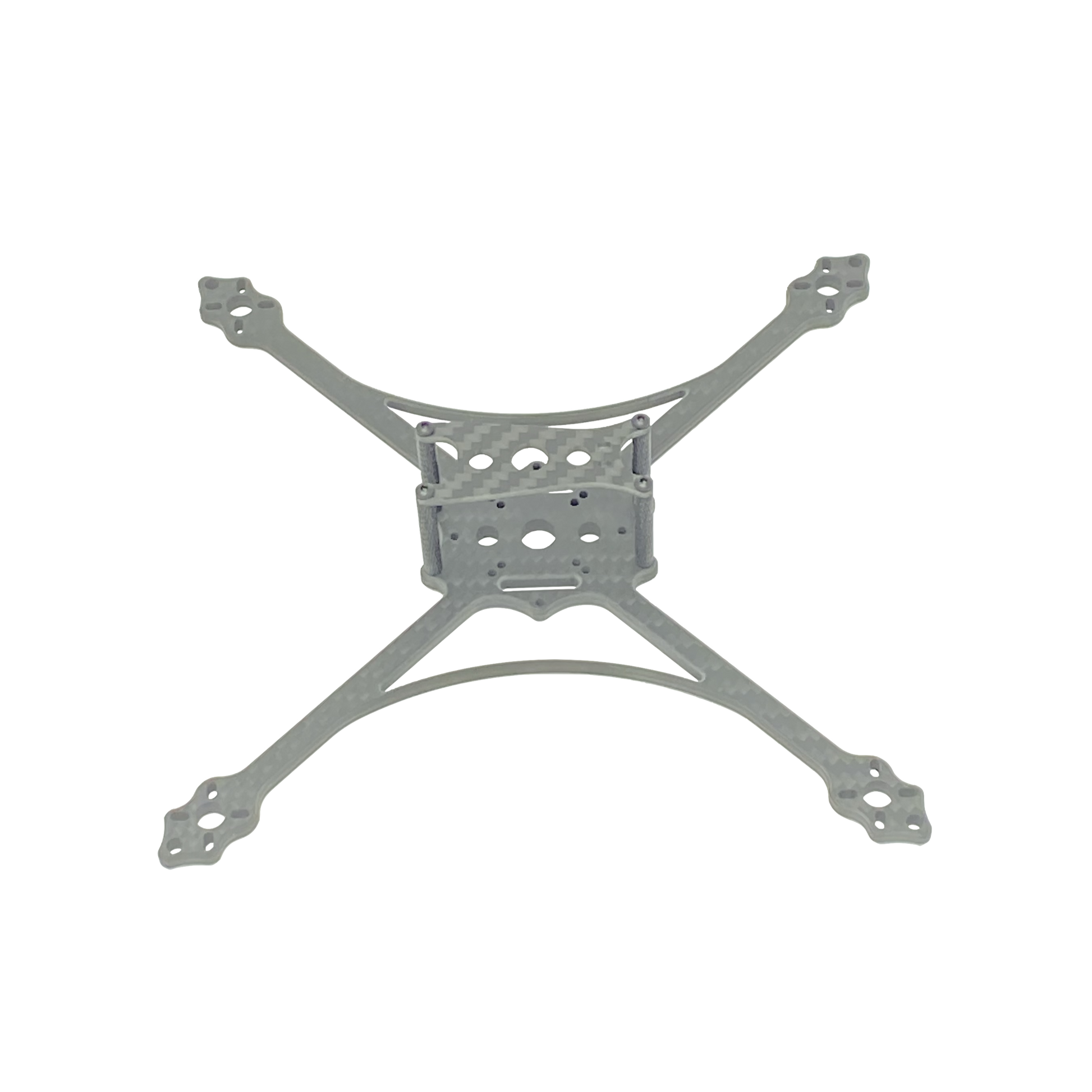

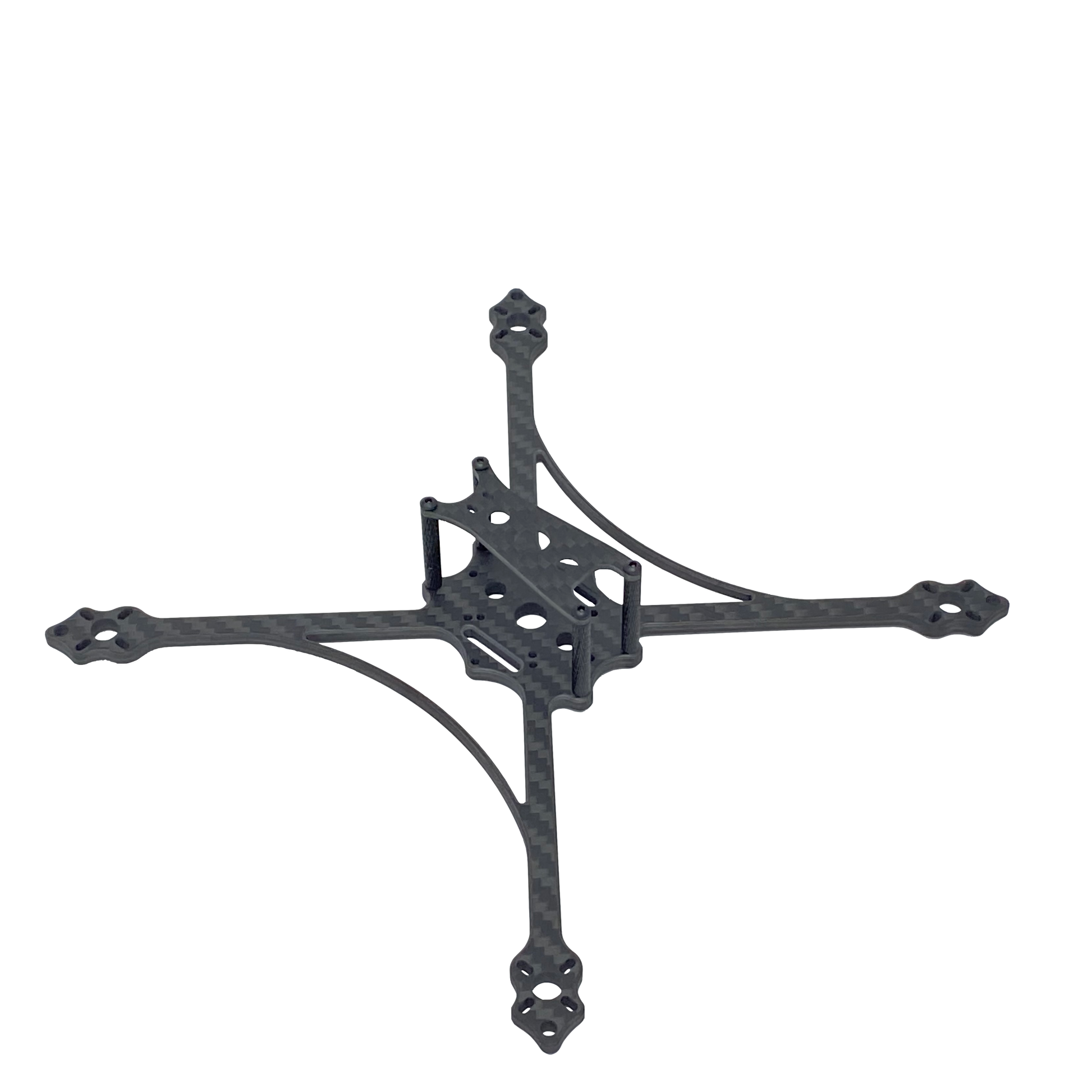

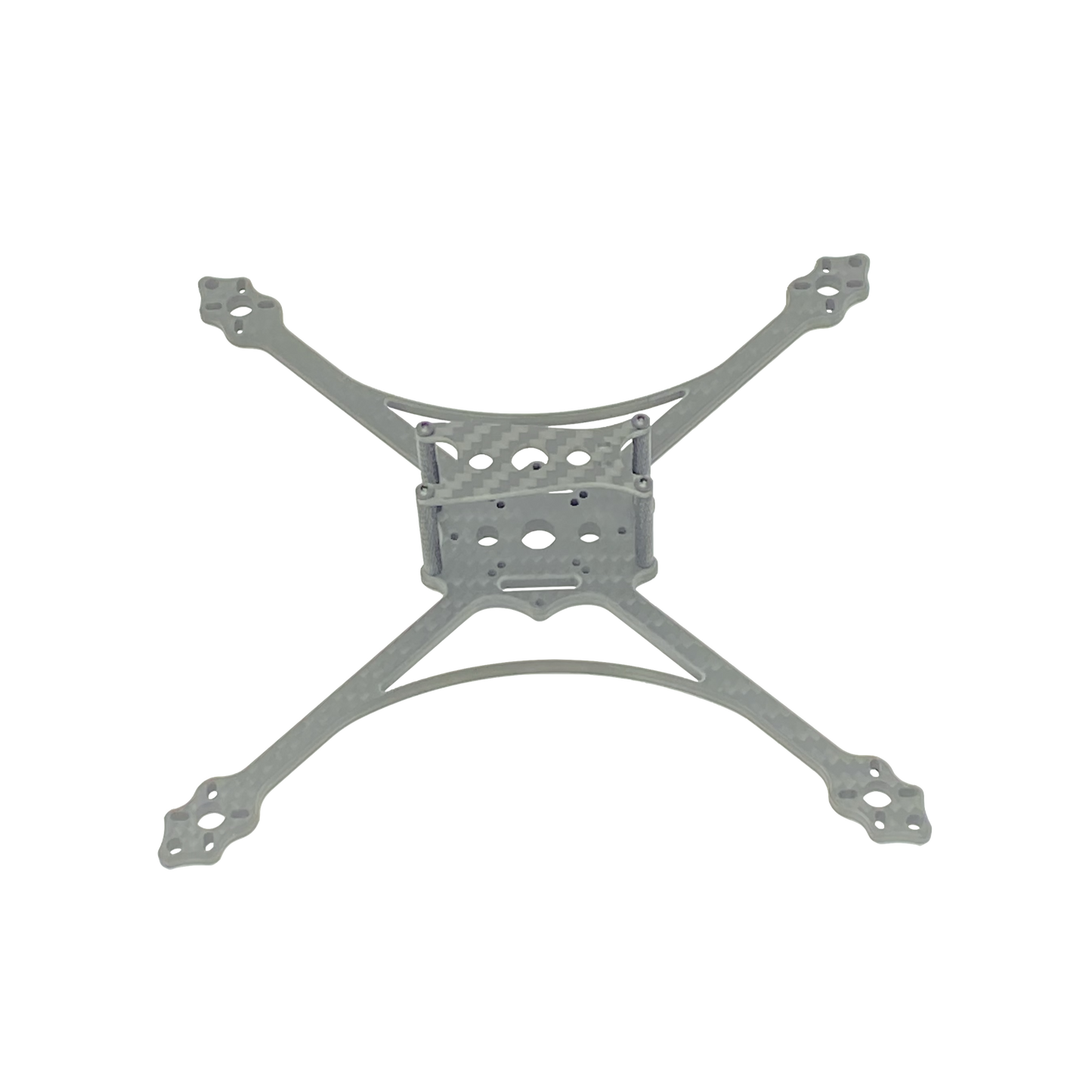

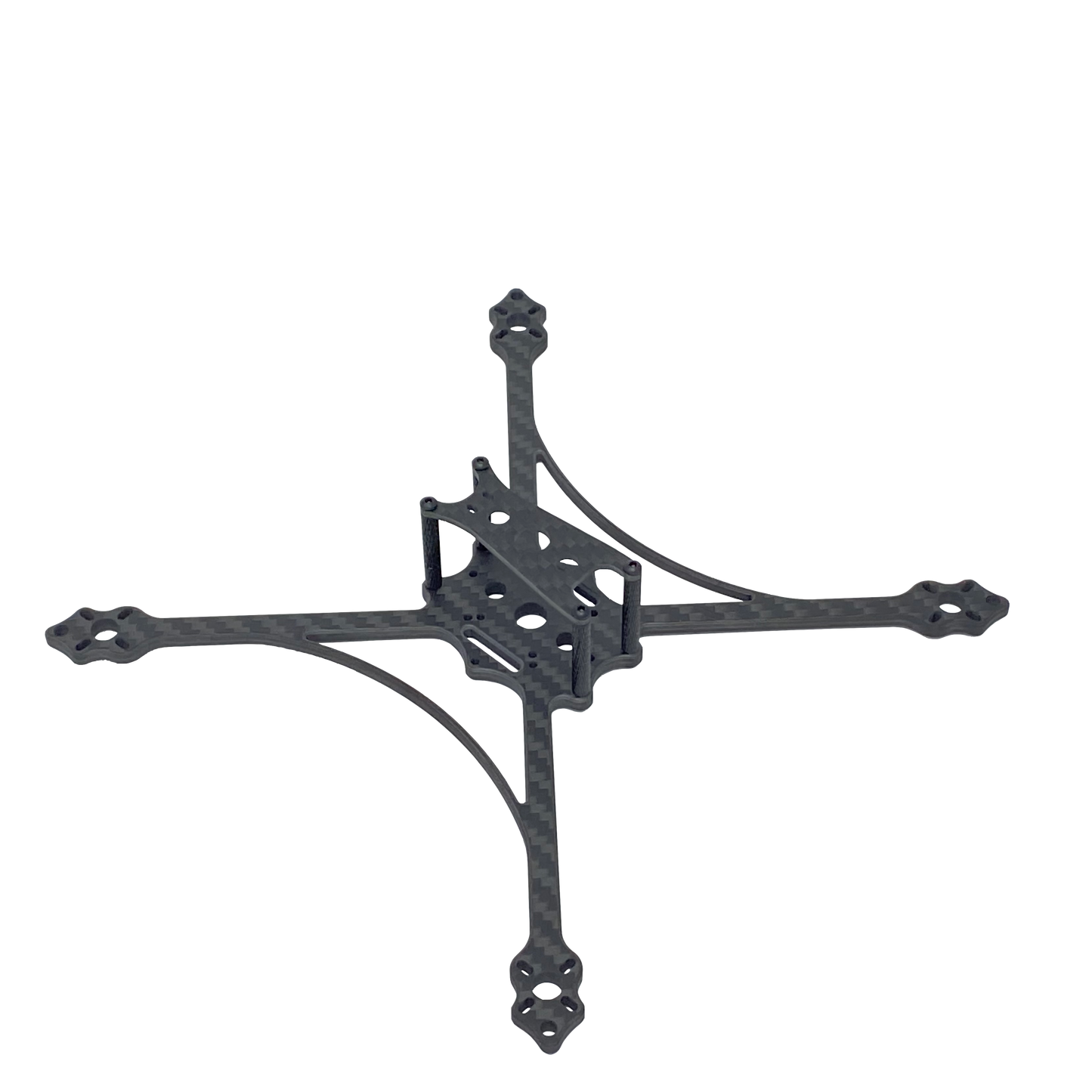

Oryp5 Ultralight 5" FPV Racing Frame

Oryp 5" Ultralight Frame

Built for Foxeer Pico cams, but a nano cam can fit in some arrangements inside. If not it will with it out front.

4mm Main Plate

5.2" Max Prop size

Electronics mounting Patterns:

• 25.5 Whoop AIO (Fits CLRacing AIOs)
• 16x16 & 20x20 Mounting patterns

Motor Mounting Pattern

• 12x12 M2

Weight:  30.18 Grams with hardware.

Hardware:

• 4x 25mm M2 Aluminum standoffs
• 8x 8mm M2 Screw

Free with every frame:

• 4x Micro Racewire

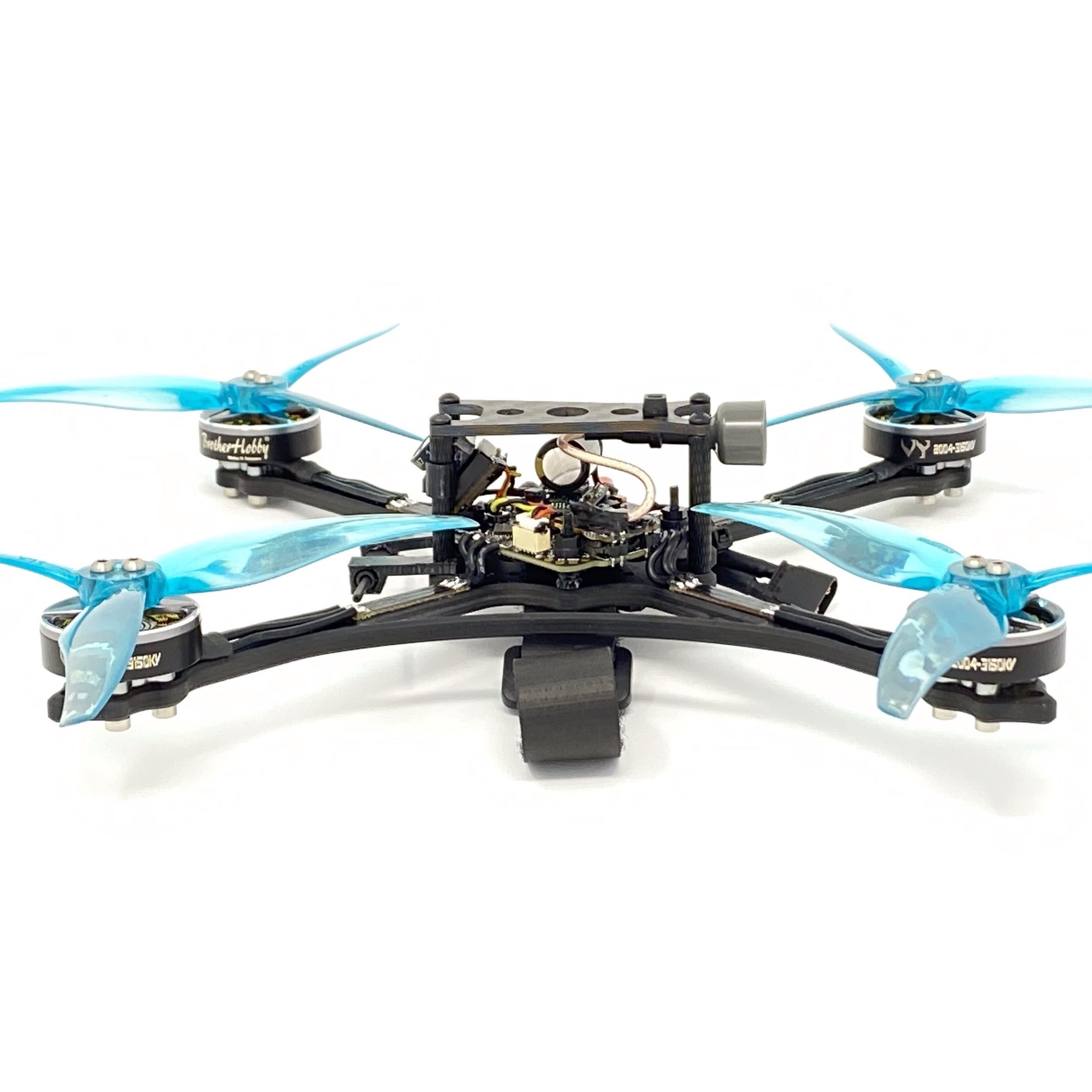

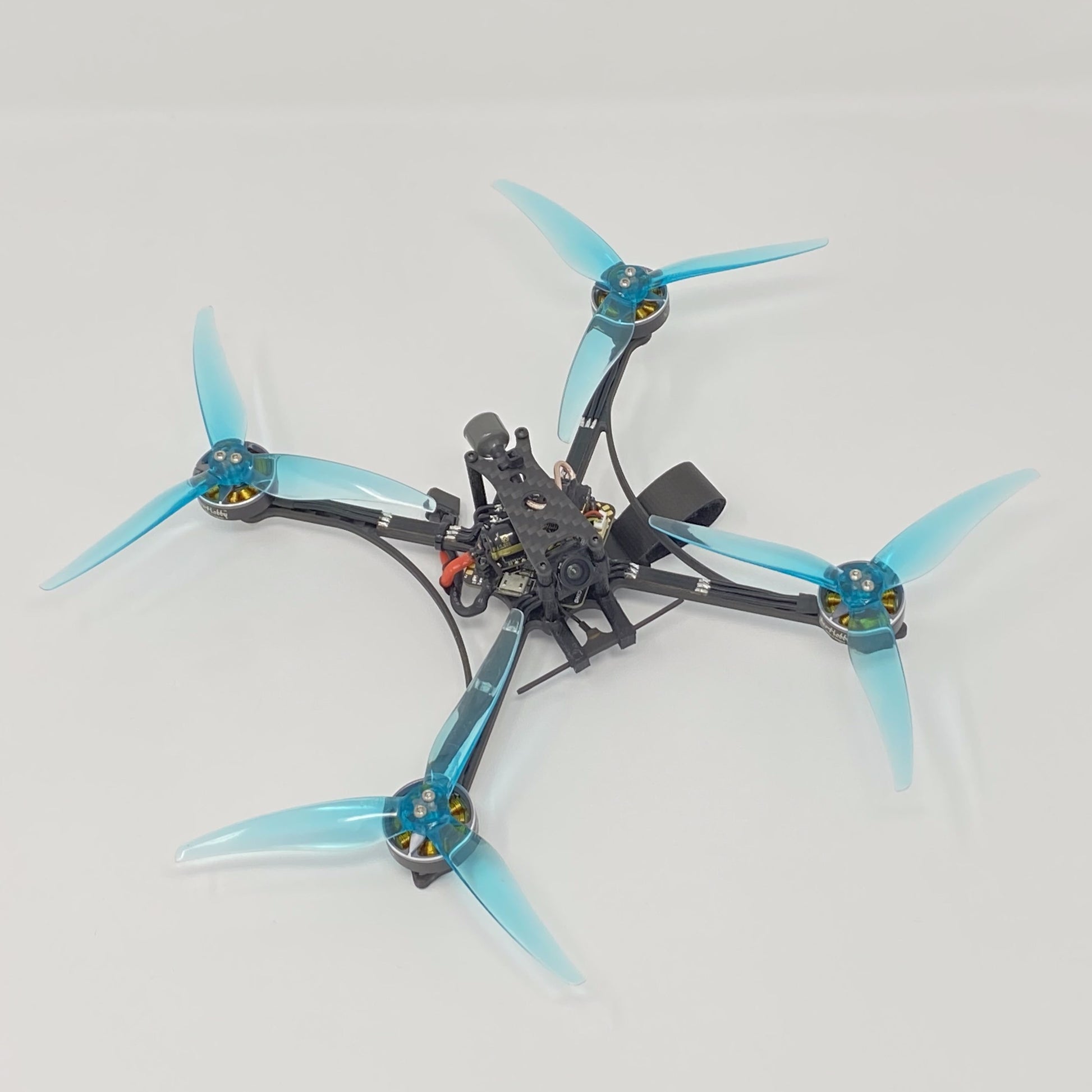

Preferred Build Components:

AIO/FC/ESC: CLRacing 20a 32bit AIO

Camera: Foxeer Pico

Motors: BH VY2004

Props: Gemfan SL5125

VTX: TBS Unify Pro32

VTX Antenna: TrueRC Singularity Short

RX: XF Nano or XM+ or M+

RX Antenna: Minimortal T

Battery: 850mah 4s or 550-650mah 6s
