Grab a LED for the new MultiGP Pro Spec Racing frame LED Kit:
https://wrekd.com/products/multigp-pro-spec-stock-racing-frame
https://shop.multigp.com/product/pro-spec-frame-kit/
***WIP Description**

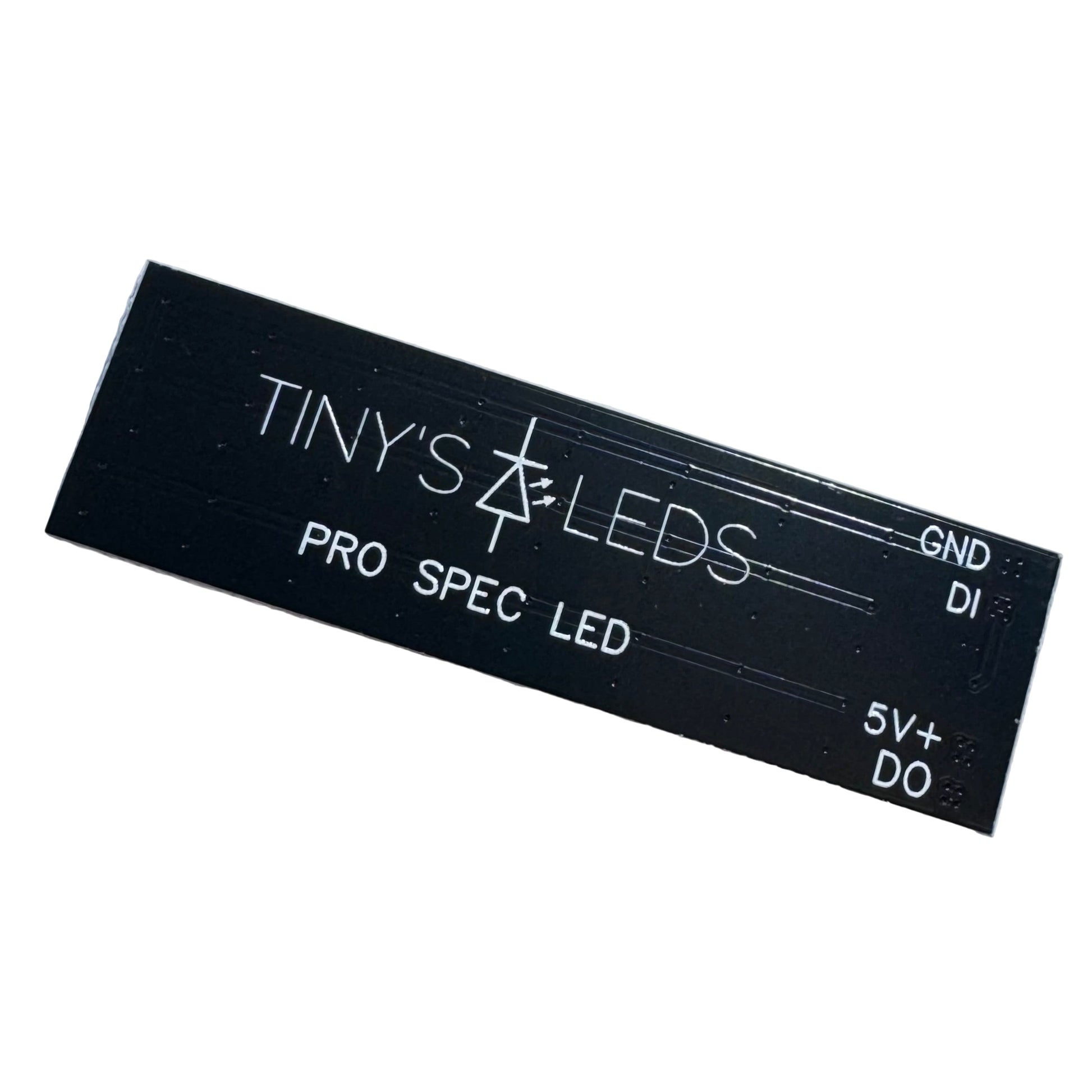

33x Addressable FC 5v LEDs. Perfectly fit for the Top plate of the ProSpec Frame.
All LEDs are configured the same in flight controller as 1x LED. This allows for damage to a single LED not cause the entire board to stop working.
Solder pads or 4 pin connector. Grab an InfiniRainbow PDB to make the wiring easier.

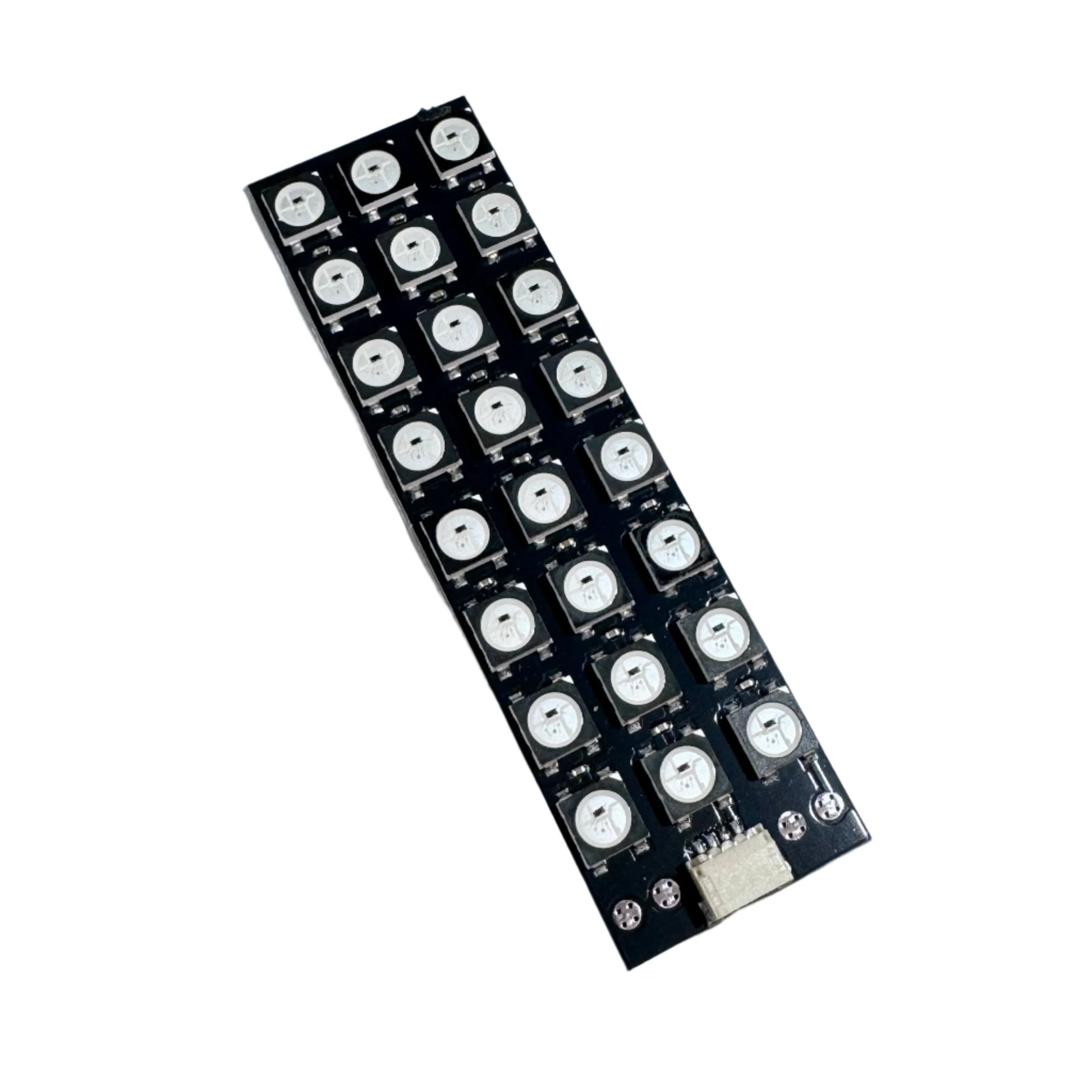

24x Addressable FC 5v LEDs. Perfectly fit for the Top and bottom of the arms of the ProSpec Frame.
All LEDs are configured the same in flight controller as 1x LED. This allows for damage to a single LED not cause the entire board to stop working.
InfiniPowerPDB 6amp Total split between 3 regulators.
2-6s input, 3x 2amp 5v output.
1-2 Ports share 2amp BEC, 3-4 Share 2amp BEC, 5 on 3rd 2amp BEC
5 Outputs with JST-SH 4 Pin connectors from the InfiniRainbow Collection.
You do NOT need the infiniRainbow cables. You can use any standard Tiny Rainbow 3 wire cables. Insert to the left of connector leaving the right most pin open. This will require soldering the bypass bridge.
Each BEC/Regulator powers 1-2 outputs.
30x30 or 20x20 mounting
Pads next to connectors allow for connector or wire soldering connections.
Weight: x.x Grams

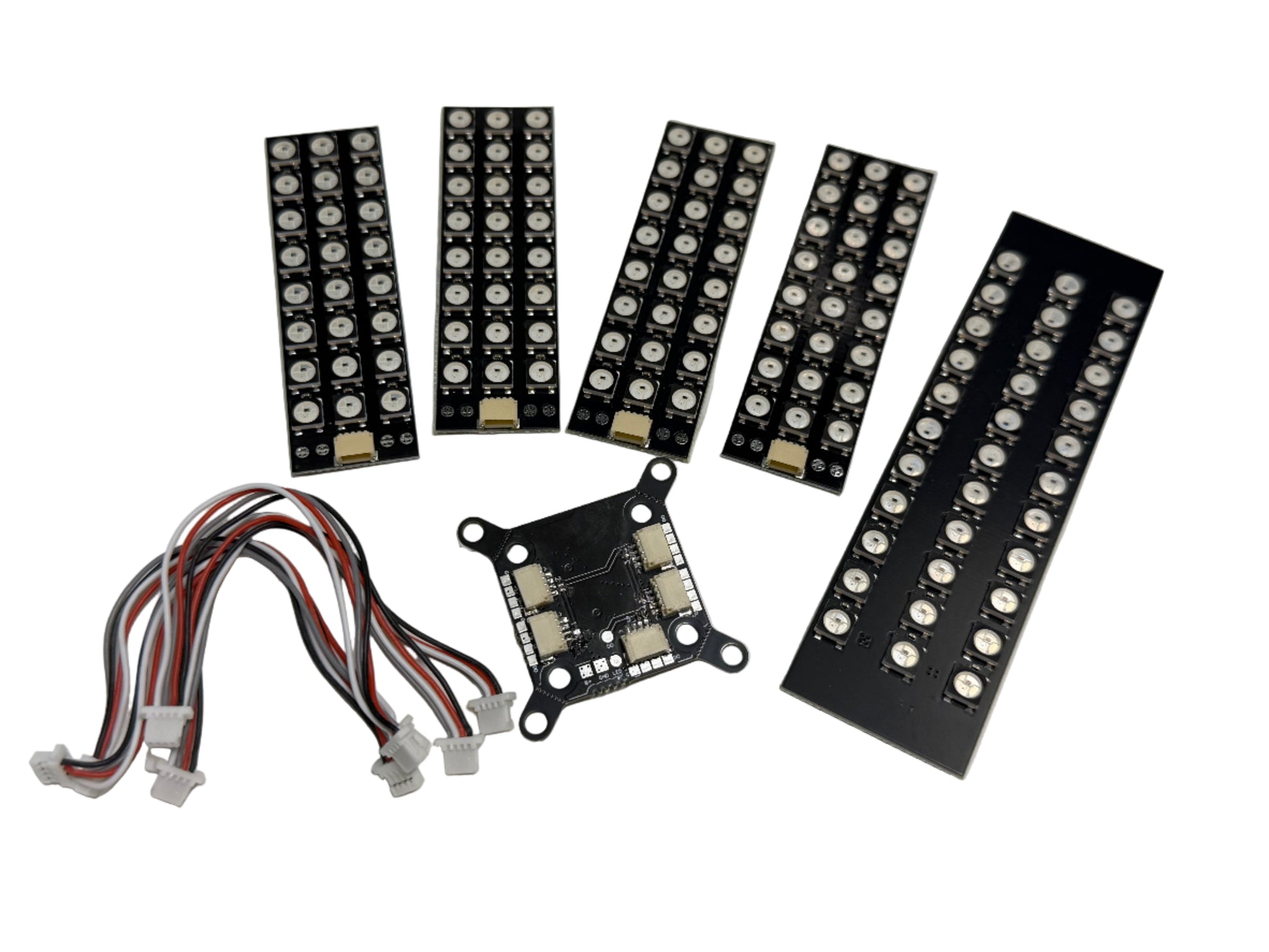

Contains:
1x Pro Spec Top Plate LED
4x Pro Spec Arm LEDs
1x InfiniPowerPDB
1x IniniRainbow Cable Set (4x 100mm / 1x 40mm)
