Mini 2 - 12s LED PDB with 15a FC Switch

Mini 2 - 12s LED PDB with 15a FC Switch

$5.99 USD
$5.99 USD
Sale Sold out
Shipping calculated at checkout.

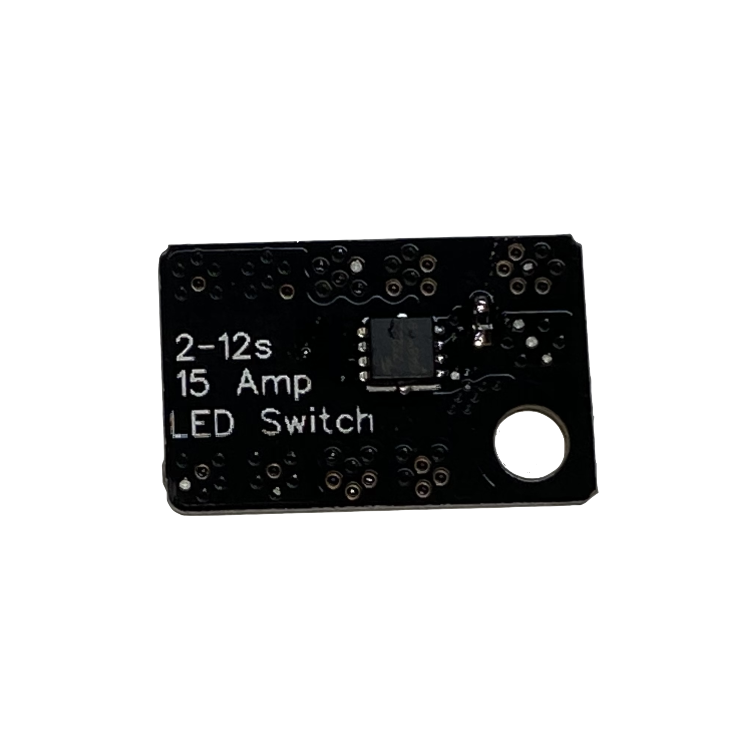

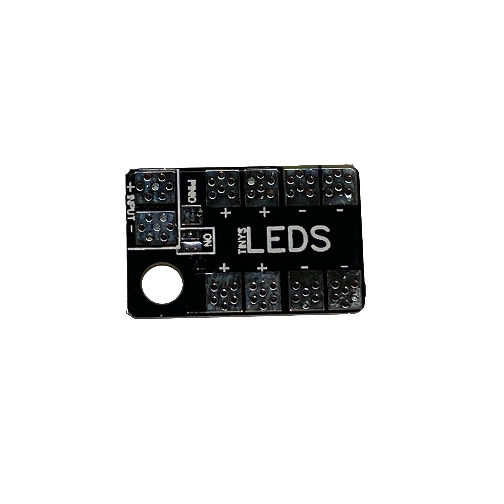

M3 Screw Mountable board with 4 outputs. Provide Full Lipo battery to input and wire PINIO pad to FC for easy powering on and off LEDs.

Bridge or un-bridge Bypass pad to use without FC.

Dimensions: 12x18.5mm

M3 Mounting hole

Voltage: 5 - 54 volts (2-12s)

Current Limit: 15 Amps

Weight:  .5 grams

Contents: 1x LED PDB

 X class xclass

Currently Supported Software:

  • Betaflight (PinIO)
  • Butterflight (PinIO)
  • FlightOne 1.2.4+ (PINTOGGLE)

Betaflight Settings:

In CLI:

Type RESOURCE

Locate UART TX/RX pad resource ID you are using.  We wired to RX4 in this demo. RX4 is A01  Note the name of resource and ID.

Next we will clear that pad from its assigned resource.
Type
RESOURCE SERIAL_RX 4 NONE

Next we will set the Custom Mode Switches. We will set up 4 switches for up to 4 Realpits. Copy and past these Commands into CLI:

set pinio_box = 40,41,42,43
aux 2 40 2 1600 2100 0
aux 3 41 3 1600 2100 0
aux 4 42 4 1600 2100 0
aux 5 43 5 1600 2100 0


Next we need to assign the Resource ID to the Custom Mode switch. Using the Resource ID from above. "A01"

resource PINIO 1 A01

If you wish to set up more pads for additional RealPits. replace the area in brackets with your resource IDs:


resource PINIO 2 [resource=I.E=A04]
resource PINIO 3 [resource=I.E=A05]
resource PINIO 4 [resource=I.E=A06]

Type  SAVE  in CLI and then press enter. Your FC will reboot after applying changes.

Now go to Modes and Assign an AUX channel to the USER1 mode. Just like an arm or turtle mode switch. Click SAVE.

Now flip the switch and test. A RED LED will be lit on RealPit if your are providing power.



FlightOne Settings:

  1. At the current time you must use Firmware version 1.2.4+ or greater to enable "PINTOGGLE" commands.  This is available on FlightOne Discord. flightone.com/discord and website at FlightOne.us
  2. Wire RealPit VTX + to VTX Positive pad and BATT+ to Battery Source (5v-28v)
  3. Wire VTC pad to TX4 pad on FlightOne FC. Solder the TX4 to NOR.  Then Wire GND pad to GND pad on FlightOne FC
  4. In Setup Tab:
    1. Setup PINTOGGLE switch.
  5. Use Switch to Power VTX on and off.
