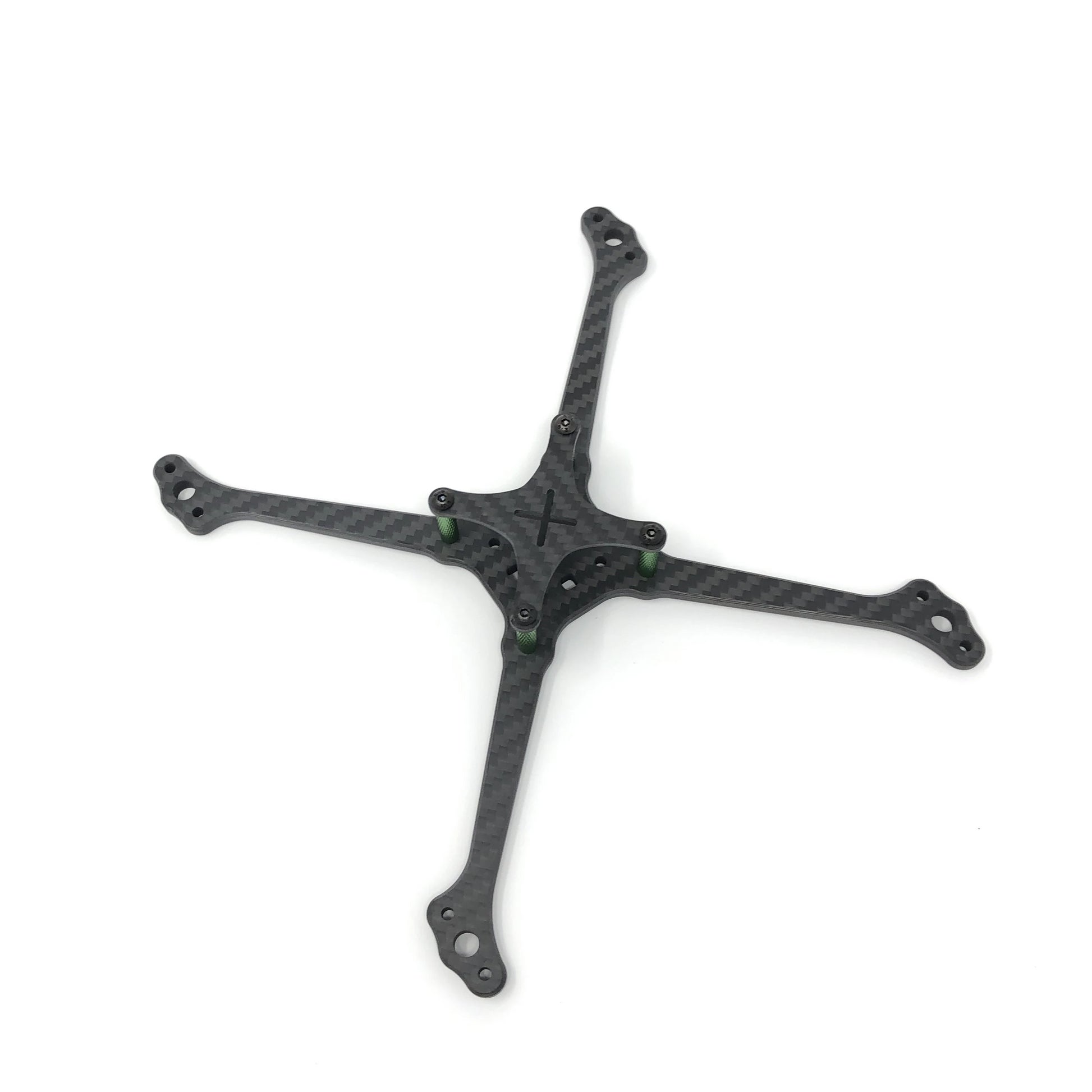

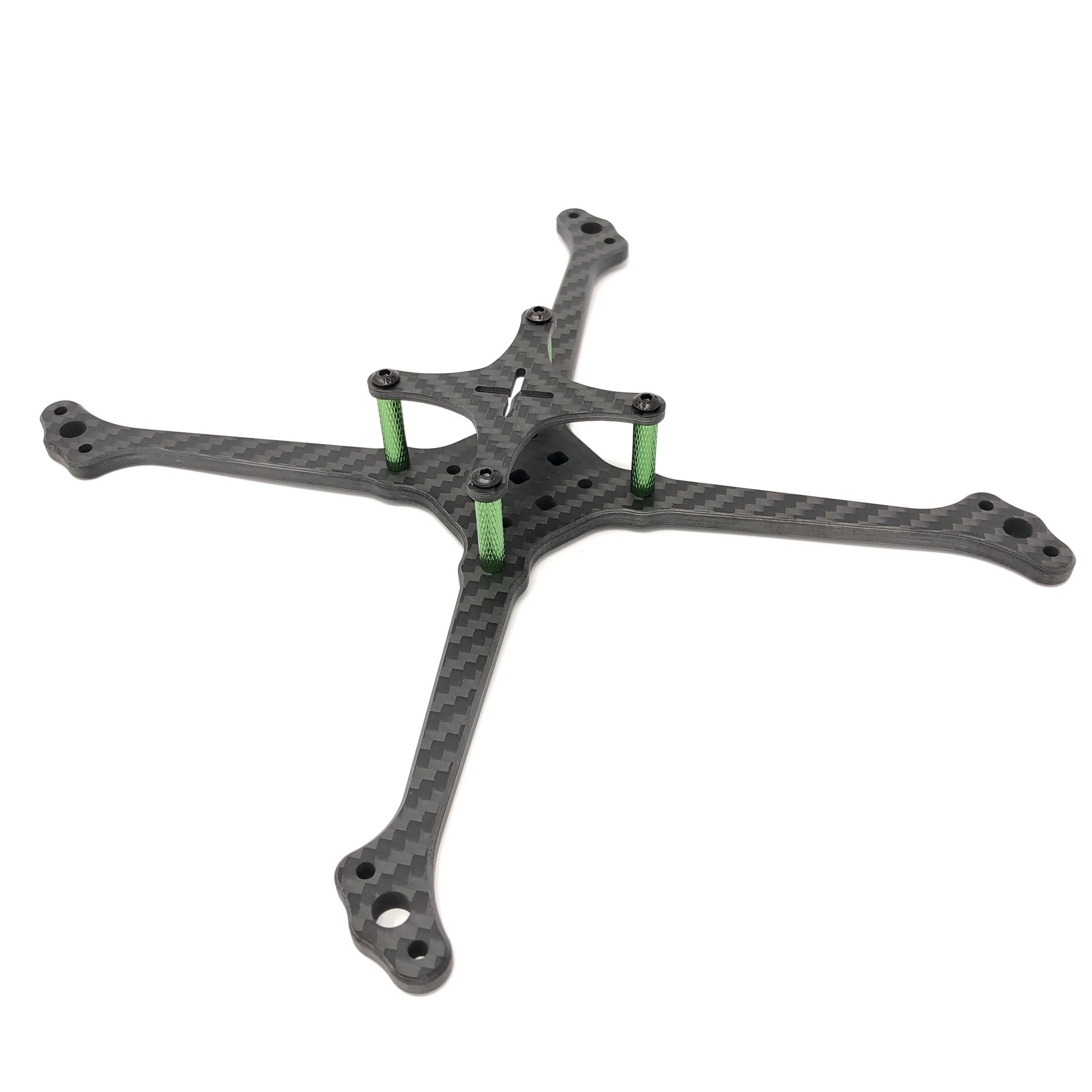

LOS (Line-of-Sight) 5" Quad Frame by TheRCAddict
LOS (Line-of-Sight) 5" Quad Frame by TheRCAddict
Regular price
$49.95 USD
Regular price
Sale price
$49.95 USD
Unit price
/
per
Share
New Version has cuts for 25.5x25.5 AIO boards and strap cutouts for that. If usings a 20x20 mount. you can use strap slots or wrap around frame on opposite way. Comes with a Free 250mm Indestructible strap Nylon rubber strap.
This is not an FPV Racing Frame. It is built for LOS (Line-of-Sight) flying ONLY. durable though and can be used for FPV if you were to use a camera mount. :)
Their are limited quantities available for this frame. ALL proceeds go directly to the design Seth Griggs (The RC_Addict)
5.1" props MAX. (Built for Gemfan 514xx series props.)
Motor mounting holes are 16mm spacing
Weight: 45.98 Grams
20x20 and 25.5x25.5mm AIO
Stacks only.
It is built for an HobbyWing 40a and Tiny's LEDs Unity FC. Pick up a stack here
Tiny's LEDs Unity Mini F7 Flight Controller

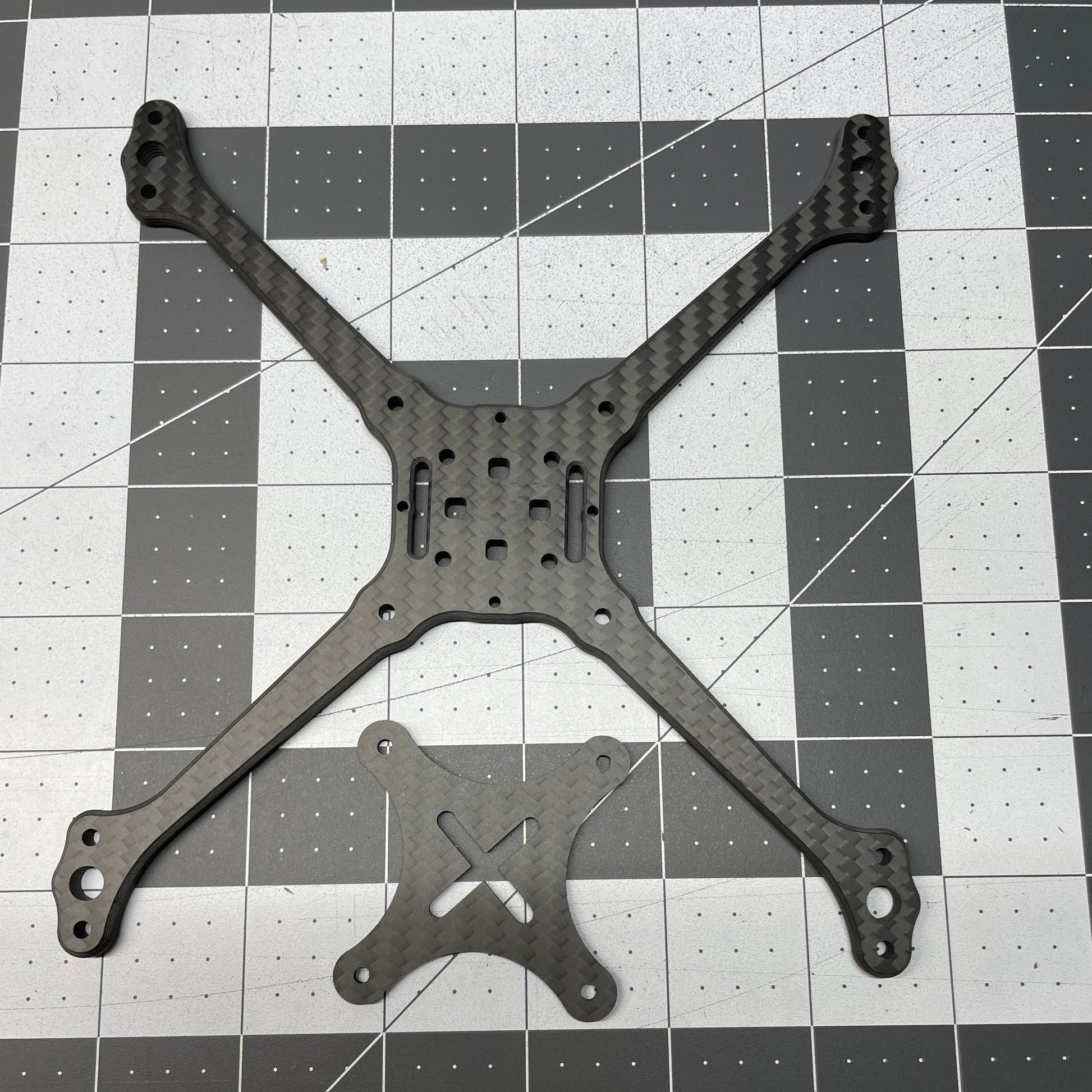

Contents:
- 1x 5 mm Unibody Main plate
- 1x 2.5 mm Top Plate
- 4x 20 mm Standoffs.
- (Standard Green Color)
- Other colors may be available upon request but not guaranteed. Stock dependent.
- 8x 8mm M3 Screws.
- 4x Mini battery pads for bottom plate.
