Brand:Tiny's LEDs
Lil’ Lites 1-3s Micro LEDs V2
Lil’ Lites 1-3s Micro LEDs V2
Regular price
$3.49 USD
Regular price
Sale price
$3.49 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
new for V2 slimmer, brighter LEDs!
Perfect for your 1-3s 65mm or similar micro quads.
I suggest getting the Pre-Applied VHB option in cart. Buy 1x VHB per led you purchase. This will make LED installation super easy.
Also grab a LED silicone 30AWG wire kit for super clean wiring.
Input Voltage: 1-3s. (Min 3.7v : Max 13.5v)
Use 5v Regulator on FC/ESC for 1s operation. It draws only 60mA per led board, so it will not be a lot. Most FCs will have enough overhead to power 1-2 LEDs
Current Draw: 60mA
Dimensions: 15.9mm x 3.99mm
Weight: 0.19 grams each
Contains: 1 LED
Wire to battery pads or to 5v/12v regulator. Use 30AWG silicone wire for best results.

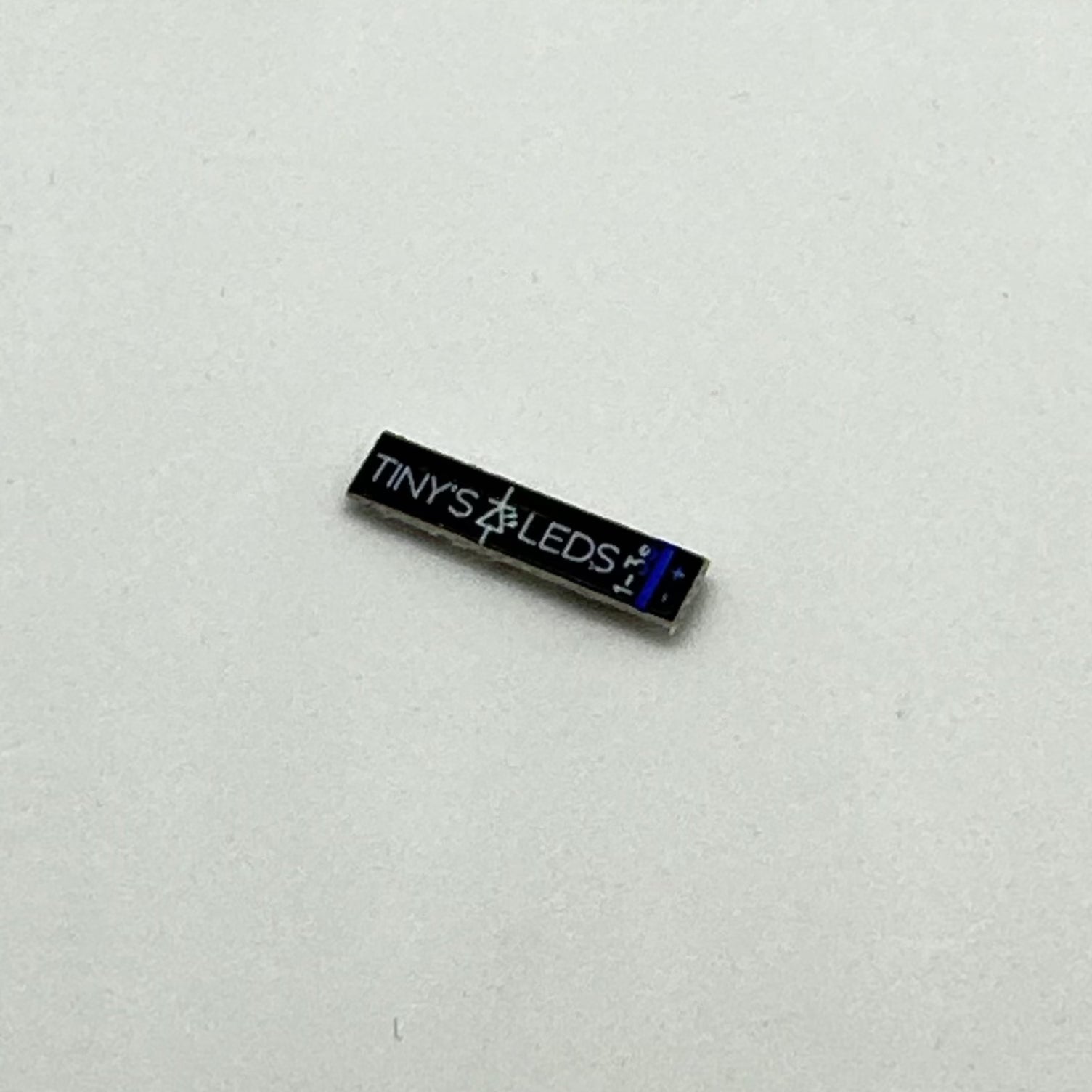

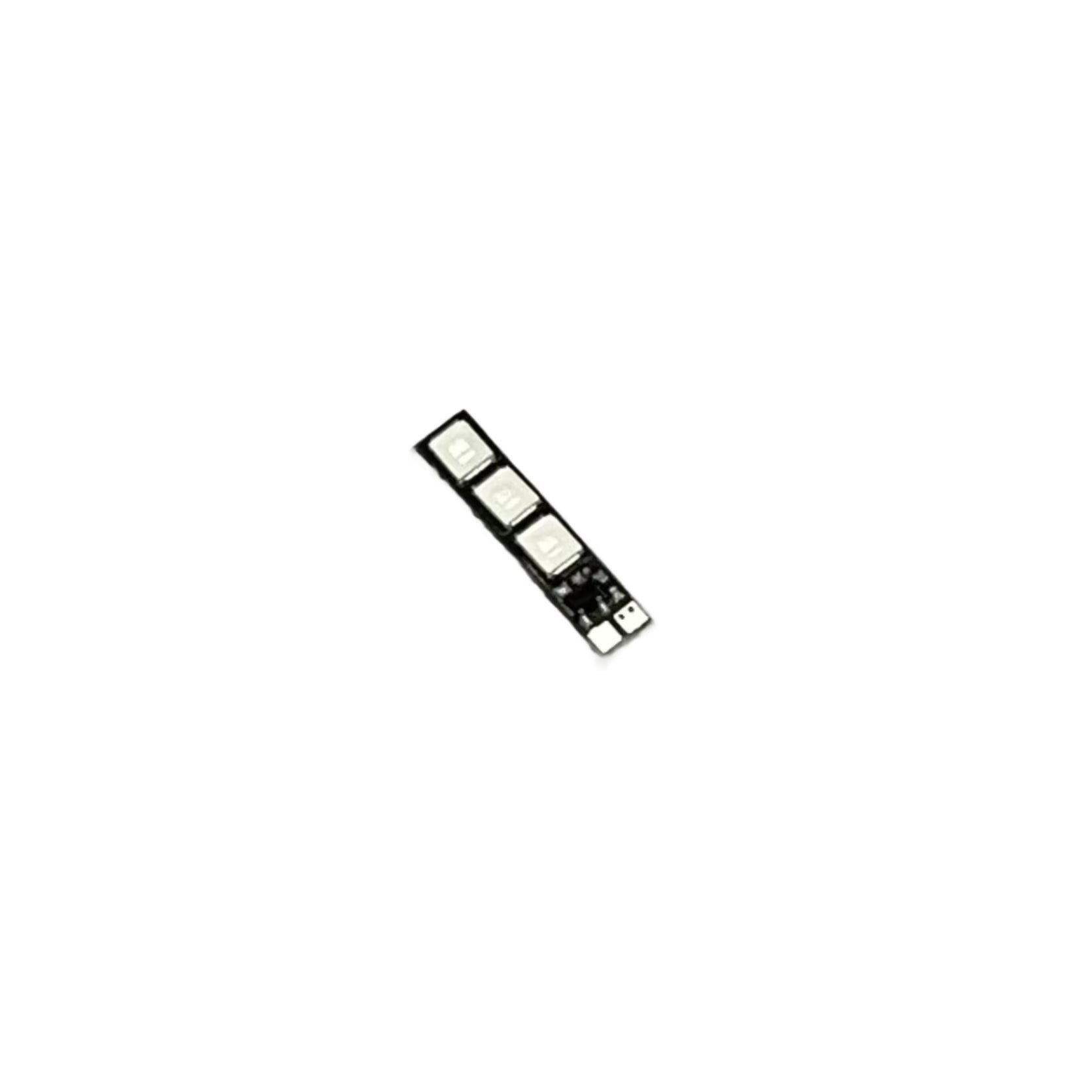

![Lil’ Lites 1-3s Micro LEDs V2](http://tinysleds.com/cdn/shop/files/image_315e1abf-44ce-4a64-afd0-46fde456c9db.heic?v=1713137268&width=1445)
![Lil’ Lites 1-3s Micro LEDs V2](http://tinysleds.com/cdn/shop/files/image_7cc7d17a-5674-4340-8169-4ee537358ea1.heic?v=1695407847&width=1445)
