Brand:Tiny's LEDs
InfiniRainbow v2 LED Quad Kit (40 LEDs & Cables)
InfiniRainbow v2 LED Quad Kit (40 LEDs & Cables)
Regular price
$25.99 USD
Regular price
Sale price
$25.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
FAI LED Kit
-

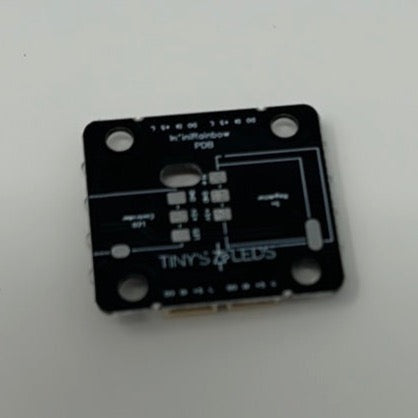

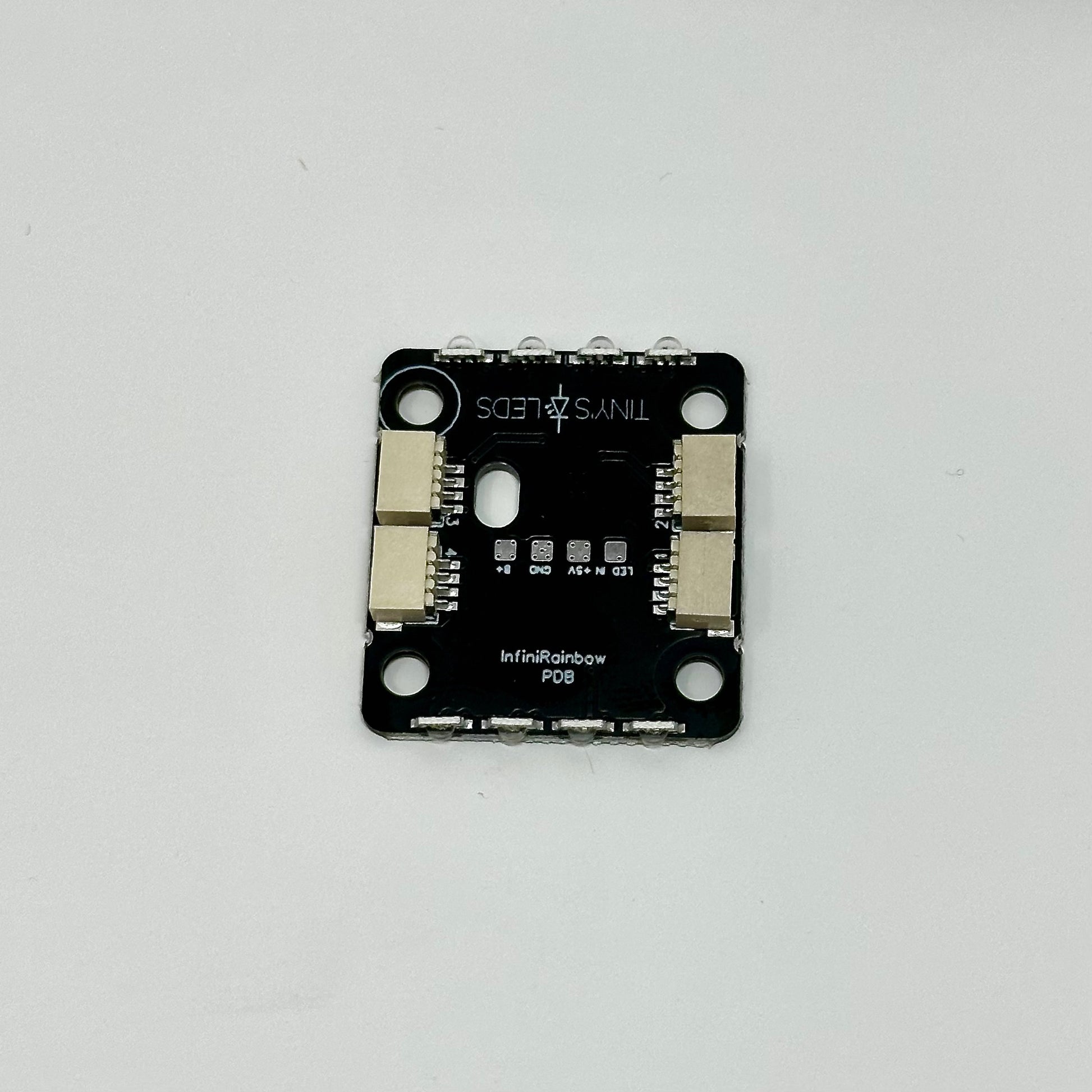

1x InfiniRainbow LED PDB v2
-
4x Middle InfiniRainbow LEDs with connectors
-
4x End InfiniRainbow LEDs with connectors
- 1x 35/75mm Silicone cable kit
Add integrated BEC and Led controller as well.

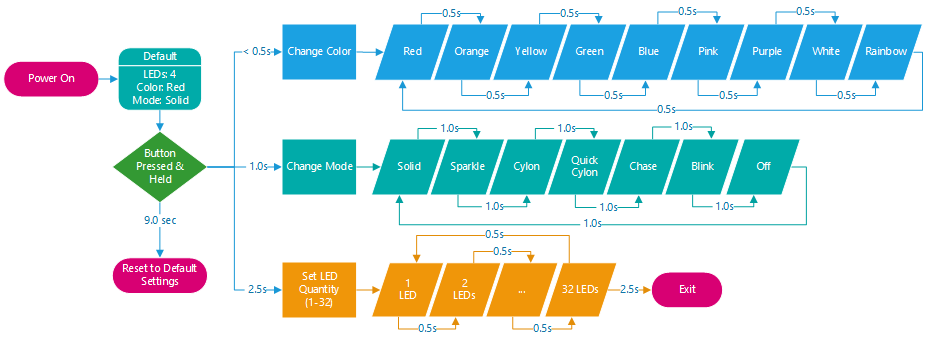

See photos for LED controller menu structure.

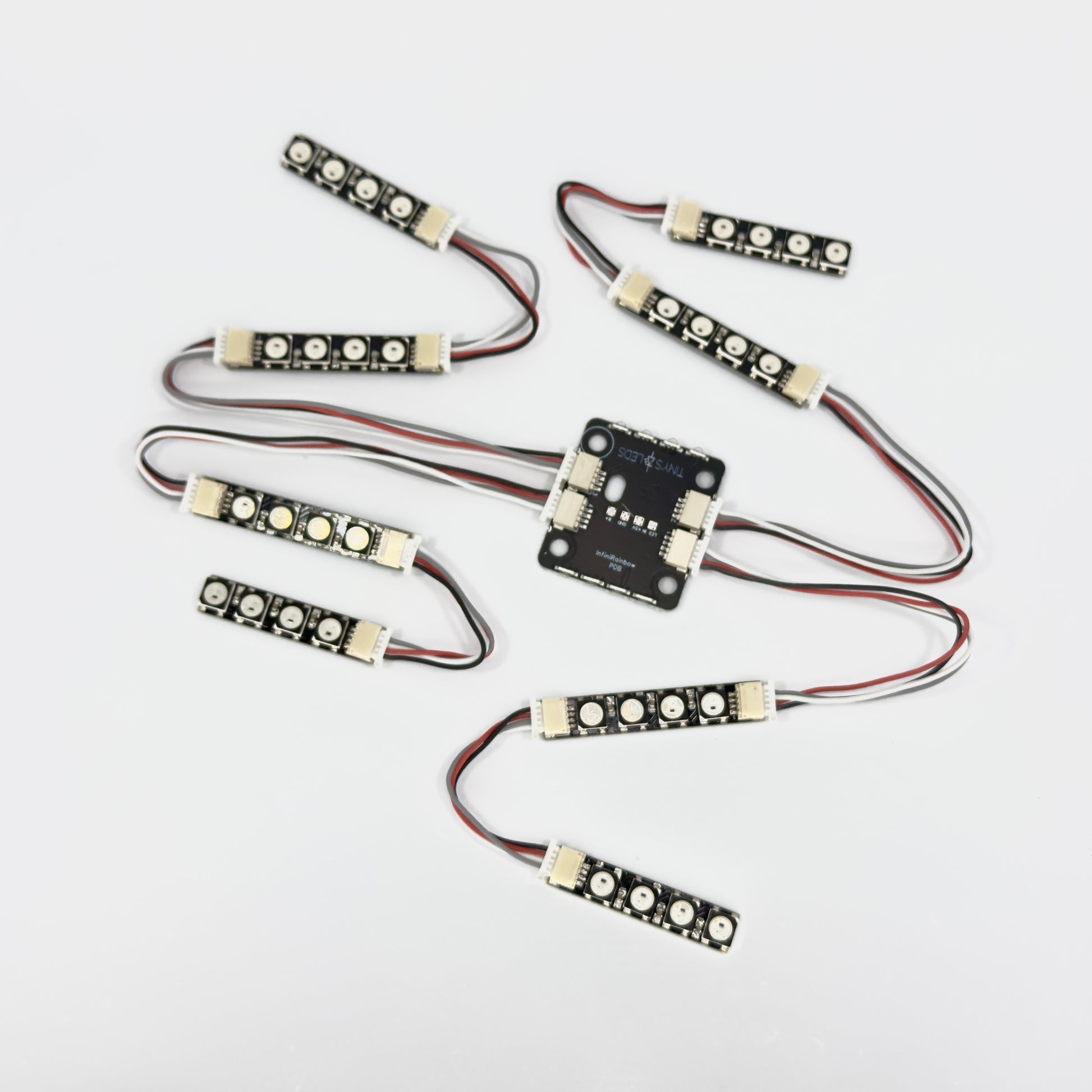

40 LEDs and only soldering 3 wires? LEDs are even easier to add to your quad. 4x leds per side of quad and 8 per arm. Perfect for international races where LEDs are required.
Features:
- 8x Side Fire LEDs, (4 each side)
- Soft Mounting for 20x20
- adapter Included for 30x30 mounting
- JST-SH Connectors for Outputs to each arm.
- Solder pads on bottom of board for extra leds. and backup if connector breaks during crash.
- Supports up to 40 LEDs
- Connect up 8 of the InfiniRainbow less with the LED Wire kit and add 44 leds to your quad.
Instructions:

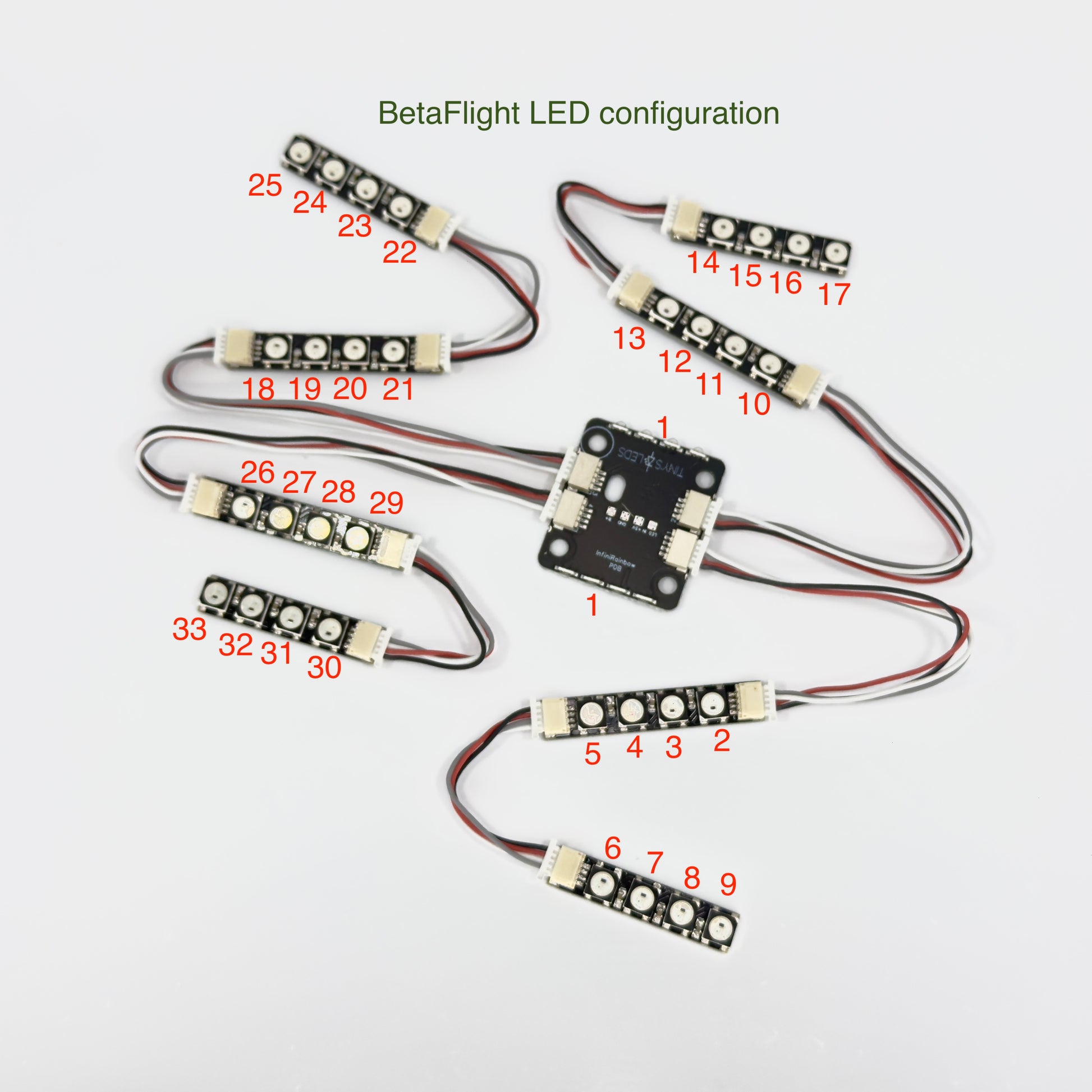

Wire 2-6s Input to B+ pad, Wire GND and LED DI to the Flight Controller. Setup betaflight as 1 LED ( All8 on board act as 1 led in parallel, This is better for racing)
Weight:
Dimensions:

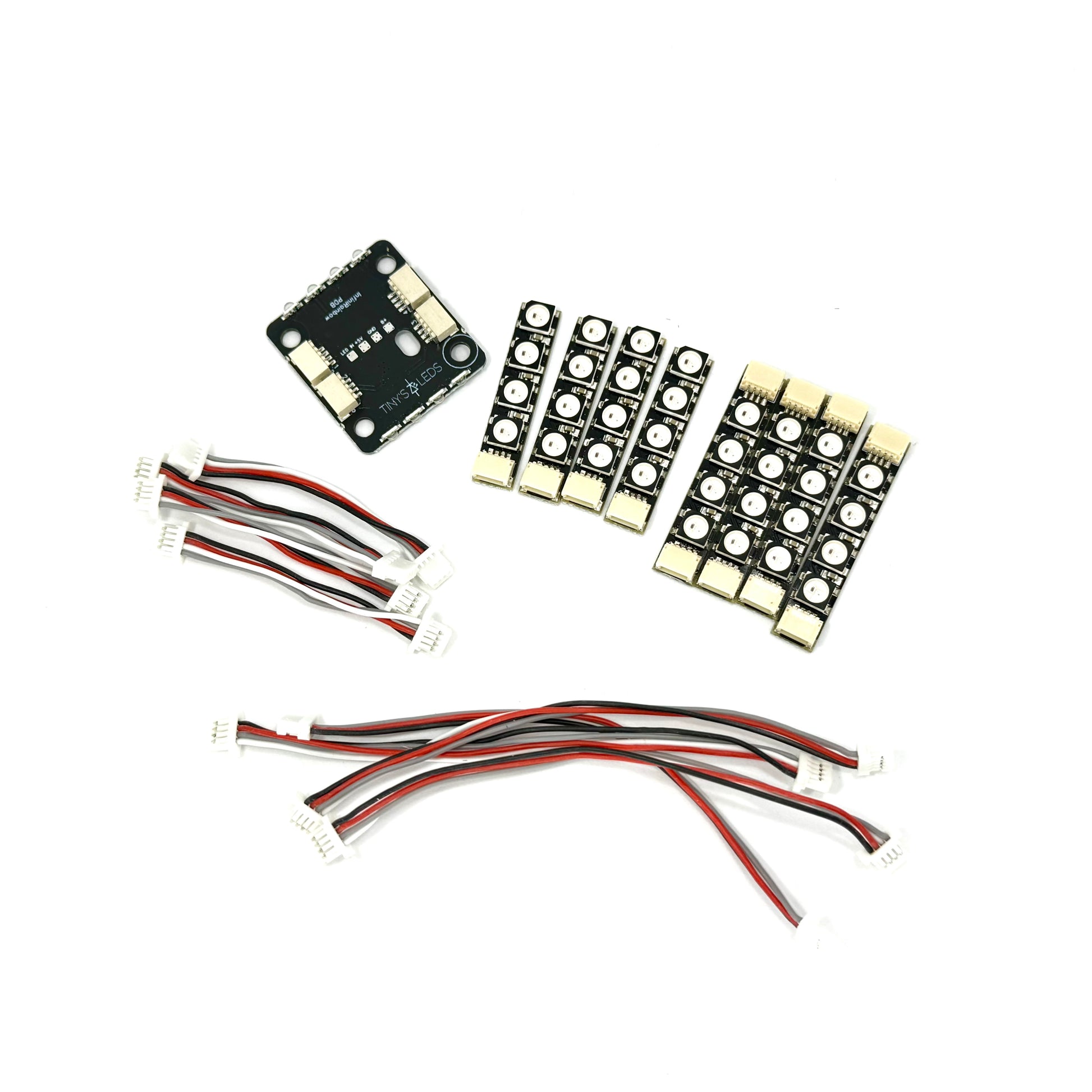

Contains:
1x InfiniRainbow LED PDB v2
4x Middle InfiniRainbow LEDs with connectors
4x End InfiniRainbow LEDs with connectors
4x 35mm long silicone led wires
4x 75mm short silicone led wires
