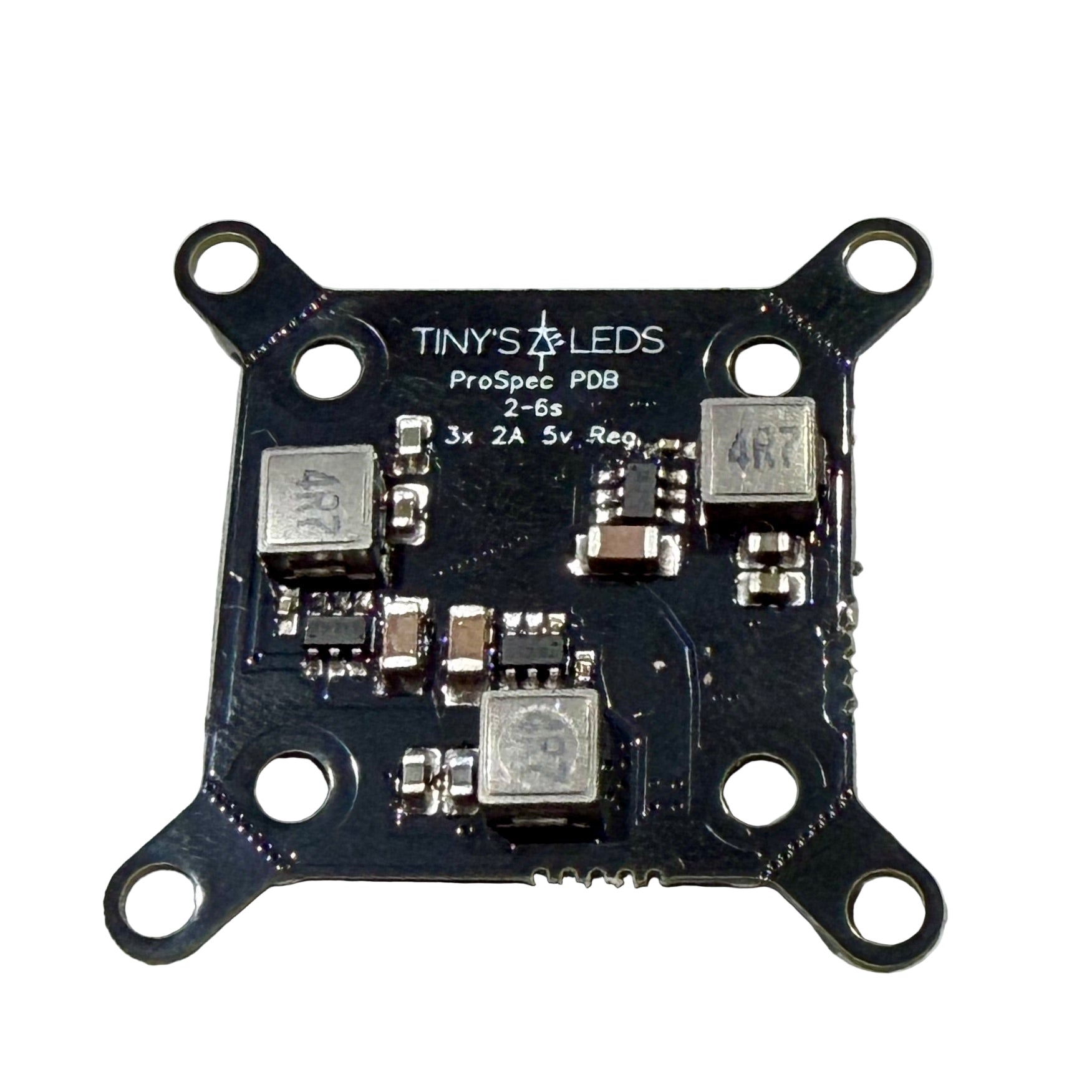

InfiniPowerPDB ProSpec 2-6s (3x 2amp 5v Reg)

InfiniPowerPDB 6amp Total split between 3 regulators.

2-6s input, 3x 2amp 5v output.

 1-2 Ports share 2amp BEC, 3-4 Share 2amp BEC, 5 on 3rd 2amp BEC

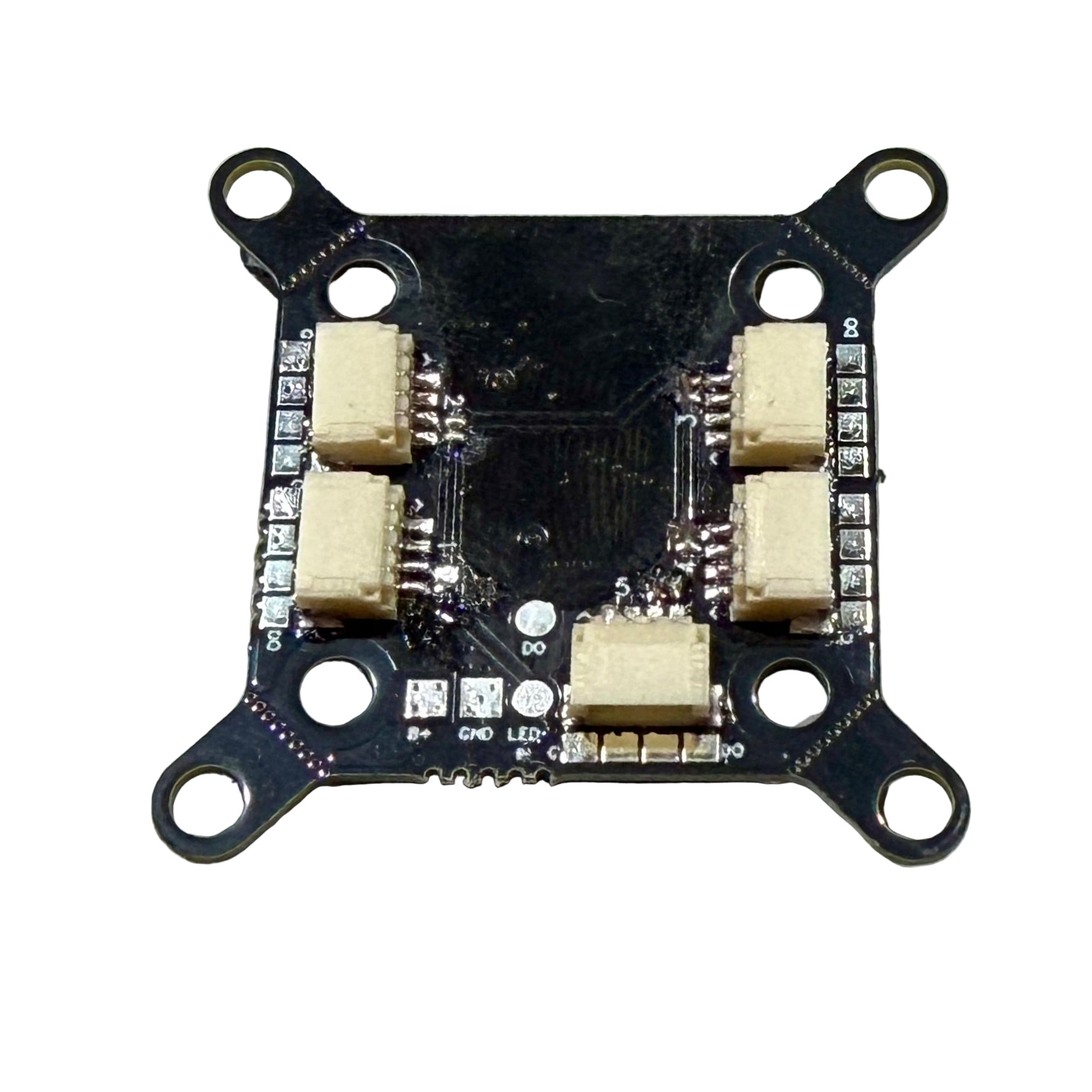

5 Outputs with JST-SH 4 Pin connectors from the InfiniRainbow Collection.

You do NOT need the infiniRainbow cables. You can use any standard Tiny Rainbow 3 wire cables. Insert to the left of connector leaving the right most pin open. This will require soldering the bypass bridge.

Each BEC/Regulator powers 1-2 outputs.

30x30 or 20x20 mounting

Pads next to connectors allow for connector or wire soldering connections.

Wiring Kits here:

InfiniRainbow  Cables

Solder Wire kit

It is not recommended to use the Project399 Arm leds on white for long or without cooling on board. This is just over drawing the bec with 2 boards on white.
