InfiniPDB iFlight 2-8s Edition

Infini PDB with on-board iFlight 2-8s BEC power.

2-8s input, 5v output.

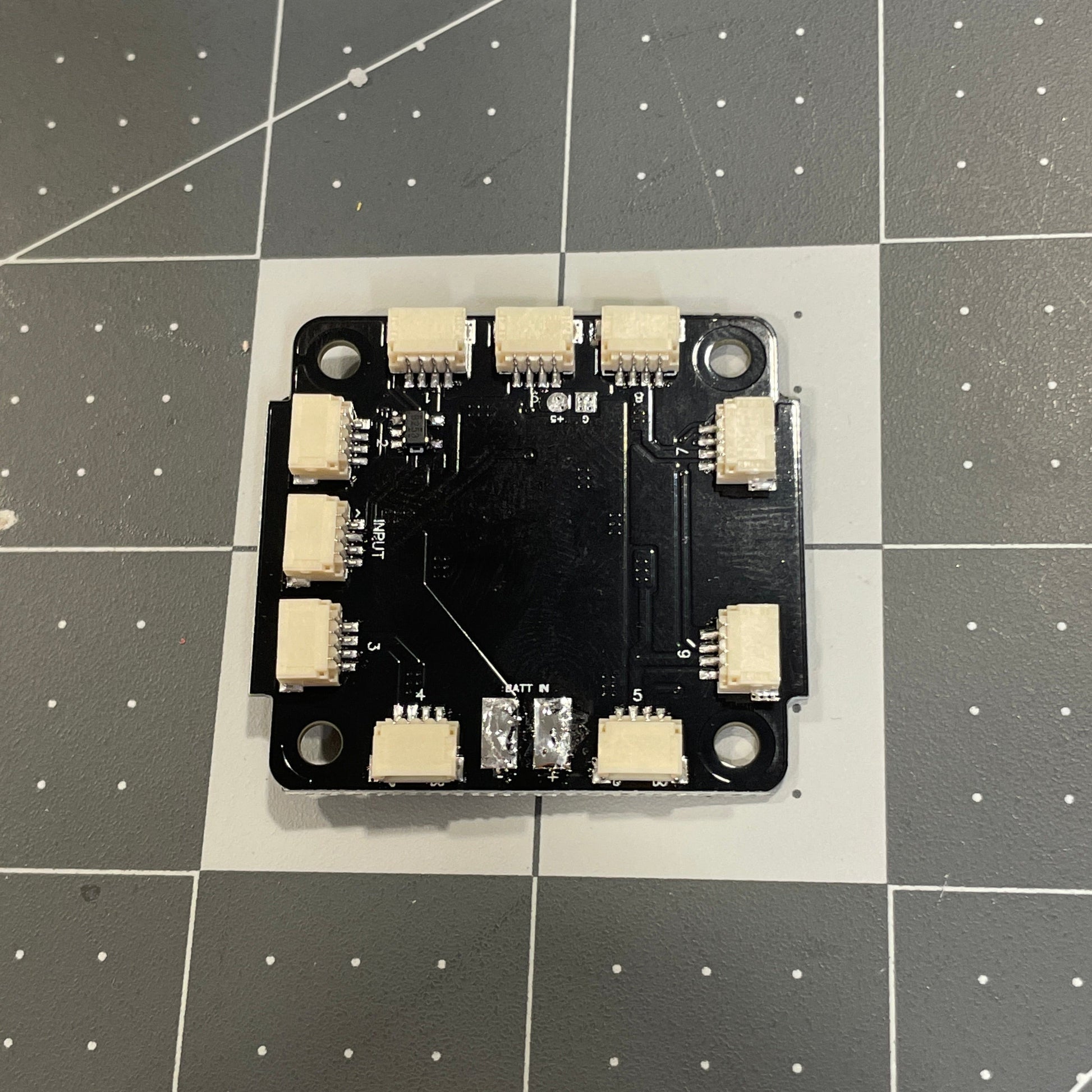

9 Outputs with JST-SH 4 Pin connectors from the InfiniRainbow Collection.

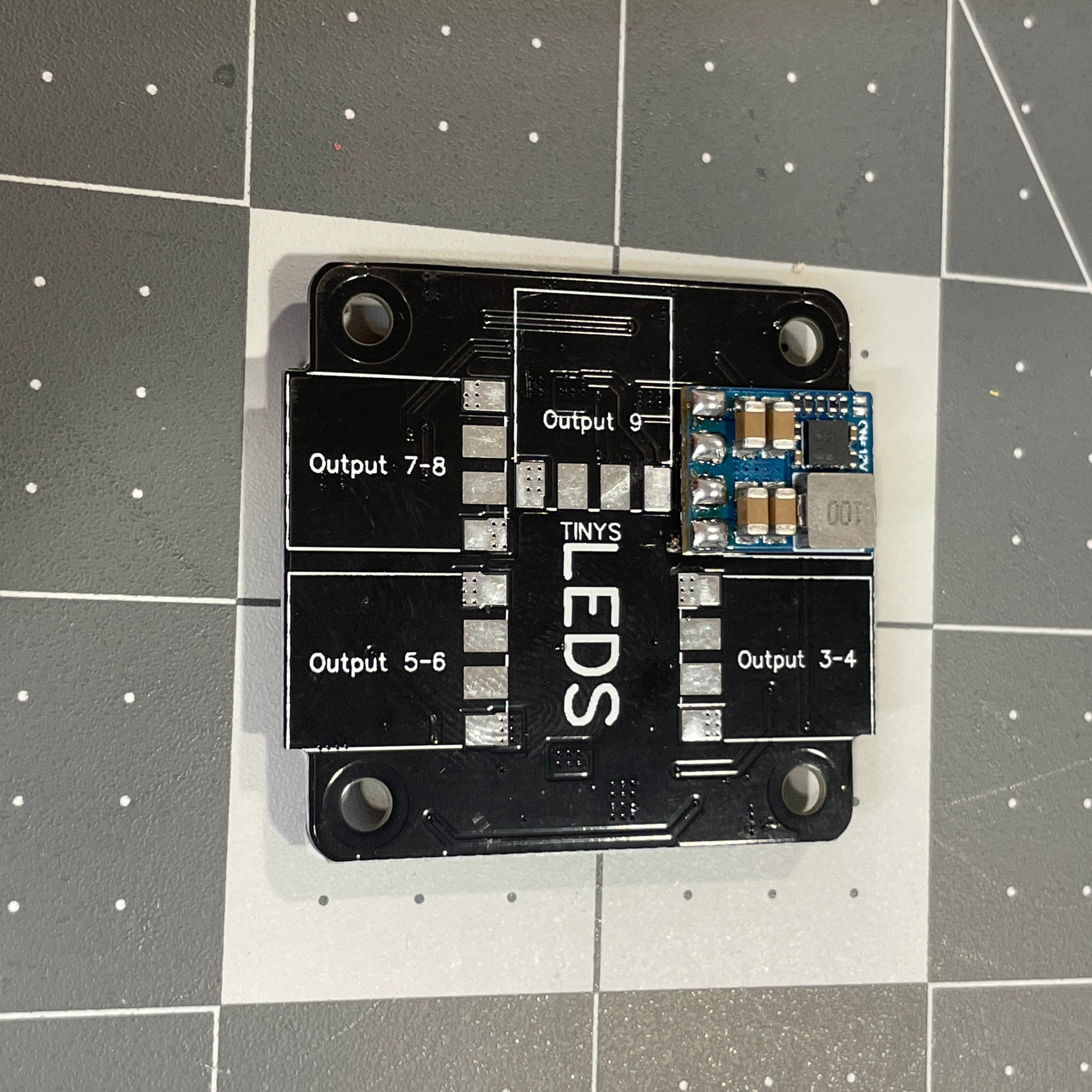

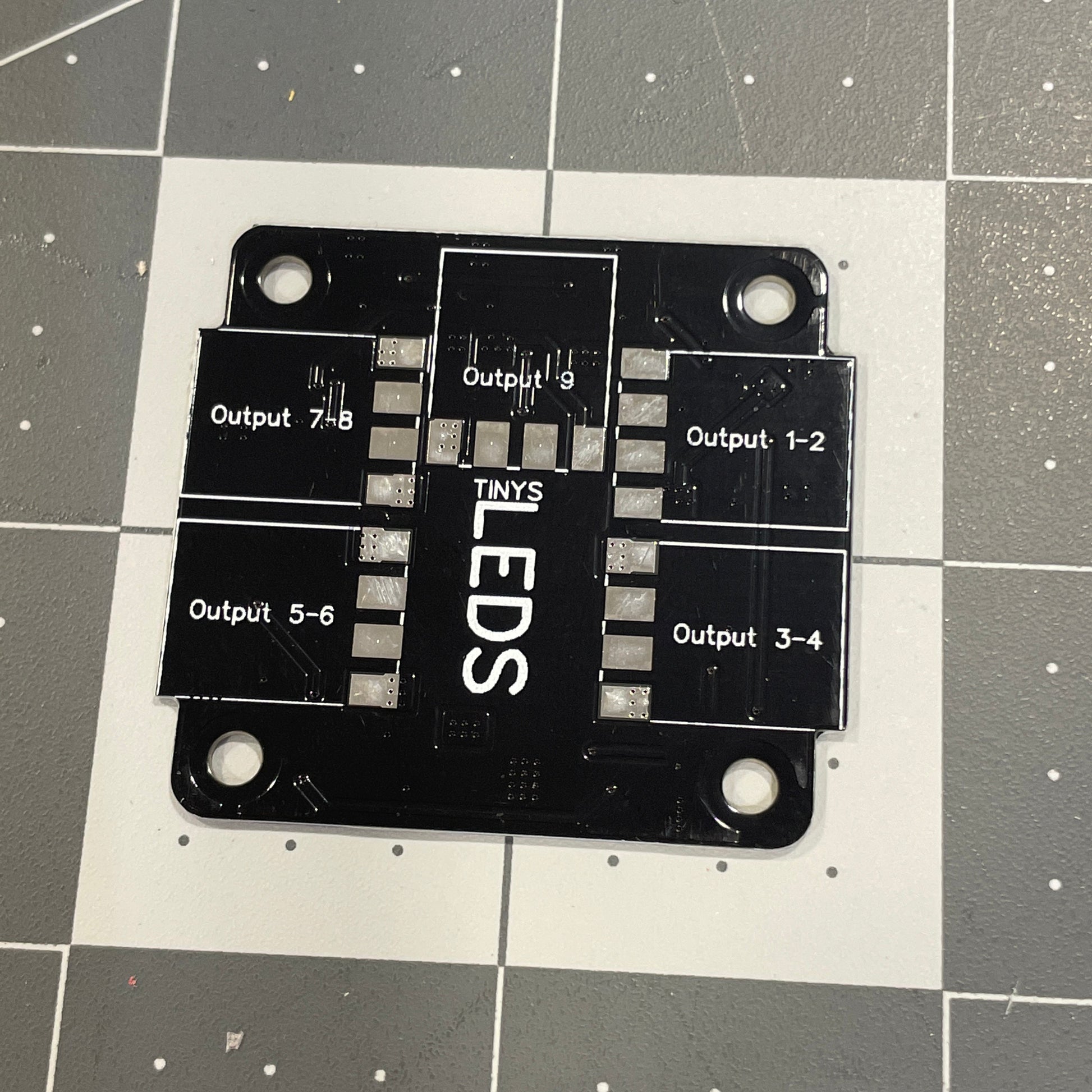

Each BEC/Regulator powers 2 outputs, as noted on board.

If you do not chose to use the iflight bec you can simply wire to pads for input/outputs on board.

This does not include any BECs/Regulators.

30x30 mounting

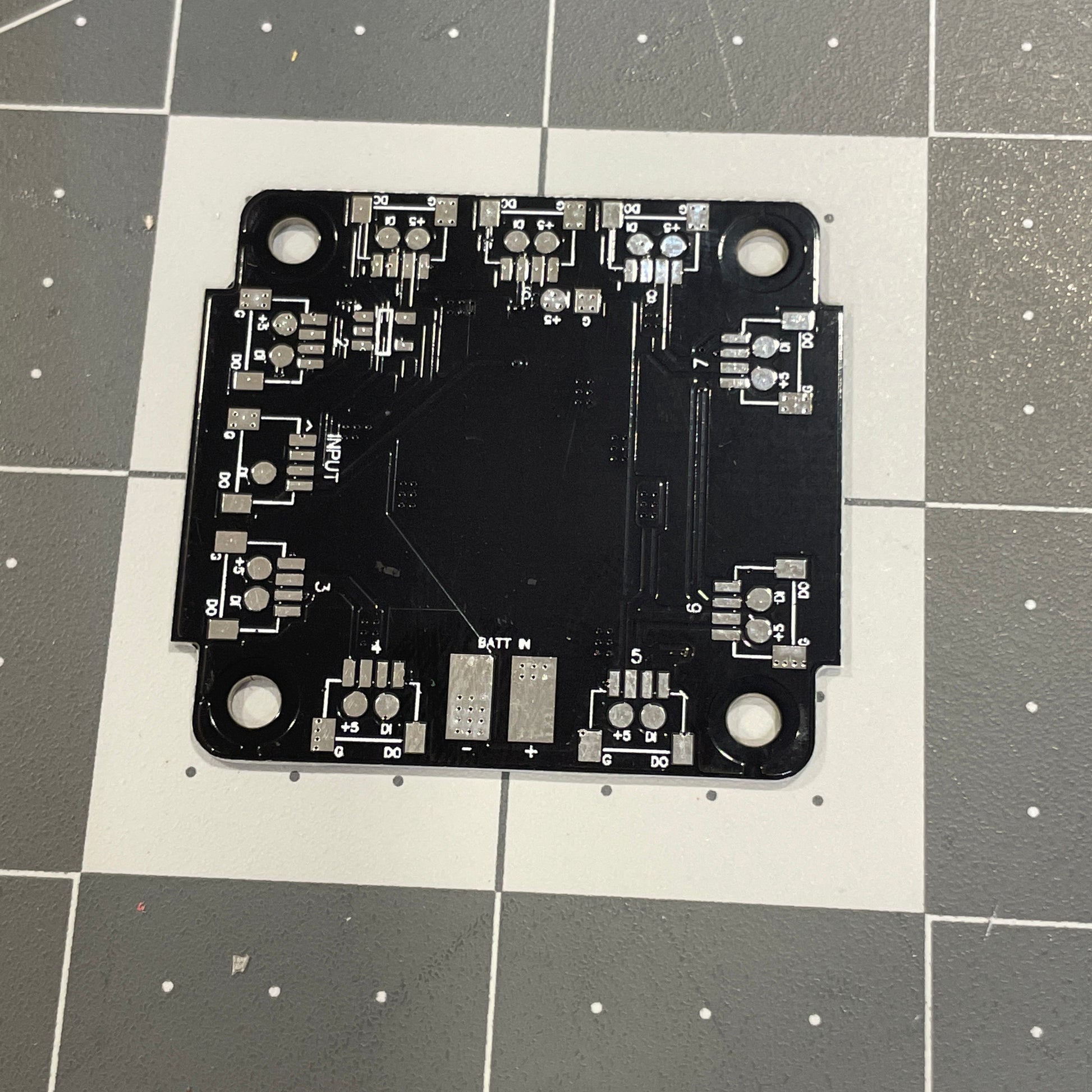

Pads under connectors allow for connector or wire soldering connections.

Wiring Kits here:

InfiniRainbow  Cables

Solder Wire kit

Built in Signal shifter to allow better LED signal. It uses 5v from BEC output 1-2, this is required to be connected for it to function.

It is not recommended to use the Project399 Arm leds on white for long or without cooling on board. This is just over drawing the bec with 2 boards on white.
