Brand:Hobbywing

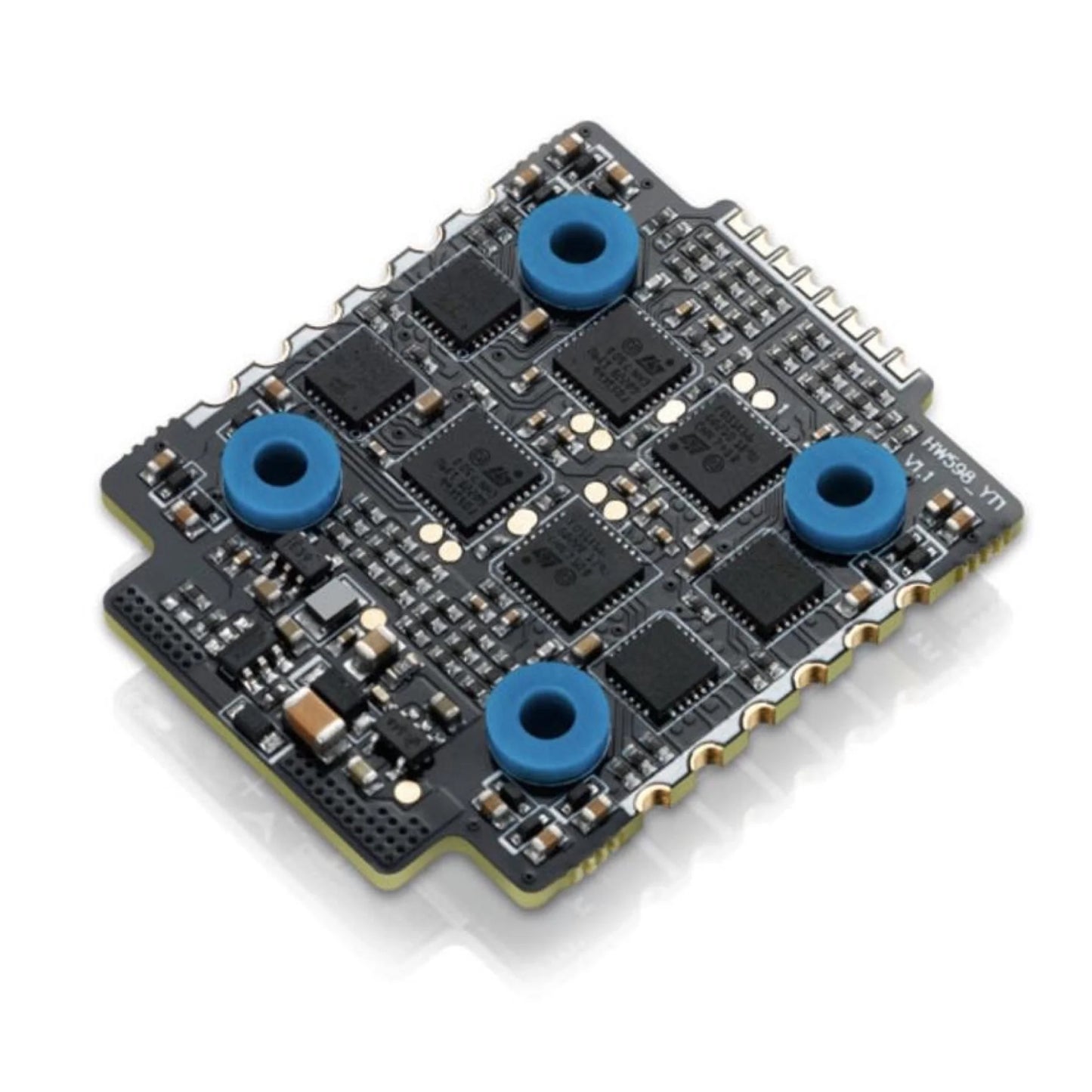

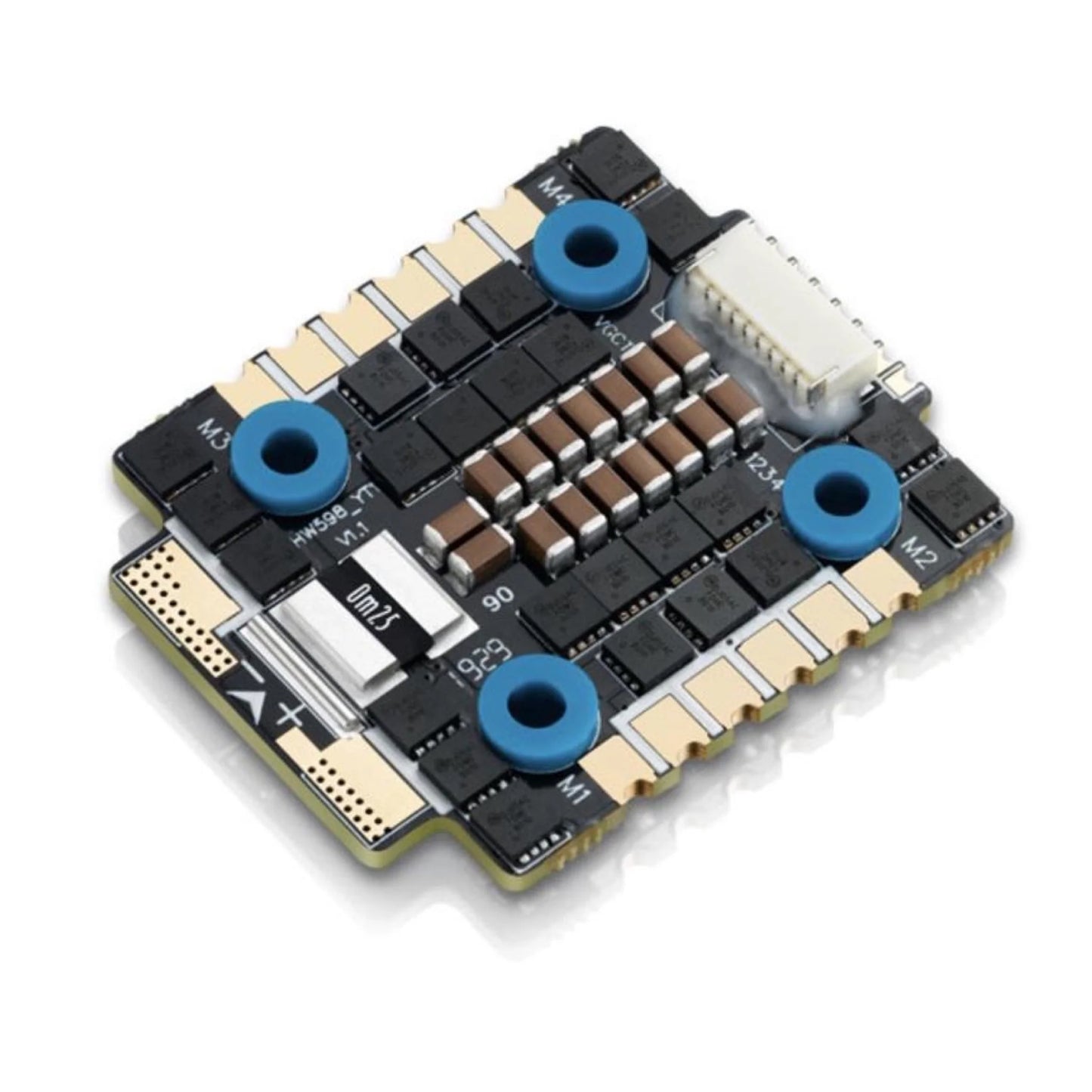

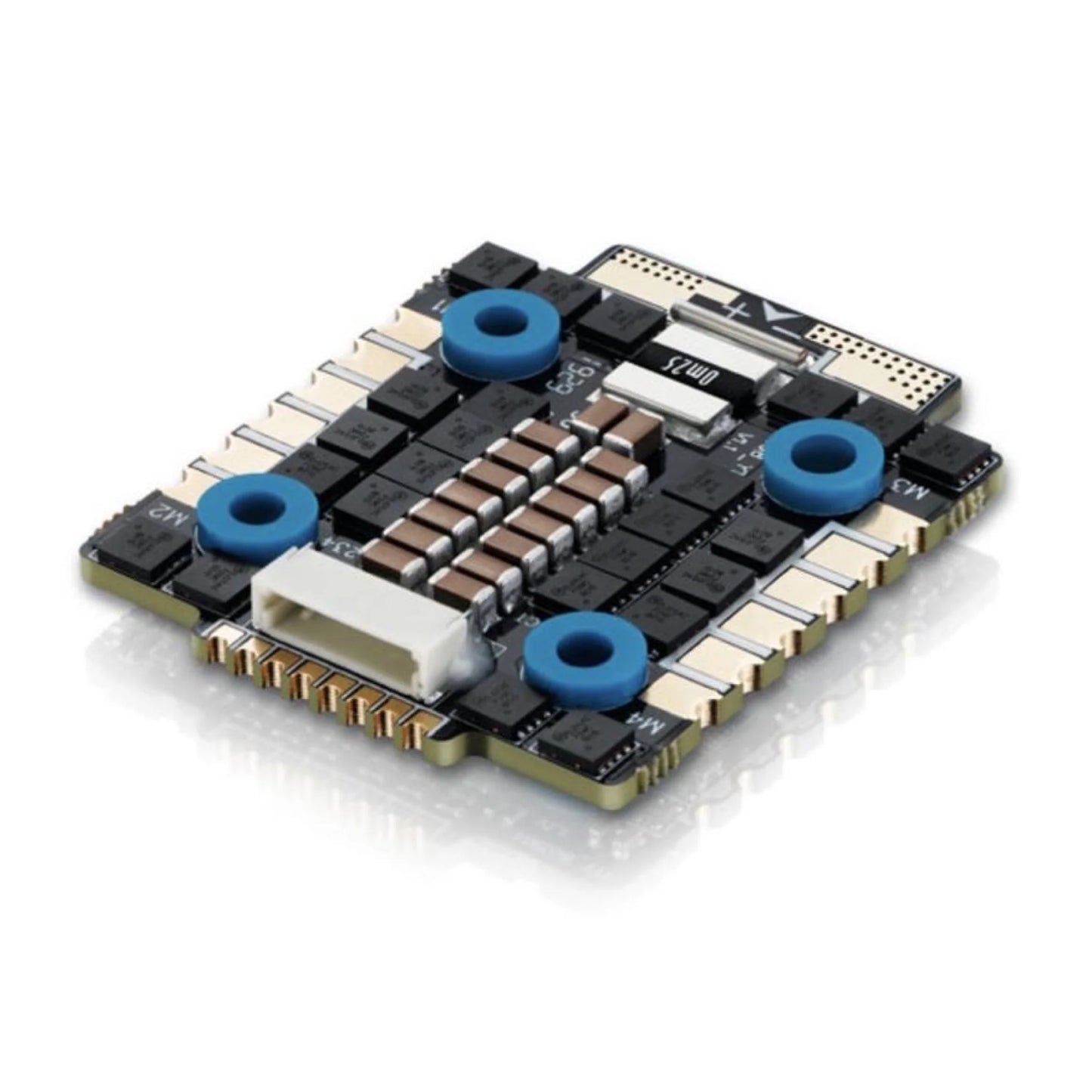

Hobbywing XRotor FPV 20x20 45A 4in1 ESC
Hobbywing XRotor FPV 20x20 45A 4in1 ESC
Regular price
$69.99 USD
Regular price
Sale price
$69.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
- Applications: FPVs with 130-280mm Diagonal Wheelbase
- High performance 32-bit microprocessor with the running frequency of up to 120MHz for excellent performance.
- Input wires: Red-14AWG-100mm/ Black-14AWG-100mm
- Output wires: No wires but solder tabs
- Connectors (In/Out): XT60 plug enclosed with package.
- Weight / size: 12g / 40x33x5mm
|
Model
|
XRotor 45A 4in1 | |
|
SKU
|
30902065 | |
| LiPo Power input | 3S-6S | |
|
Cont.Current
|
45Ax4 | |
| Burst Current | 60Ax4 | |
| BEC Output |
N/A
|
|
| Firmware | Hobbywing_XRotor_BLHeli-32 | |
| Throttle Calibration | Supported | |
| ESC Programming | Stick Programming, BLHeliSuite32 | |
| DEO | Supported | |
| OneShot Mode | Supported | |
| Timing | Supported | |
| Motor Rotation | Supported |
Warranty note
- HOBBYWING products purchased from Hong Kong / Chinese retailers do not confirm CE / North America regulation - deems products non-warranty
- Discount /auction stores such as eBay, etc are considered "non-authorized stores" in North America. Products deem non-warranty
Manual Download >XRotor FPV 45A ESC.pdf
