Brand:Hobbywing

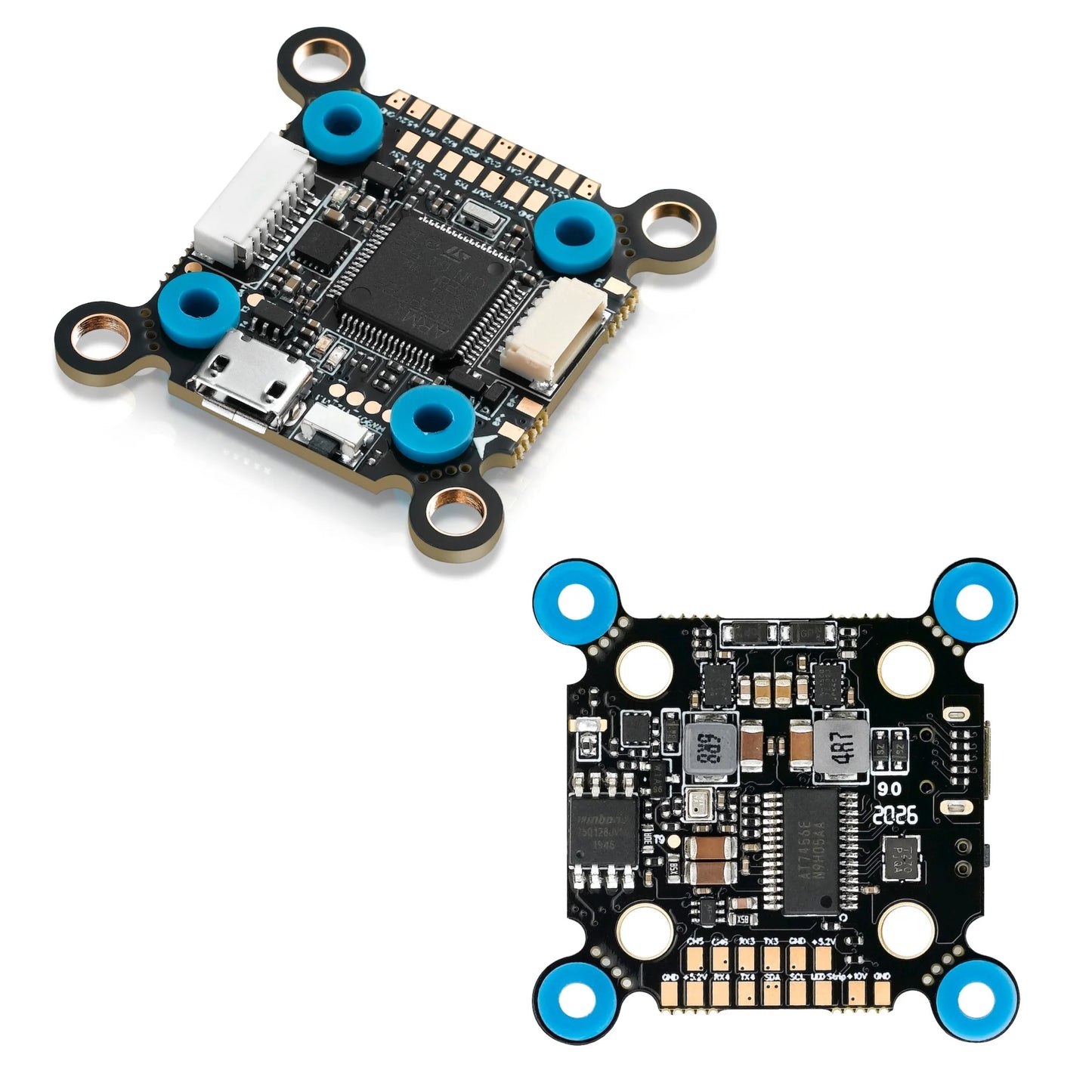

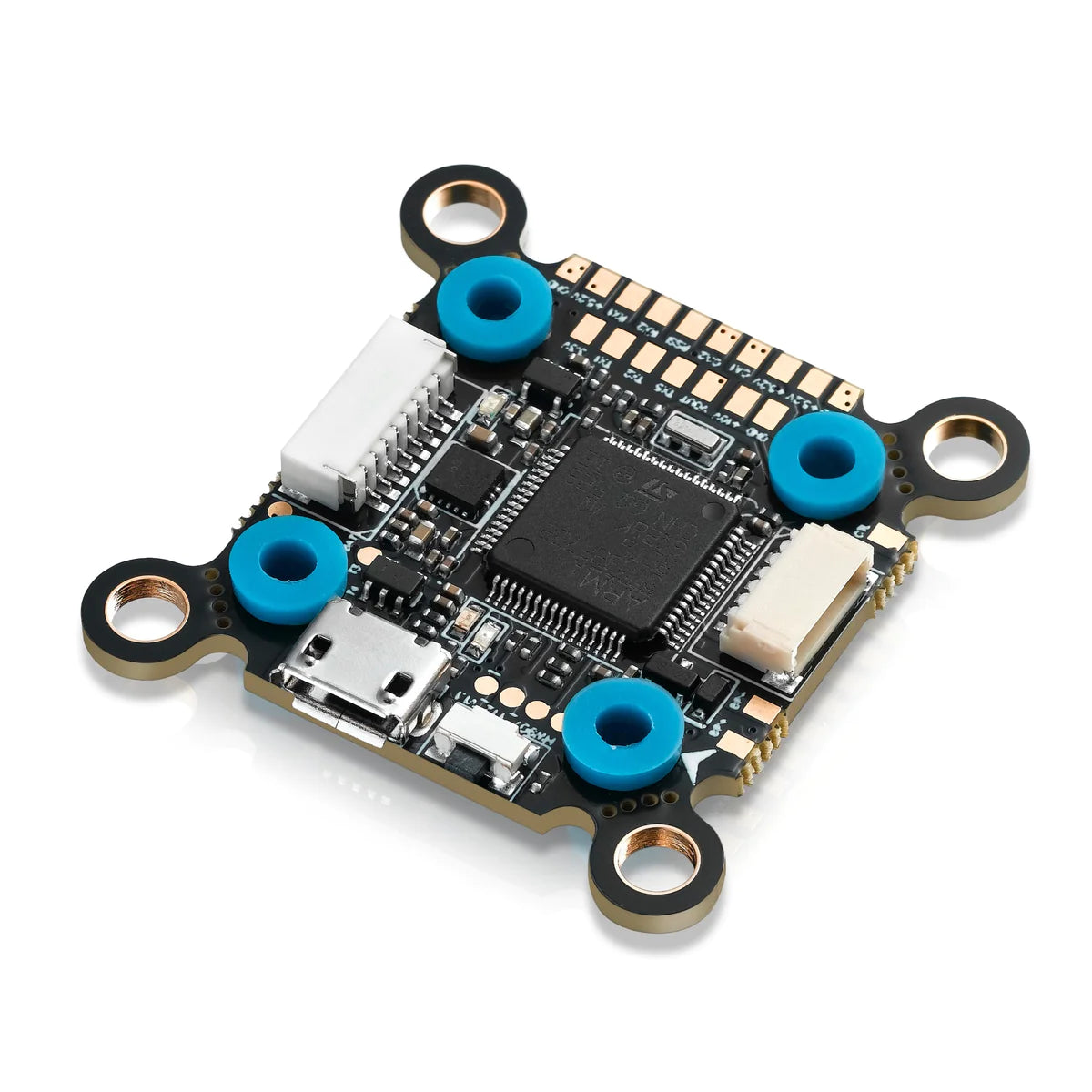

Hobbywing XRotor Flight Controller F7 Convertible for FPV Racing

Hobbywing XRotor Flight Controller F7 Convertible for FPV Racing

Regular price $49.99 USD
Regular price Sale price $49.99 USD
Sale Sold out
Shipping calculated at checkout.

F7 Convertible Flight Controller that works w/ Special interface for DJI image transmission system

  • Redesign every aspect
  • Super hardware and running speed Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor. It can perfectly support bidirectional DShot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity Flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data.

  • Special interface for DJI image transmission system With DJI image transmission system port, equipped with corresponding flat cable (FC has been equipped), can avoid welding, realize plug and play.
  • On-board 5V & 12V dual BEC circuit FMU integrates with 12V BEC circuit. It can supply super power output for image transmission and 12V LED devices.
  • On-board Pit Switch module FC integrated Pit Switch module can open or close VTX by radio after being adjusted on FC parameter software. Easy and convenient.
  • Perfectly support firmware of various FPV It support the firmware of BetaFlight , Cleanflight , Butterflight , inva and other mainstream FPV, and can use corresponding parameter adjustment software to adjust various parameters, making the FC more suitable for various FPV flight and race.
  • Unique installation design and shock absorption structure The double hole distance mounting hole design (30 * 30MM & 20 * 20MM) can adapt to different frames. The unique flexible flat cable connection mode (The effect is better with hobbywing tower 4in1 ESC ), and the shock absorption mechanism of installation hole, can effectively reduce the impact of external vibration on FC high-sensitivity components, and make the flight more stable and accurate.

  • Perfectly match with Hobbywing ESC Match with Hobbywing tower 4in1 ESC, easy to install and wire. The appearance is more beautiful.
  • Volt/Amp monitoring port allows users to check the battery voltage (BAT port) and current (CRT port , extra current meter is needed).
  • Buzzer output port allows users to connect external buzzer(s) to the FC for warning or informing the flight status of the aircraft.
  • Micro USB port allows users to connect the FC to a PC to flash firmware and adjust parameters.
  • Switch module of board load graphic transmission(VTX) can use remote control to control switch of graphic transmission.
  • Double M3 mounting holes with damping aprons.

 Model Micro F7 Flight Controller Convertible
SKU
31003002
Application FPVs with 130-300mm FPVs Diagonal Wheelbase
Firmware  HOBBYWING_XROTORF7CONV
FC Programming supported
Programming via
Betaflight/Cleanflight-configurator and Others
Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
Compatible with (Transmitters)
PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
OSD Buit-in / Fit for DJI VTX system plug and play port
Voltage Monitoring Supported
Current Monitoring Supported
External Buzzer Supported
LED Control Supported
USB Port MicroUSB
Timing Supported
Motor Rotation Supported
Mounting Holes
30.5x30.5mm & 20x20mm

IMPORTANT

Please ensure that you’ll solder the capacitor included in the box onto the ESC when soldering input wires, otherwise, failing to do so ESC will get burnt/damaged. see IMPORTANT NOTES below

  • HOBBYWING products purchased from Hong Kong / Chinese retailers do not confirm CE / North America regulation - deems products non-warranty

  • Discount /auction stores such as eBay, Banggood,  are considered "non-authorized sales channel" in North America. Products deem non-warranty
