ColorControl LED controller

Inspired from a few products that no longer are on the market. I wanted a new form factor and more options of LEDs. The ColorControl was born.

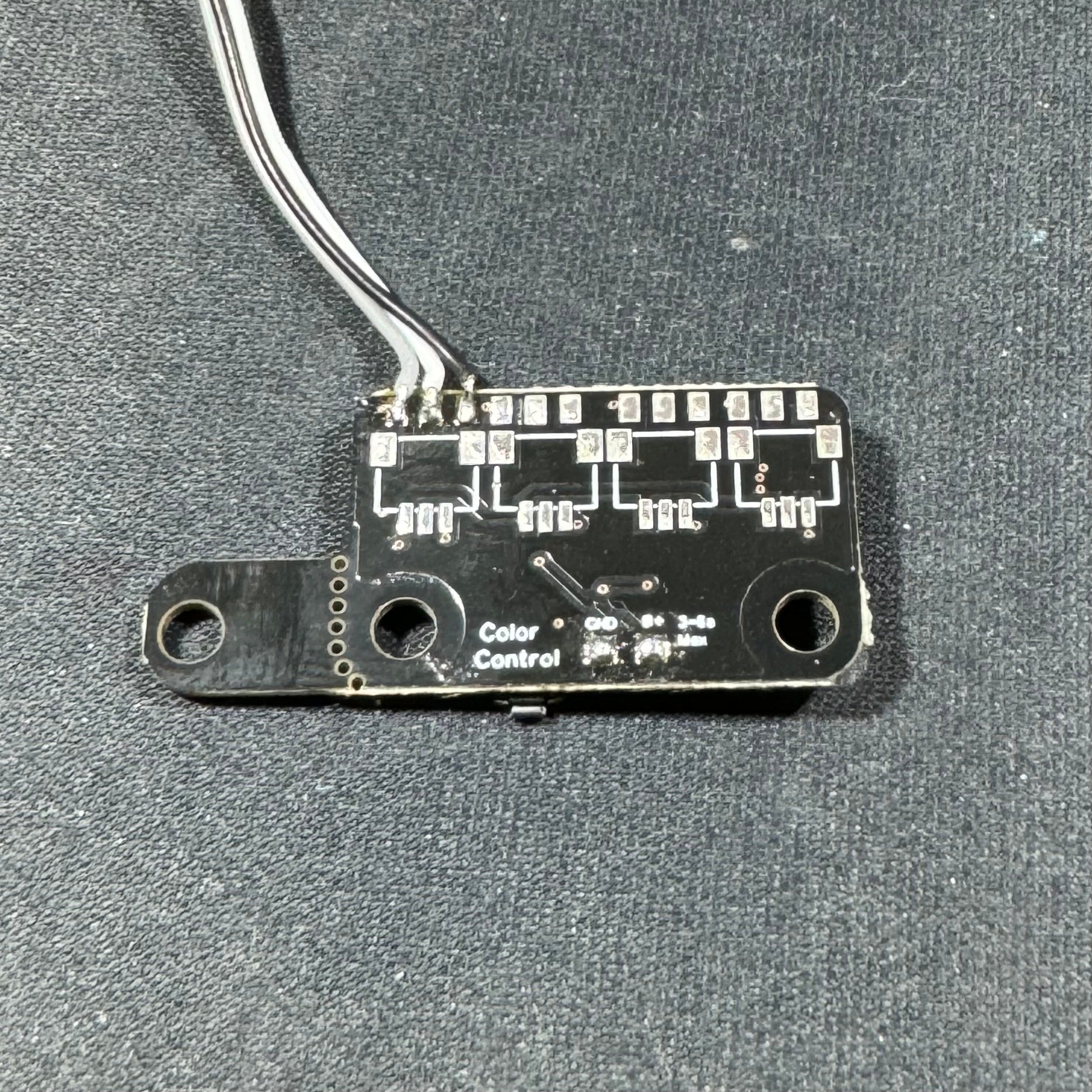

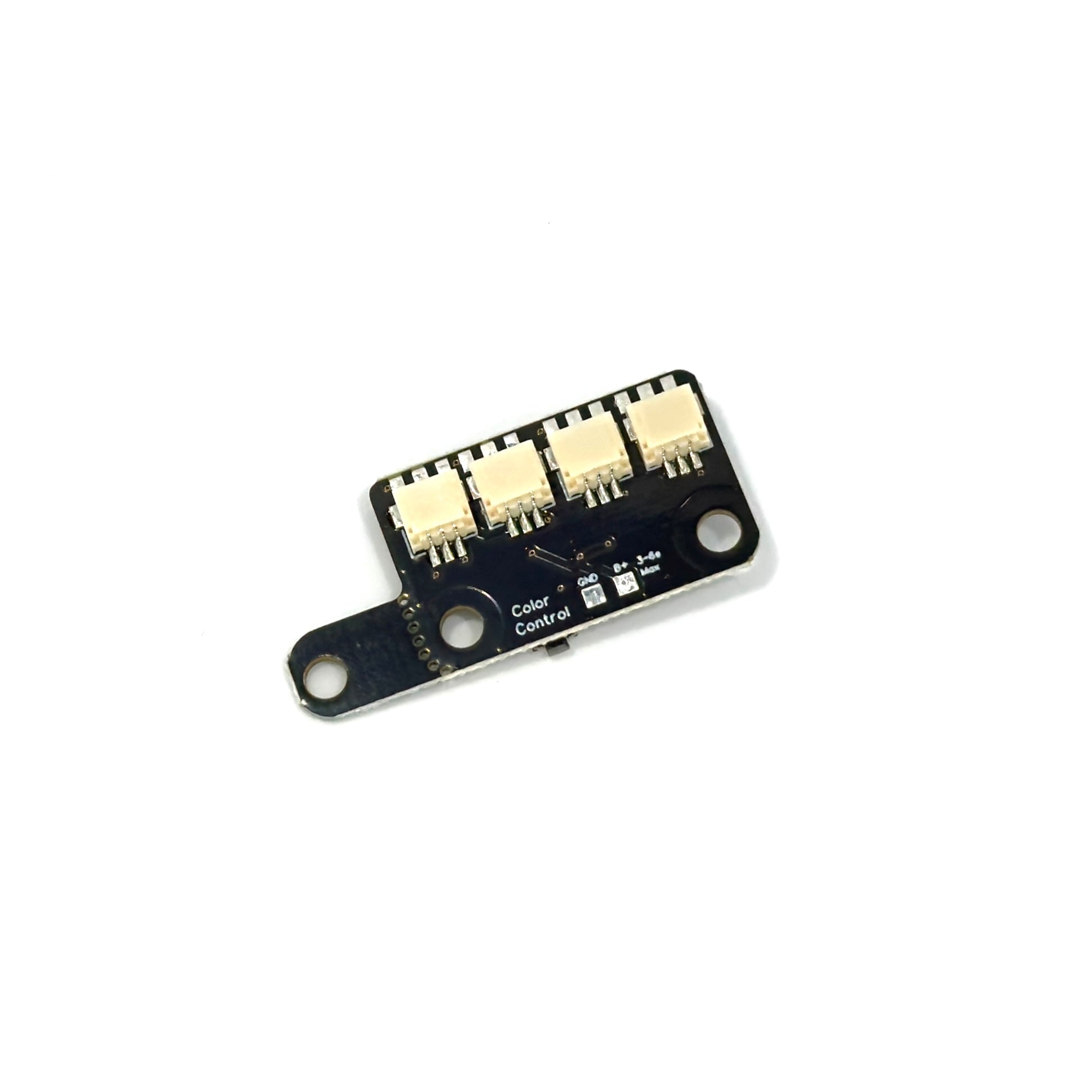

It has 4x JST-SH 3 pin outputs for direct use of TinyRainbow or Femto series leds. Soldering pads for direct wiring. (Connectors can be desoldered/ removed for super slim install)

Each Output acts the same. The first LED on each connector will be LED 1

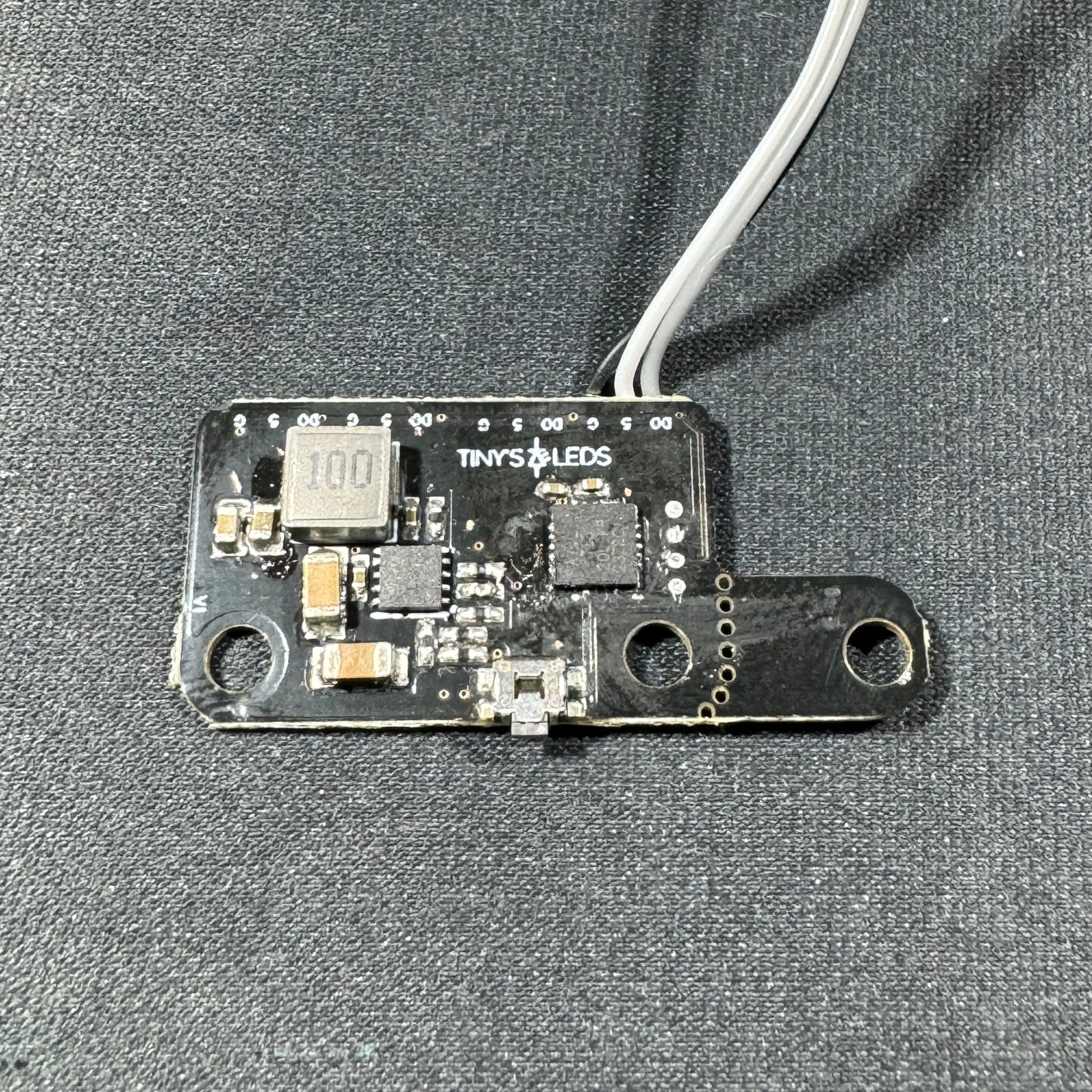

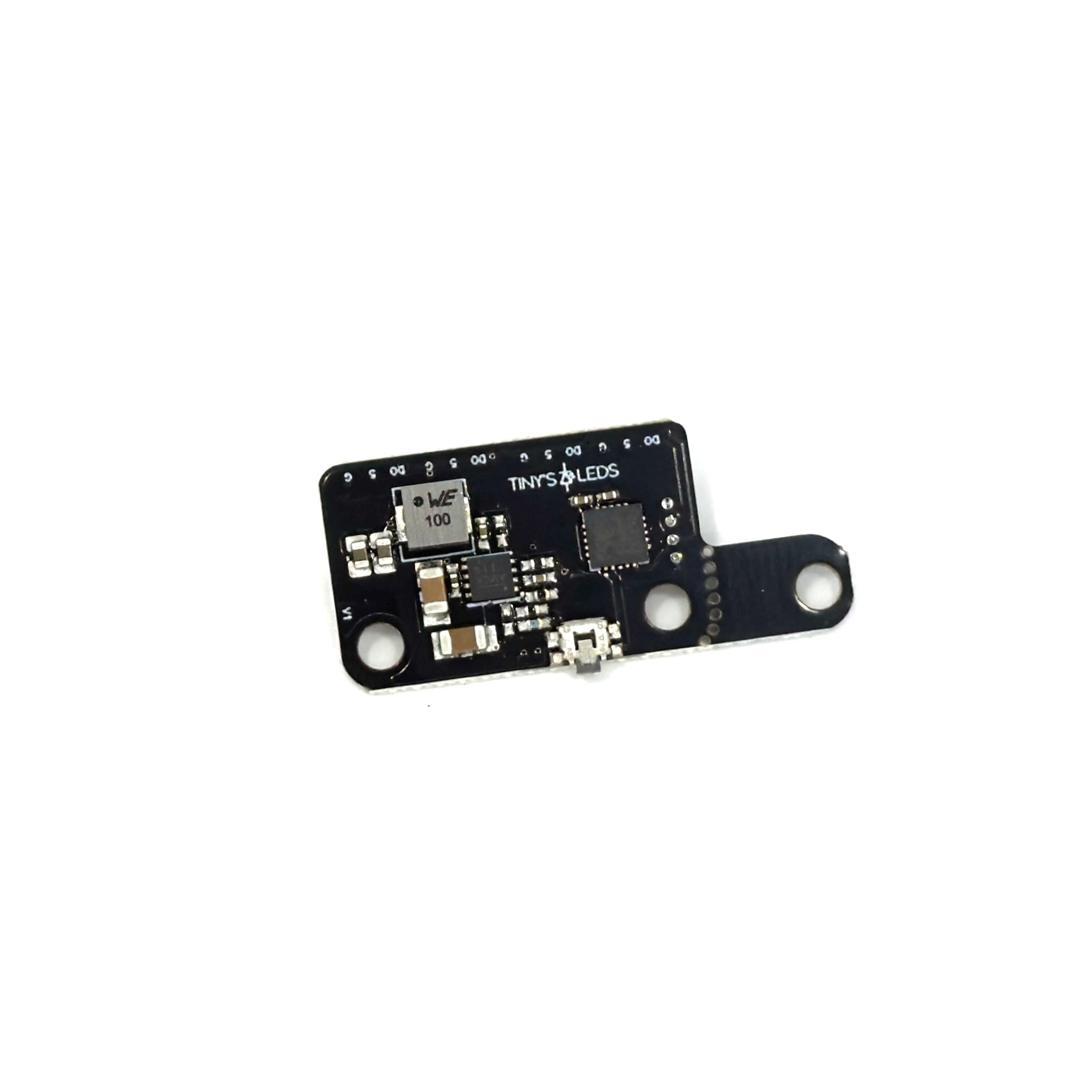

Built in 3 AMP 5v regulator to power your LEDs. 2-6s input.

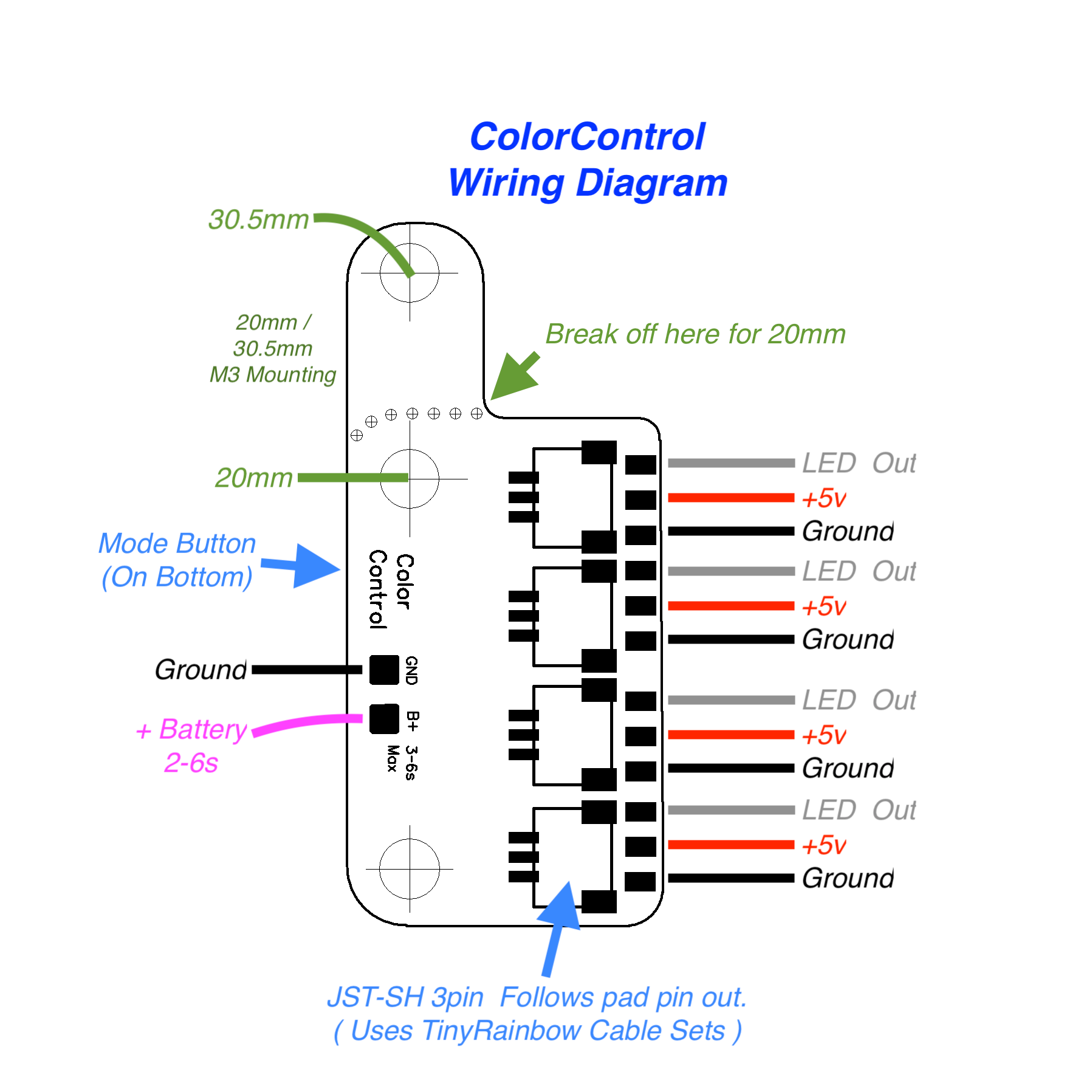

 Links to Wiring

Links to TinyRainbow LEDs or  Femto LEDs

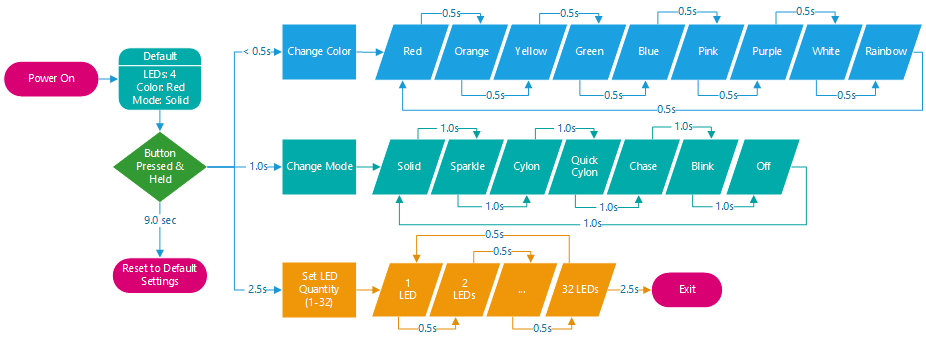

LEDs: 4 Color: Red Mode: Solid

Button Pressed & Held for 0.Xs:

0.5s - Red / Orange / Yellow / Green / Blue / Pink / Purple / White / Rainbow

1.0s - Solid / Sparkle / Cylon / Quick Cylon / Chase / Blink / Off

Set LED Quantity (1-32)

2.5s - Enter Set LED String length menu,

9.0s - Reset to Default Settings
