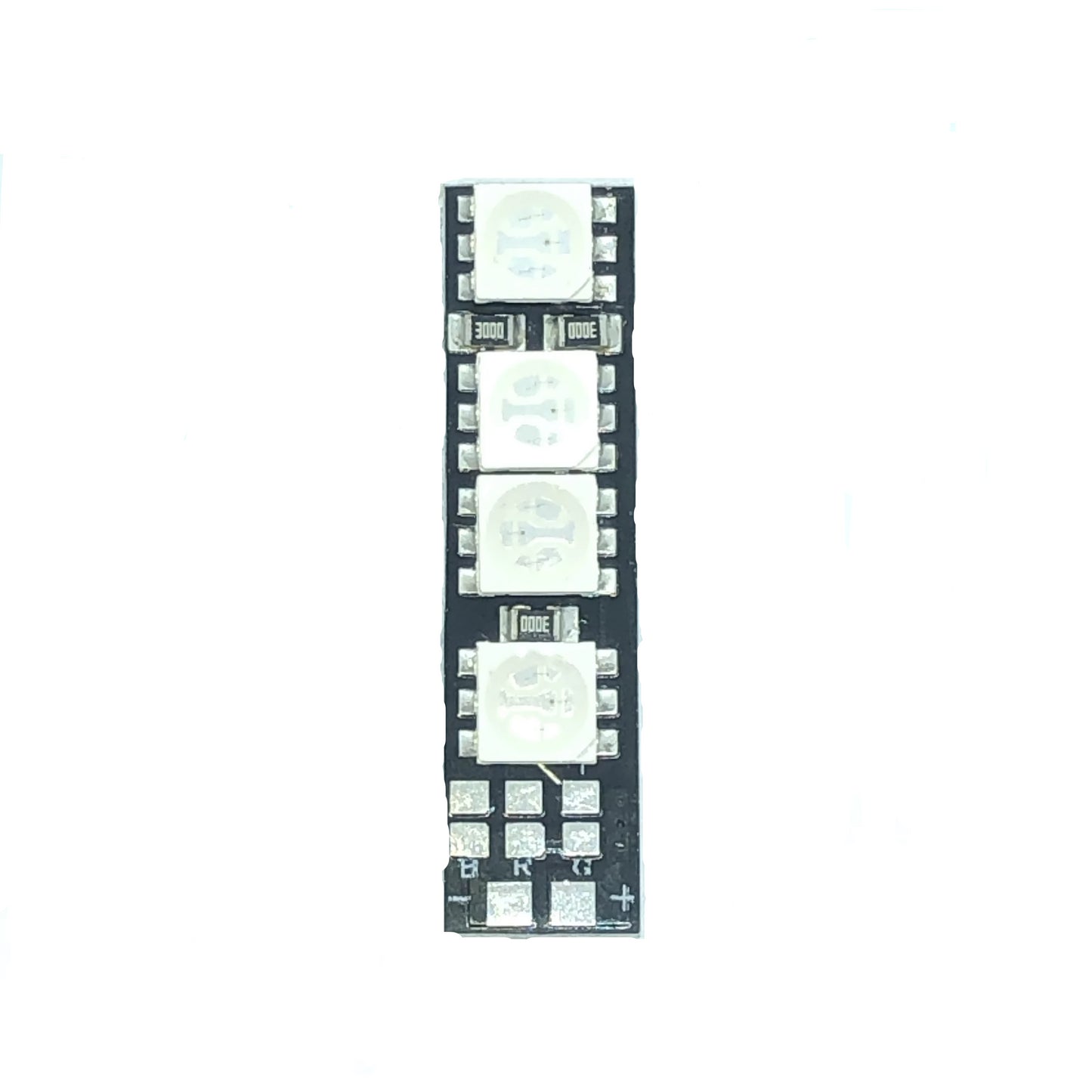

4s-6s RGB LED

This is the newest product from Tiny's LEDs. Inspired by the RMRC Solder bridge color changing LED. I needed one smaller to fit on my ultralight rigs. We dropped the length by 10mm and retained all function. it features 4x 5050 RGB LEDs and operates up to 6s direct Lipo voltages. Use these for DCL and other events that require addressable LEDs that you don't want to use FC 5 volt LEDs.

1x LED board Per order.

• 7 colors ( Red, Blue, Green, Yellow, Purple/Pink, Cyan, White)
• Dimensions: 8 x 30.5 mm
• Voltage: 4-6s (13-27v)

Color Breakout:

Not Soldered=  -

Soldered=  |

1. Yellow   - | |
2. White     | | |
3. Cyan.    | - |
4. Green    - - |
5. Blue     | - -
6. Red.      - | -
7. Pink/Purple  | | -

Warning: LEDs get extremely hot, be very careful when handling your quads with LEDs installed.
